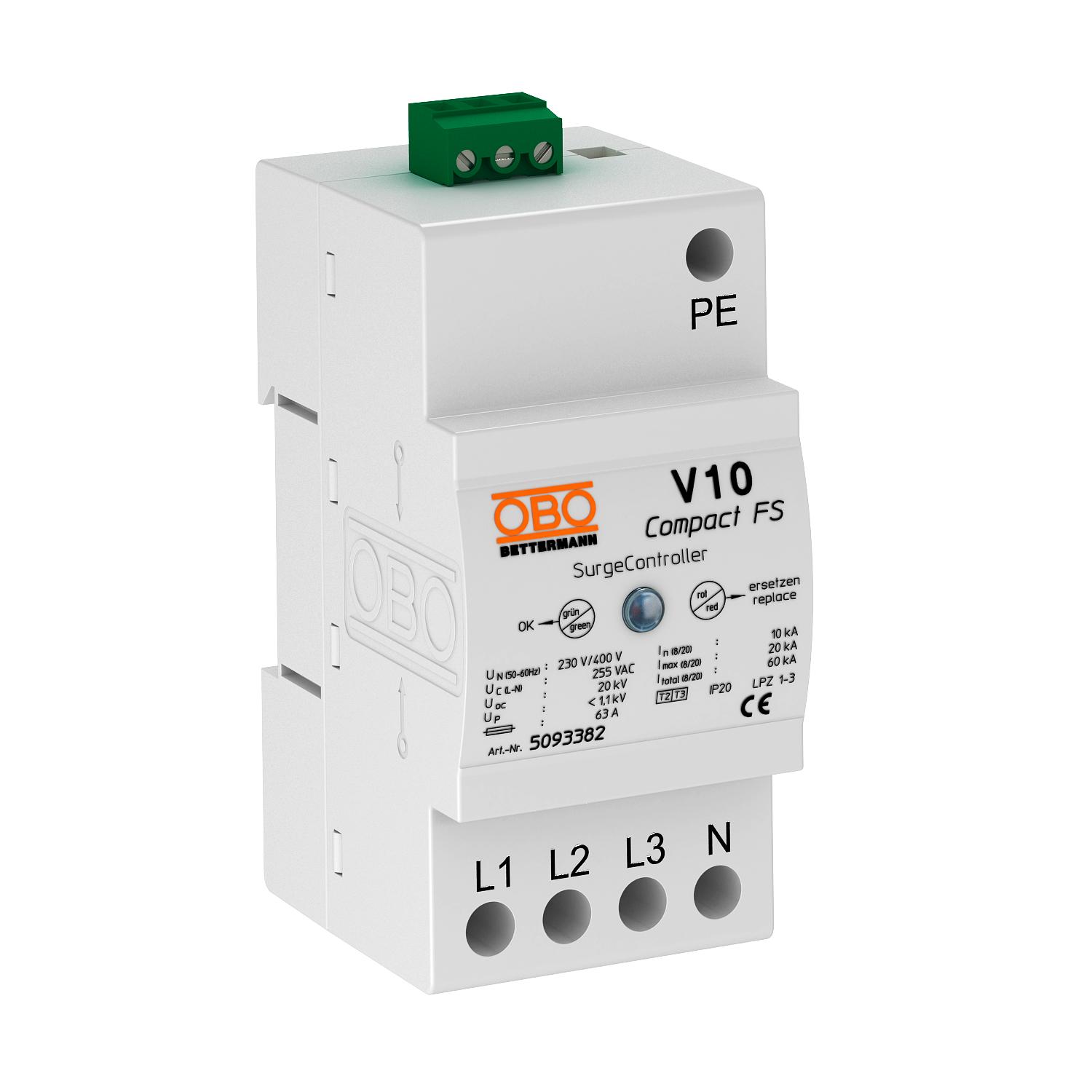

V10 COMPACT-FS Ogranicznik przepięć 4p, Typ 2+3 (kl. C+D)
Information | Value |
---|---|
Supplier | OBO Bettermann Polska Sp. z o.o. |
Symbol | 5093382 |
GTIN(EAN) | 4012196098583 |
Price unit | piece |
Catalog price | 1 090,11 zł (886,27 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Kompaktowy ogranicznik przepięć Typu 2+3
• Ochrona przeciwprzepięciowa w podrozdzielnicach zgodnie z VDE 0100-443 (IEC 60364-4-44)
• Wydajność rozładowania do 60 kA (8/20) łącznie
• Zintegrowane rozwiązanie 3+1 do systemów sieciowych TN i TT o szerokości modułu 45 mm
• wysokowydajna technologia warystorowa
• W tym termiczne i dynamiczne urządzenie odłączające oraz optyczna sygnalizacja uszkodzenia
• Wersja ...- FS z bezpotencjałowym stykiem przełącznym do zdalnej sygnalizacji
Zastosowanie: ochrona urządzeń systemów trójfazowych.
Additional features:
Information | Value |
---|---|
ETIM class: | Surge protection device for power supply systems |
System configuration TN: | yes |
System configuration TN-C-S: | yes |
System configuration TN-S: | yes |
System configuration TT: | yes |
Nominal discharge surge current (8/20): | 10 kA |
Max. discharge surge current (8/20): | 20 kA |
Nominal voltage AC: | 230 V |
Max. continuous voltage AC: | 255 V |
Voltage protection level: | 1.1 kV |
Integrated backup fuse: | no |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | Other |
Max. conductor cross section solid (solid, stranded): | 10 mm² |
Signalling at the device: | Optical |
Degree of protection (IP): | IP20 |
Category type 2: | yes |
