1802 8 CU Szyna wyrównania potencjału
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 5015836 |
| GTIN(EAN) | 4012195699347 |
| Price unit | piece |
| Catalog price | 545,85 zł (443,78 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

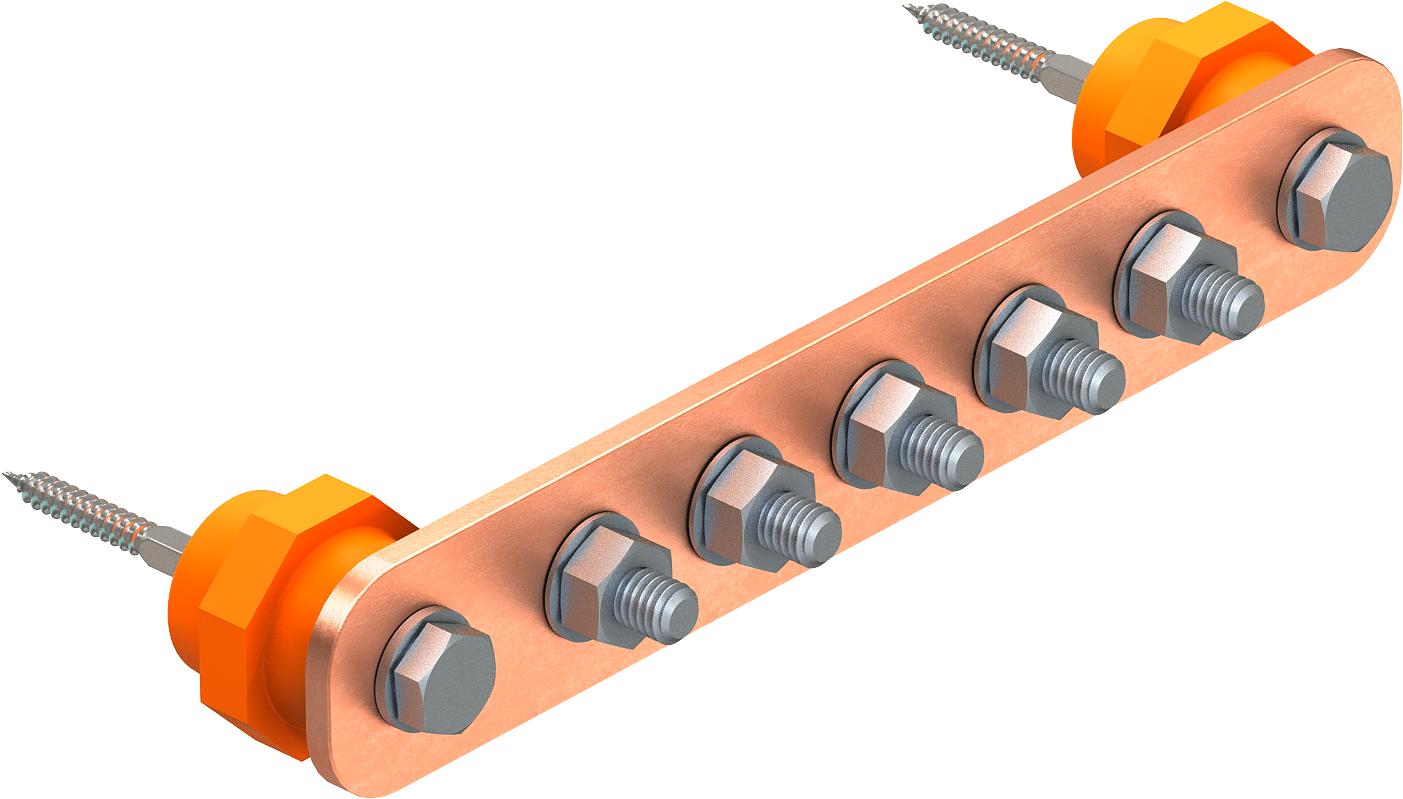

Szyna wyrównania potencjałów do wyrównania potencjałów zgodnie z DIN VDE 0100-410/-540 oraz odgromowego wyrównania potencjałów zgodnie z DIN VDE 0185-305 (IEC 62305)
• Stopki izolacyjne
• Szybka i łatwa instalacja linii połączeniowych za pomocą śrub M10
• W komplecie z kołkami i śrubami do montażu na ścianie
• z podkładką sprężystą (DIN 137) do zabezpieczania śrub przed samoczynnym poluzowaniem (wymagane np. w przemyśle i strefach Ex)
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Equipotential bonding bar |
| Construction type: | Surface mounting fix |
| Model: | Only clamp |
| Insulator: | yes |

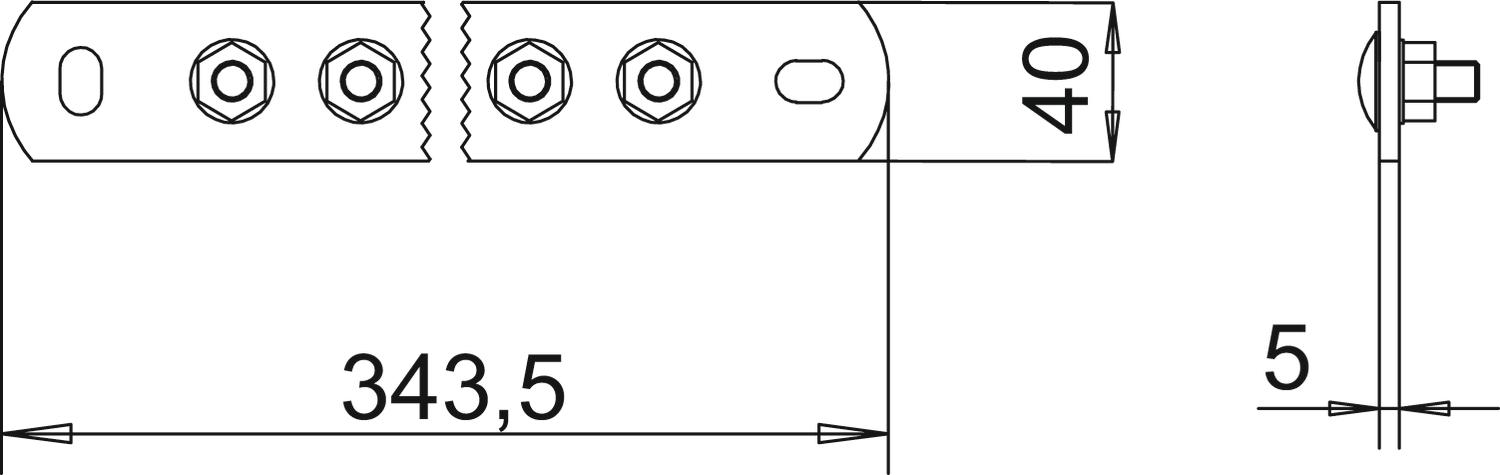

| Height: | 5 mm |
| Width: | 40 mm |
| Length: | 343.5 mm |
| Number of connections round conductor total: | 8 |
| Number of connections round conductor 8 mm: | 0 |
| Number of connections round conductor 10 mm: | 0 |
| Number of connections round conductor 8-10 mm: | 0 |
| Number of connections flat conductor 30 mm: | 0 |
| Number of connections flat conductor 40 mm: | 0 |
| Number of connections conductor to 6 mm² fixed: | 0 |
| Number of connections conductor to 16 mm² fixed: | 0 |
| Number of connections conductor to 25 mm² fixed: | 0 |
| Number of connections conductor to 95 mm² fixed: | 0 |
| Material of contact rail: | Copper |
| Material of clamp: | Copper |
