1804 UP Szyna wyrównania potencjału
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 5015545 |
| GTIN(EAN) | 4012195378433 |
| Price unit | piece |
| Catalog price | 159,14 zł (129,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

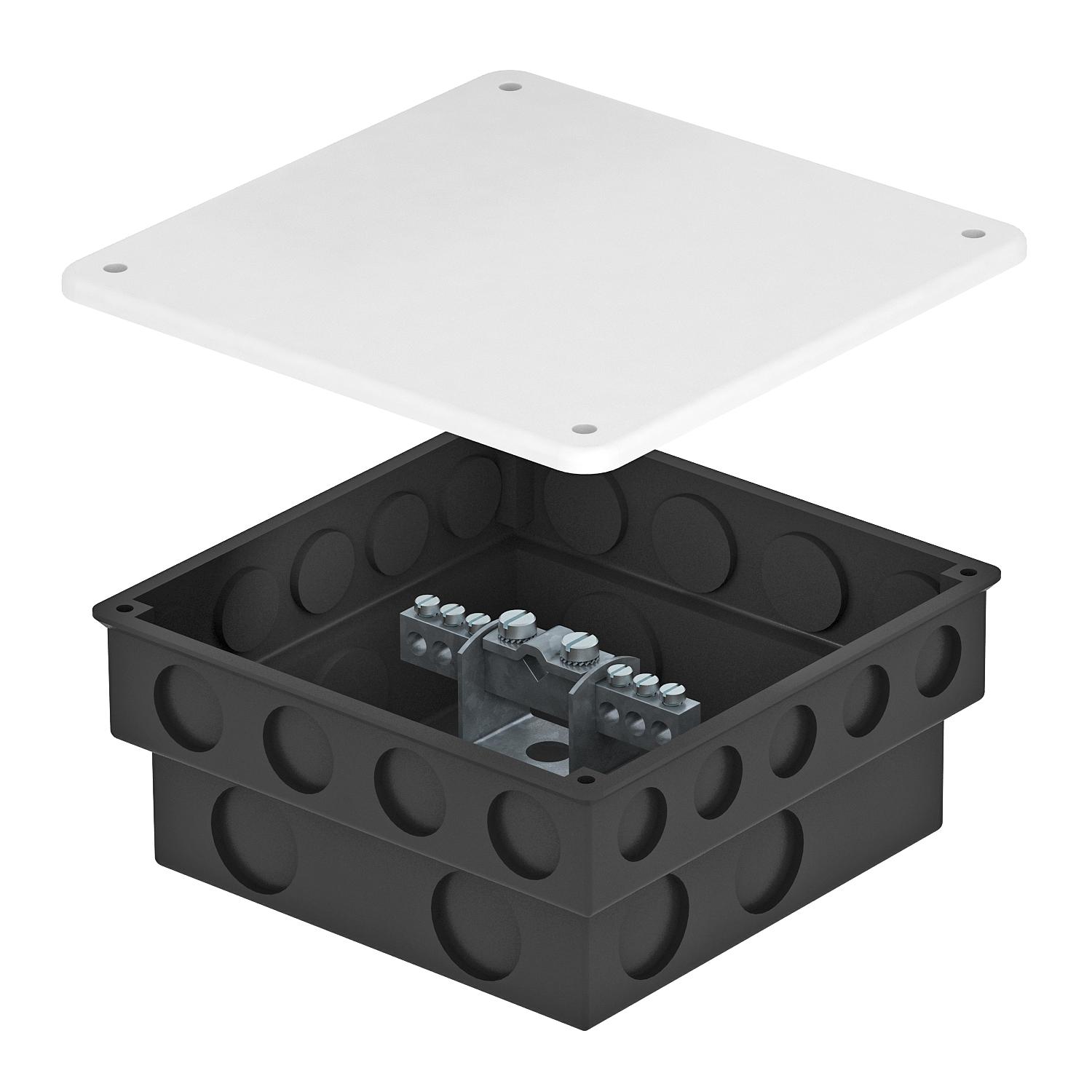

• Zamontowana szyna wyrównania potencjałów 1804 w puszce podtynkowej
• Puszka przyłączeniowa z przetłoczeniem do przewodów
Możliwości przyłączenia:
• 6 x przewód 1,5-10 mm²
• 1 x przewód 6-16 mm²
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Equipotential bonding bar |
| Construction type: | Surface mounting fix |
| Model: | In housing |
| Insulator: | yes |

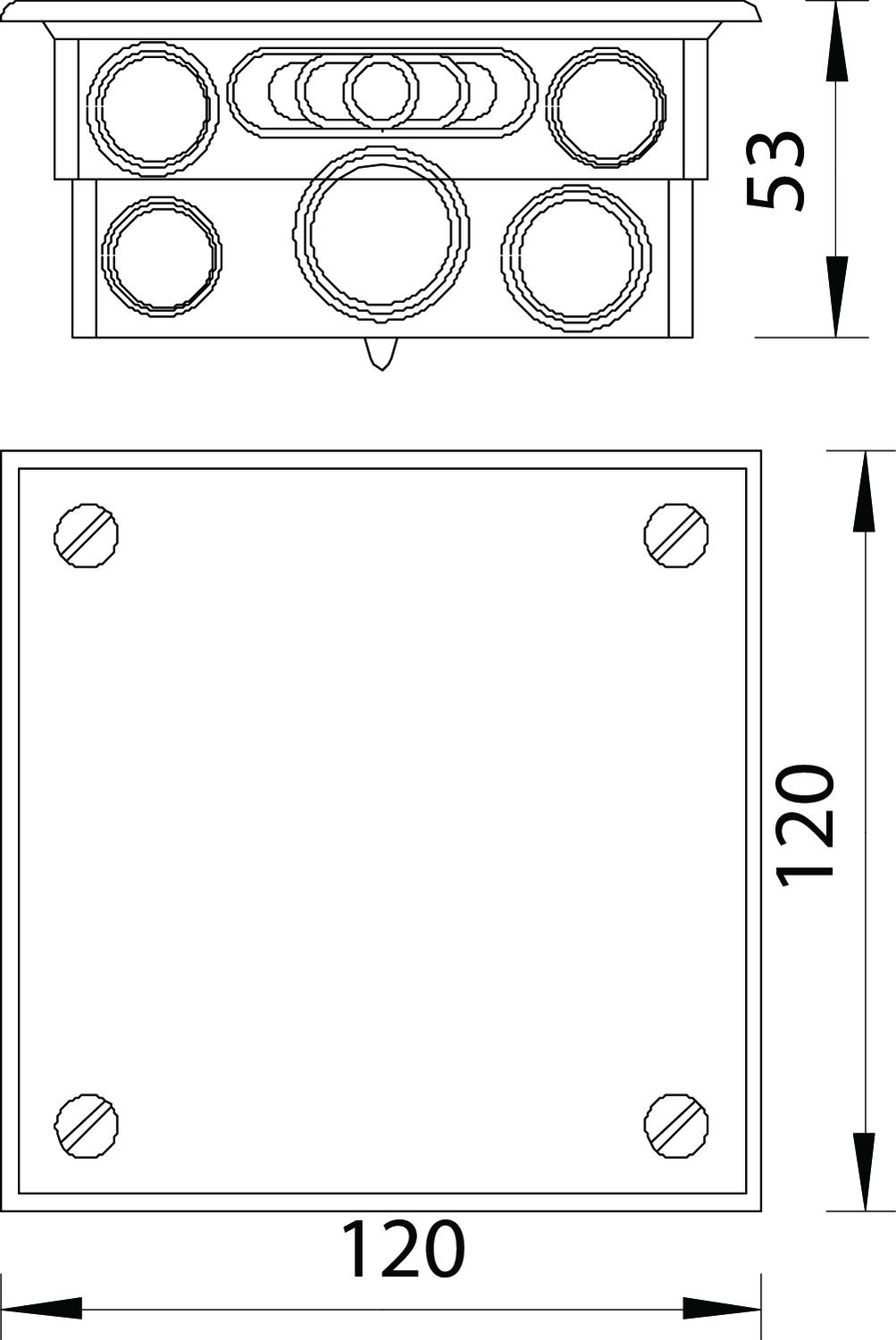

| Height: | 53 mm |
| Width: | 120 mm |
| Length: | 120 mm |
| Number of connections round conductor total: | 7 |
| Number of connections round conductor 8 mm: | 0 |
| Number of connections round conductor 10 mm: | 0 |
| Number of connections round conductor 8-10 mm: | 1 |
| Number of connections flat conductor 30 mm: | 1 |
| Number of connections flat conductor 40 mm: | 0 |
| Number of connections conductor to 6 mm² fixed: | 0 |
| Number of connections conductor to 16 mm² fixed: | 7 |
| Number of connections conductor to 25 mm² fixed: | 0 |
| Number of connections conductor to 95 mm² fixed: | 0 |
| Material of contact rail: | Brass |
| Surface of the contact rail: | Nickel-plated |
| Material of clamp: | Steel |
| Surface of the clamp: | Galvanic/electrolytic zinc plated |
