1809 BG Szyna wyrównania potencjału
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 5015502 |
| GTIN(EAN) | 4012195378372 |
| Price unit | piece |
| Catalog price | 63,75 zł (51,83 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.

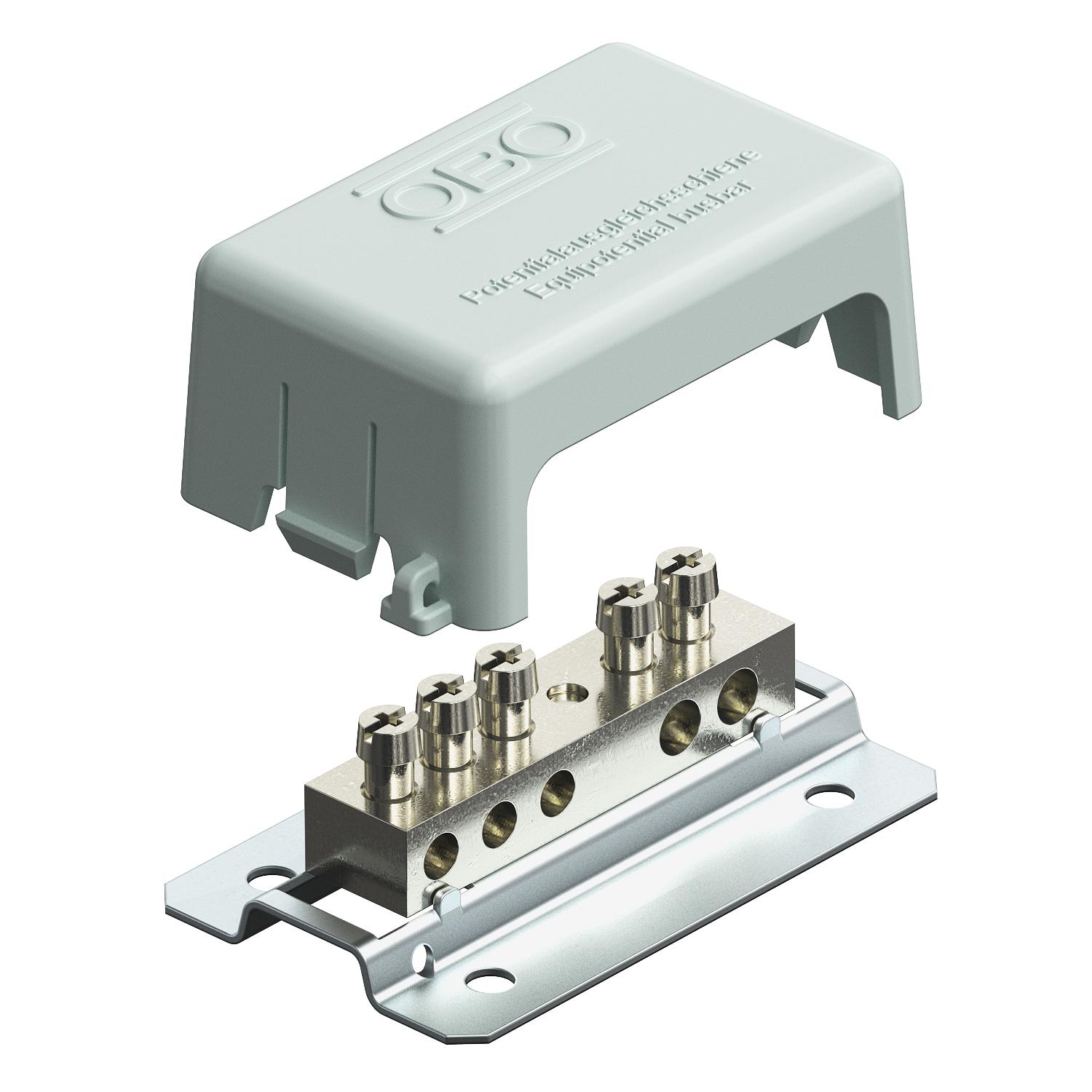

Description:
• Pokrywa z polistyrenu, szara
• Pokrywa może być zaplombowana/oznaczona
• Płyta podstawy wykonana ze stali, ocynkowana
• Listwa stykowa i śruby wykonane z mosiądzu, niklowane
Opcje połączenia:
• 3 przewody linkowe do 6 mm²
• 2 przewody linkowe do 16 mm²
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Equipotential bonding bar |
| Construction type: | Surface mounting fix |
| Model: | With covering cap |
| Insulator: | no |

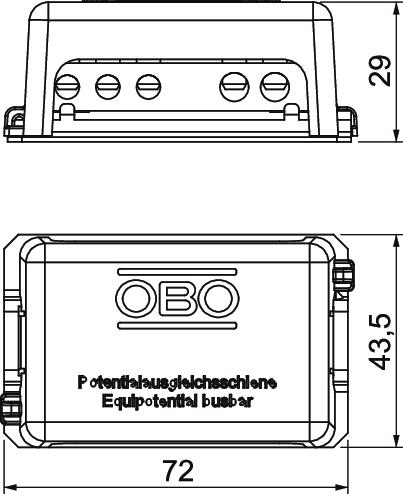

| Height: | 29 mm |
| Width: | 43.5 mm |
| Length: | 72 mm |
| Number of connections round conductor total: | 0 |
| Number of connections round conductor 8 mm: | 0 |
| Number of connections round conductor 10 mm: | 0 |
| Number of connections round conductor 8-10 mm: | 0 |
| Number of connections flat conductor 30 mm: | 0 |
| Number of connections flat conductor 40 mm: | 0 |
| Number of connections conductor to 6 mm² fixed: | 3 |
| Number of connections conductor to 16 mm² fixed: | 2 |
| Number of connections conductor to 25 mm² fixed: | 0 |
| Number of connections conductor to 95 mm² fixed: | 0 |
| Material of contact rail: | Brass |
| Surface of the contact rail: | Nickel-plated |
| Material of clamp: | Brass |
| Surface of the clamp: | Nickel-plated |
