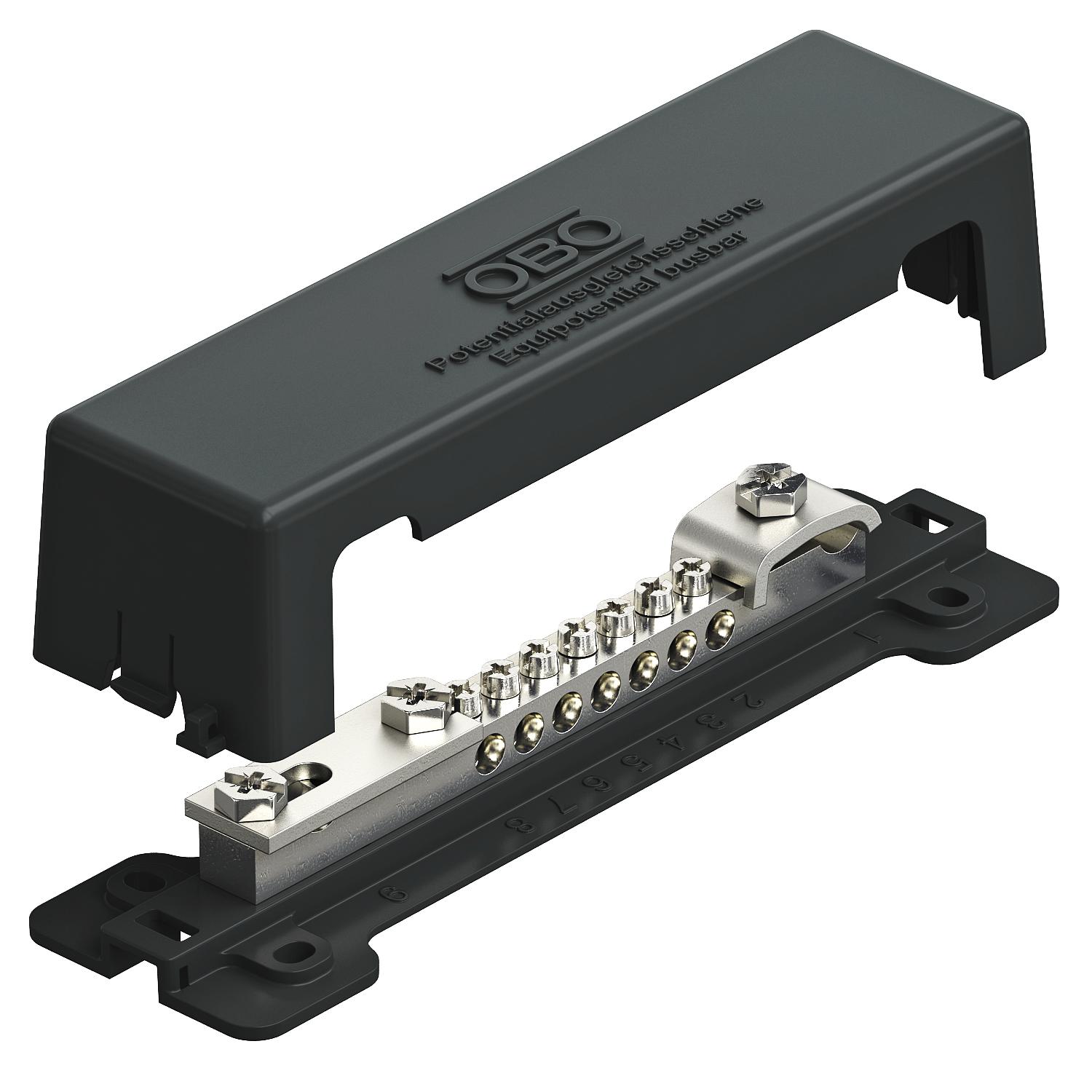

1809 A Szyna wyrównania potencjału
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 5015111 |
| GTIN(EAN) | 4012195959427 |
| Price unit | piece |
| Catalog price | 83,96 zł (68,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Szyna wyrównania potencjałów do wyrównania potencjałów zgodnie z DIN VDE 0100-410 / -540 i odgromowego wyrównania potencjałów zgodnie z DIN VDE 0185-305
• Polistyrenowa pokrywa i płyta podstawy
• Kolor: czarny, odporny na promieniowanie UV
• Śruby i wsporniki wykonane z VA
• Prąd piorunowy 50 kA (10/350)
Możliwość podłączenia:
• 7 przewodów jedno- lub wielożyłowych do 25 mm² lub cienkodrutowych do 16 mm²
• 1 przewód okrągły Rd 8-10
• 1 płaskownik do FL 30 lub przewód okrągły Rd 8-10
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Equipotential bonding bar |
| Construction type: | Surface mounting fix |
| Model: | With covering cap |
| Insulator: | yes |

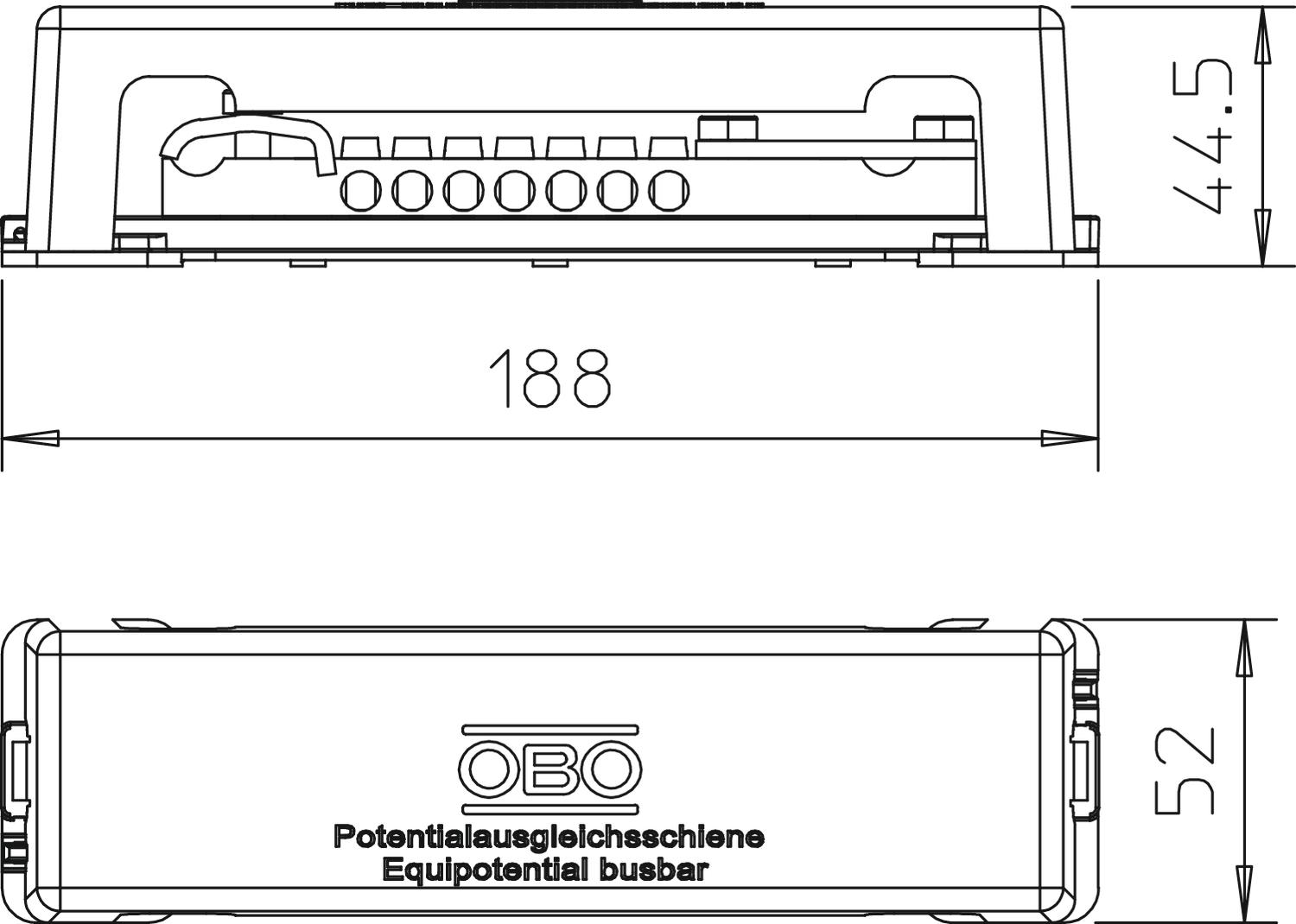

| Height: | 44.5 mm |
| Width: | 52 mm |
| Length: | 188 mm |
| Number of connections round conductor total: | 1 |
| Number of connections round conductor 8 mm: | 0 |
| Number of connections round conductor 10 mm: | 0 |
| Number of connections round conductor 8-10 mm: | 1 |
| Number of connections flat conductor 30 mm: | 1 |
| Number of connections flat conductor 40 mm: | 0 |
| Number of connections conductor to 6 mm² fixed: | 0 |
| Number of connections conductor to 16 mm² fixed: | 0 |
| Number of connections conductor to 25 mm² fixed: | 7 |
| Number of connections conductor to 95 mm² fixed: | 0 |
| Material of contact rail: | Brass |
| Surface of the contact rail: | Nickel-plated |
| Material of clamp: | Steel |
| Surface of the clamp: | Galvanic/electrolytic zinc plated |
