1810 Szyna wyrównania potencjału
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 5015057 |
| GTIN(EAN) | 4012195378136 |
| Price unit | piece |
| Catalog price | 390,06 zł (317,12 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.

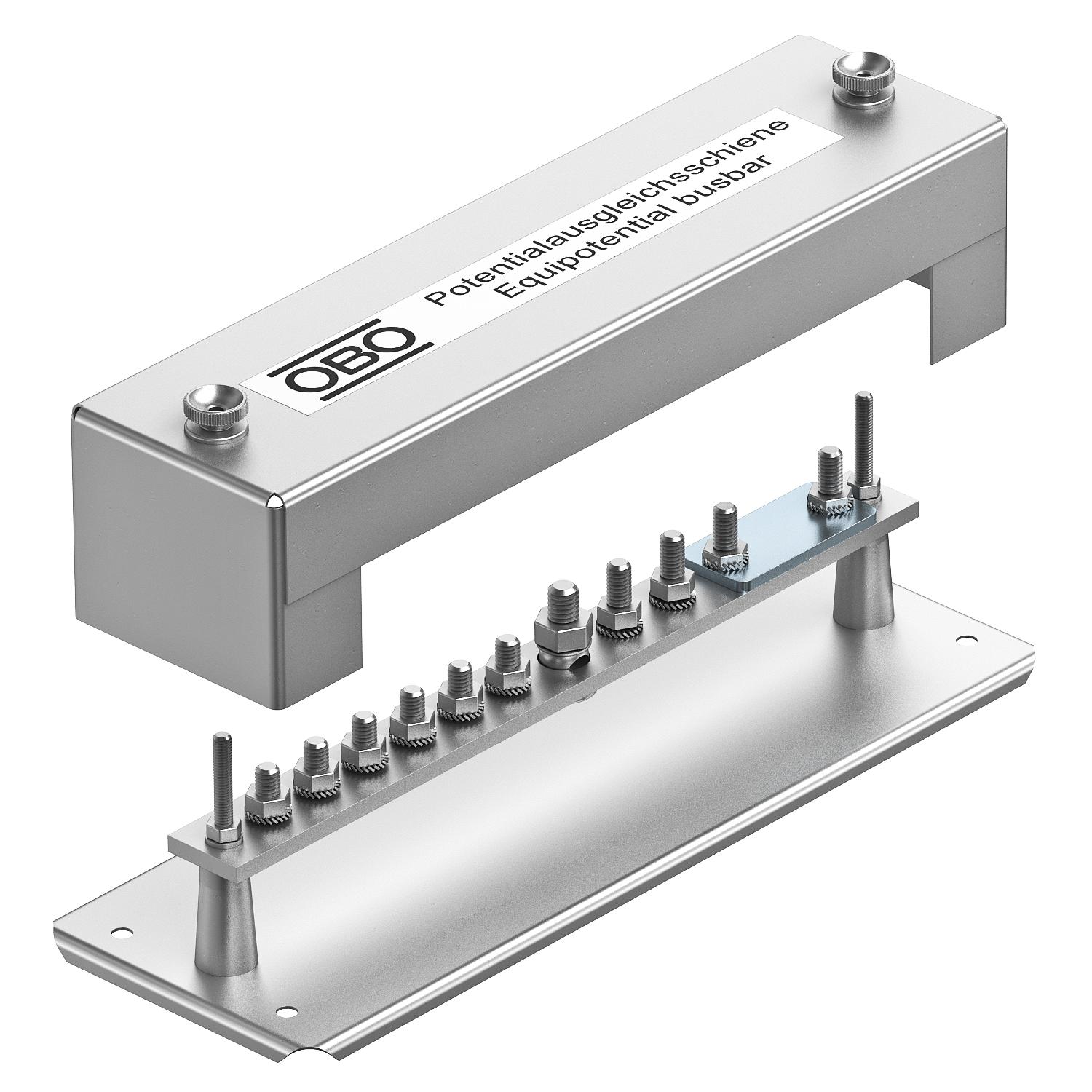

Description:
• Płyta podstawy i przykręcana pokrywa wykonane ze stali, ocynkowane ogniowo
• Pokrywa może być zaplombowana/oznaczona
• Listwa stykowa wykonana ze stali, ocynkowana
• Śruby i uchwyty wykonane ze stali, ocynkowane ogniowo lub galwanicznie
Możliwość podłączenia:
• 6 przewodów 6-16 mm²
• 1 przewód okrągły Rd 8-10
• 1 płaskownik do FL 40
• 2 końcówki kablowe M8
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Equipotential bonding bar |
| Construction type: | Surface mounting fix |
| Model: | With covering cap |
| Insulator: | no |

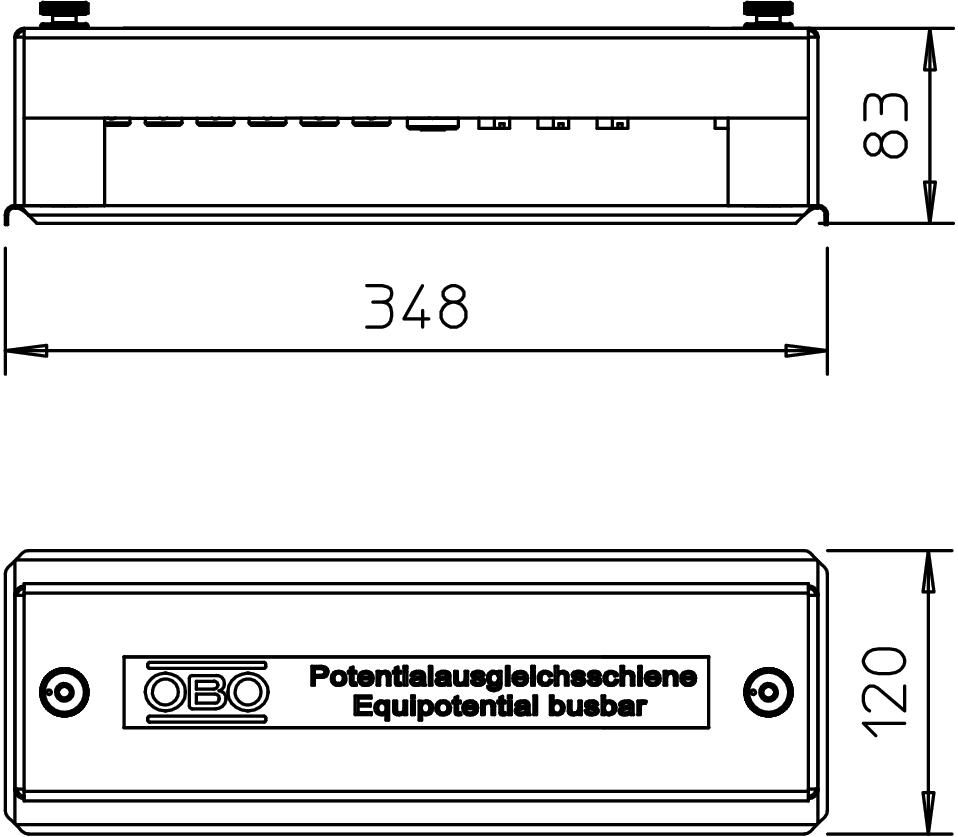

| Height: | 83 mm |
| Width: | 120 mm |
| Length: | 348 mm |
| Number of connections round conductor total: | 1 |
| Number of connections round conductor 8 mm: | 0 |
| Number of connections round conductor 10 mm: | 0 |
| Number of connections round conductor 8-10 mm: | 1 |
| Number of connections flat conductor 30 mm: | 0 |
| Number of connections flat conductor 40 mm: | 1 |
| Number of connections conductor to 6 mm² fixed: | 0 |
| Number of connections conductor to 16 mm² fixed: | 6 |
| Number of connections conductor to 25 mm² fixed: | 0 |
| Number of connections conductor to 95 mm² fixed: | 0 |
| Material of contact rail: | Brass |
| Surface of the contact rail: | Nickel-plated |
| Material of clamp: | Steel |
| Surface of the clamp: | Galvanic/electrolytic zinc plated |
