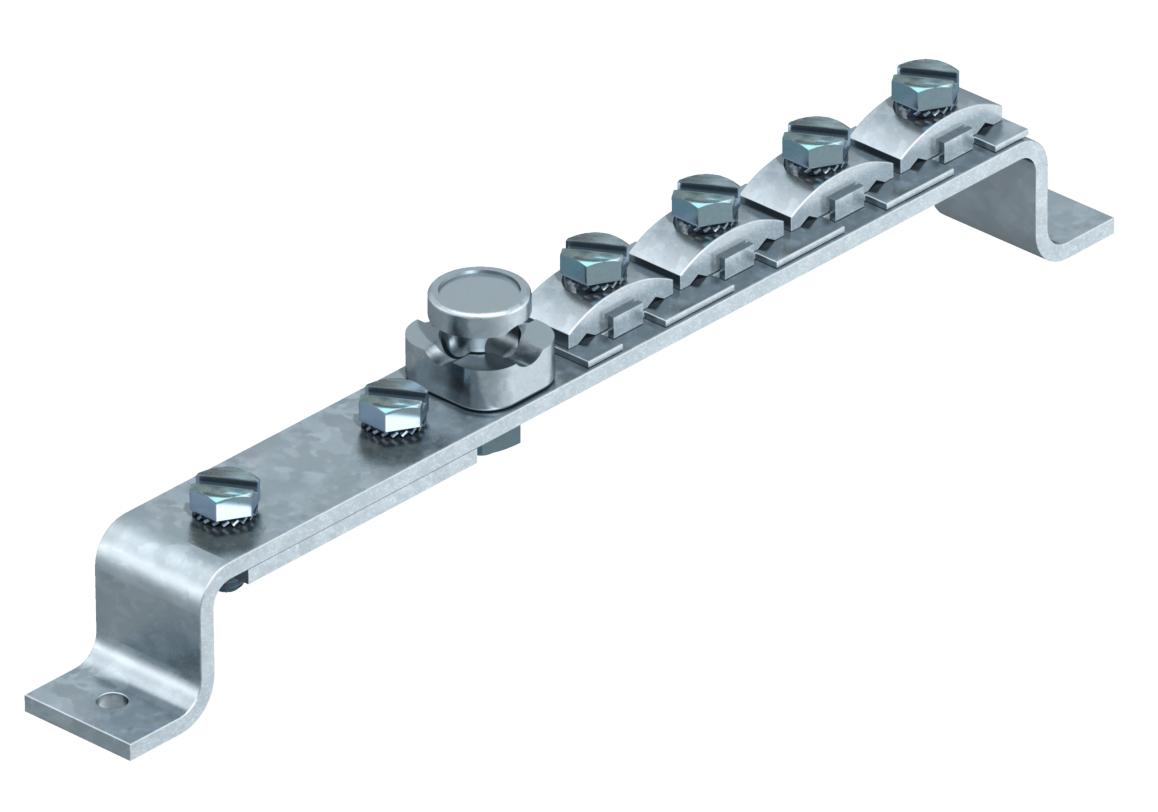

1808 Szyna wyrównania potencjału
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 5015014 |
| GTIN(EAN) | 4012195378075 |
| Price unit | piece |
| Catalog price | 179,57 zł (145,99 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
• Kabłąk i nakładka ze stali, cynkowanej galwanicznie
• Elementy zaciskowe i listwa zaciskowa z mosiądzu, śruby ze stali, cynkowanej galwanicznie
Możliwości przyłączenia:
• 8 x przewód do 25 mm²
• 1 x przewód okrągły Rd 8-10
• 1 x przewód płaski do FL 40
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Equipotential bonding bar |
| Construction type: | Surface mounting fix |
| Model: | Without covering cap |
| Insulator: | no |

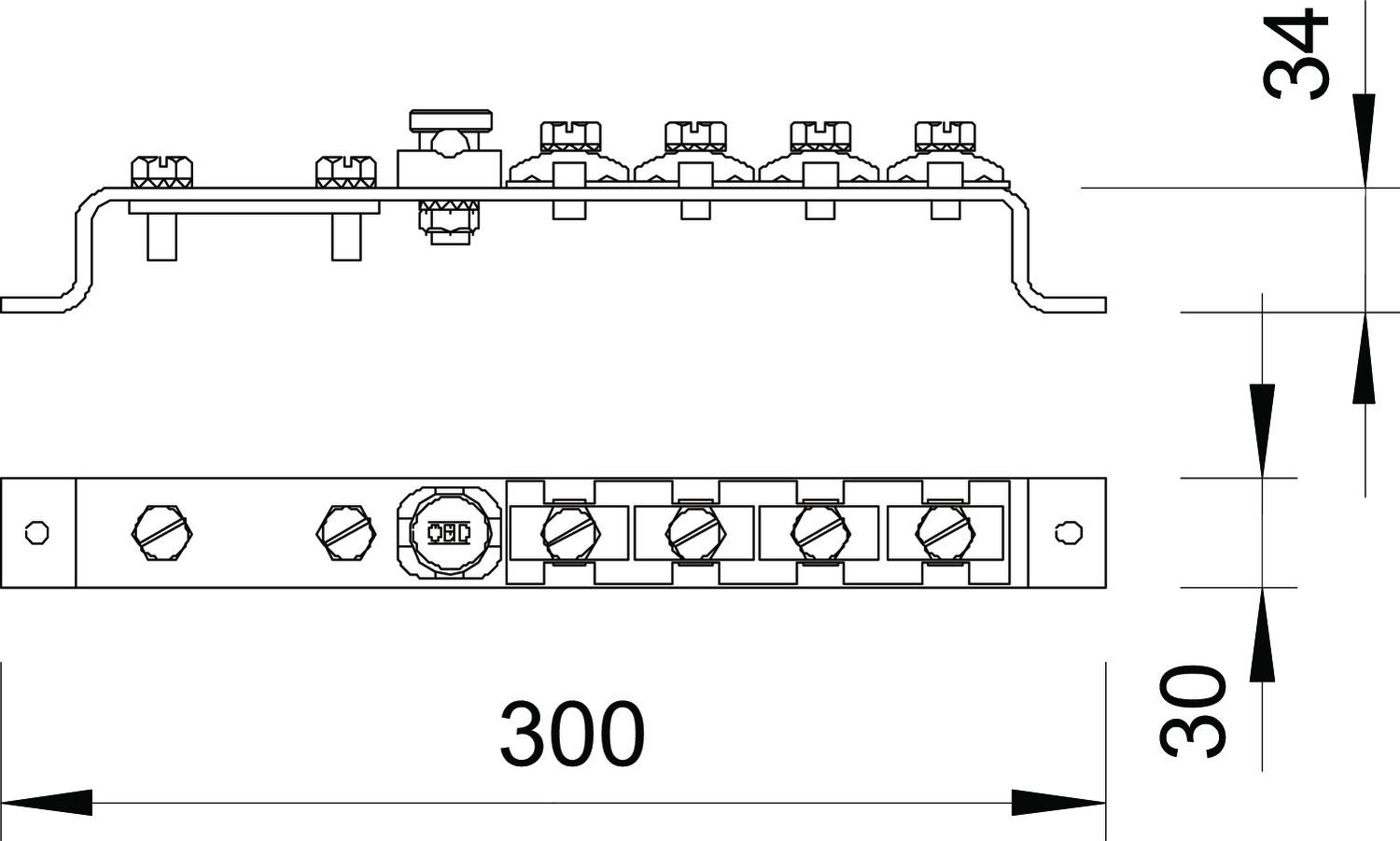

| Height: | 34 mm |
| Width: | 30 mm |
| Length: | 300 mm |
| Number of connections round conductor total: | 1 |
| Number of connections round conductor 8 mm: | 0 |
| Number of connections round conductor 10 mm: | 0 |
| Number of connections round conductor 8-10 mm: | 1 |
| Number of connections flat conductor 30 mm: | 0 |
| Number of connections flat conductor 40 mm: | 1 |
| Number of connections conductor to 6 mm² fixed: | 0 |
| Number of connections conductor to 16 mm² fixed: | 0 |
| Number of connections conductor to 25 mm² fixed: | 8 |
| Number of connections conductor to 95 mm² fixed: | 0 |
| Material of contact rail: | Brass |
| Surface of the contact rail: | Nickel-plated |
| Material of clamp: | Brass |
| Surface of the clamp: | Nickel-plated |
