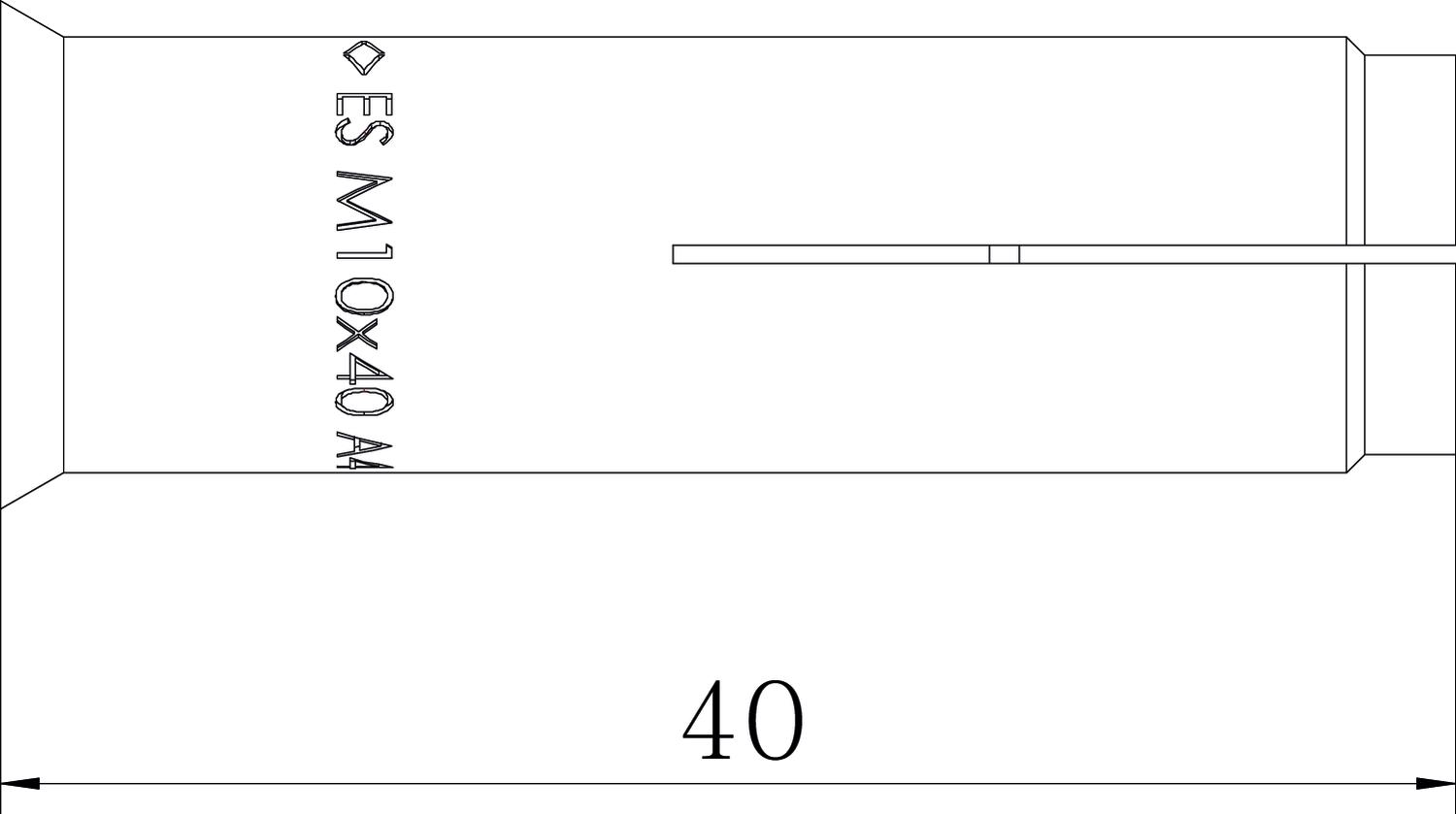

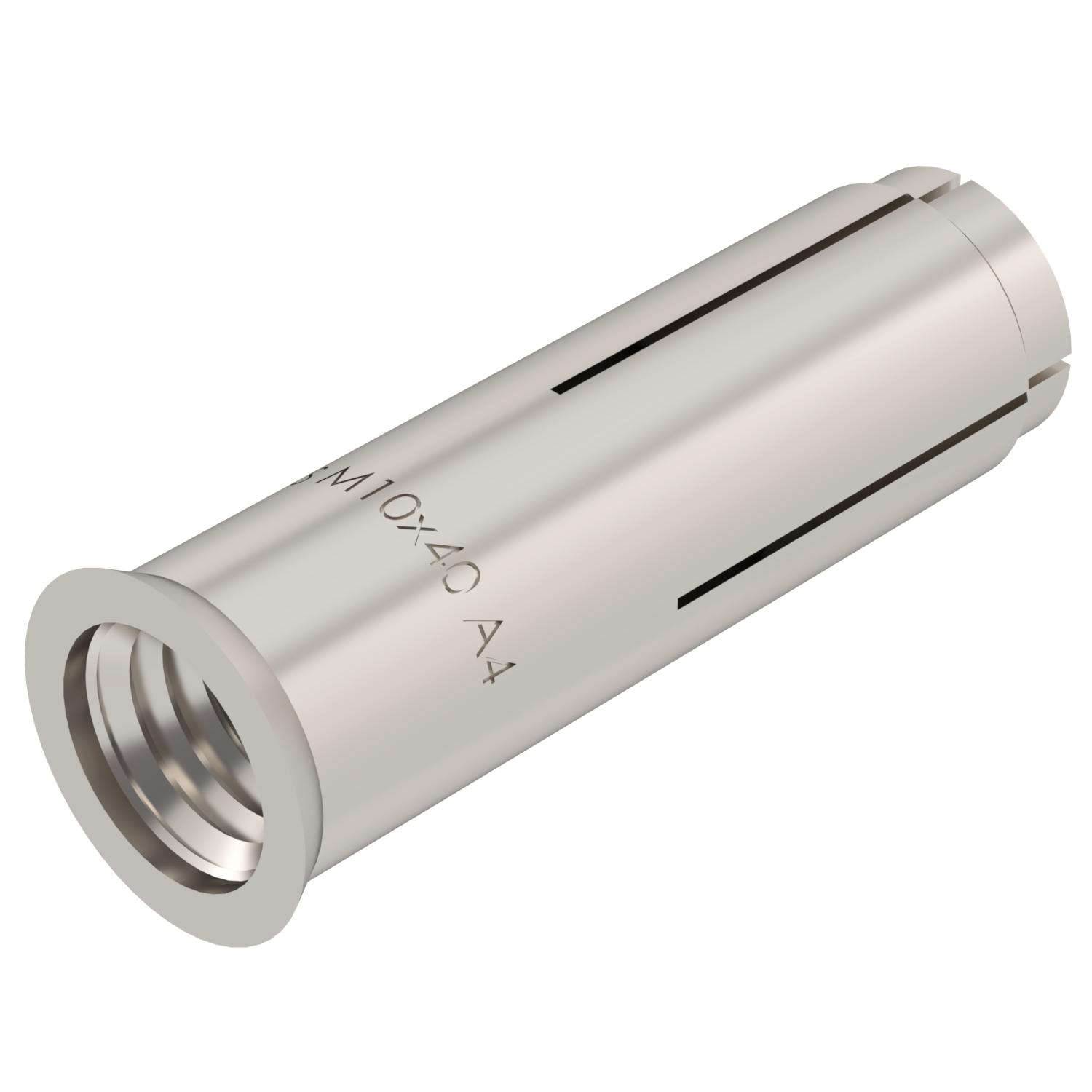

ES M 10x40 A4 Kołek z gwintem wewn.
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 3492008 |
| GTIN(EAN) | 4012196709564 |
| Price unit | piece |
| Catalog price | 50,16 zł (40,78 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Kotwa wbijana do pojedynczego mocowania systemów nienośnych w betonie niespękanym oraz do wielokrotnego mocowania w betonie zarysowanym i niezarysowanym.
Testowane pod kątem ochrony przeciwpożarowej, klasa odporności ogniowej R 120 zgodnie z Europejską Aprobatą Techniczną ETA-02/0020 (opcja 7) i Europejską Aprobatą Techniczną ETA-05/0116.
Montaż z narzędziami do znakowania i pobijania.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Hammer set anchor |
| Fastening provision: | Other |
| Material sleeve: | Stainless steel |
| Thread size (metric): | 10 |
| Drill hole diameter: | 12 mm |
| Length: | 40 mm |
| Min. drill hole depth: | 40 mm |
| With approval: | yes |
| Self boring: | no |
| Push-through installation: | no |
| Pre-positioned installation: | yes |
| Spaced installation: | no |
| Suitable for concrete: | yes |
| Suitable for natural stone: | no |
| App. load pull zone: | 2 kN |
