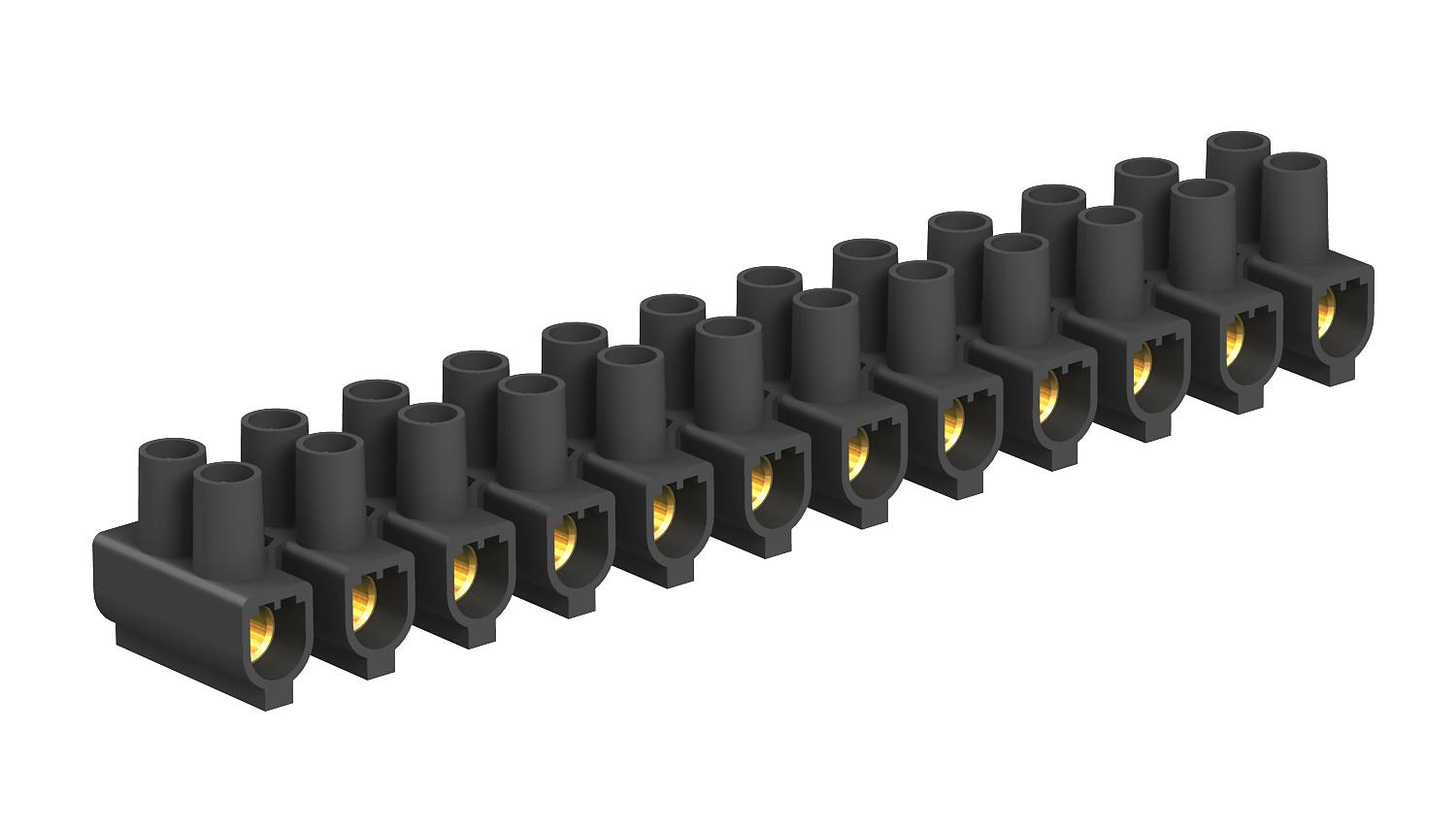

79 CE SW/EKL 4BE Złączka zaciskowa 12-torowa 25mm2
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2056585 |
| GTIN(EAN) | 4012195879558 |
| Price unit | piece |
| Catalog price | 44,35 zł (36,06 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Badane wg normy EN 60998.
Zaciski mosiężne, śruby stalowe, ocynkowane galwanicznie i pasywowane przezroczyście, 12-biegunowa, listwy dzielone na pojedyncze zaciski.
Śruby wysoko odkręcone, zabezpieczone przed zgubieniem.Maks. dopuszczalna temperatura otoczenia według normy EN 60998: -5 do +80 °C.
Przekrój znamionowy 25 - mm²
Napięcie znamionowe 750 V
Prąd znamionowy 101 A
Maks. dopuszczalne przekroje przewodów po jednej stronie: 25 mm² wielożyłowy lub 16 mm² linka bez tulejki kablowej.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Single- and multi-pole terminal strip |
| Drill hole distance centrically: | 16 mm |
| Connectable conductor cross section fine-strand without cable end sleeve: | 16 - 16 mm² |
| Connectable conductor cross section multi-wired: | 25 - 25 mm² |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Number of poles: | 12 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | Direct mounting |
| Operating temperature: | -5 - 80 °C |

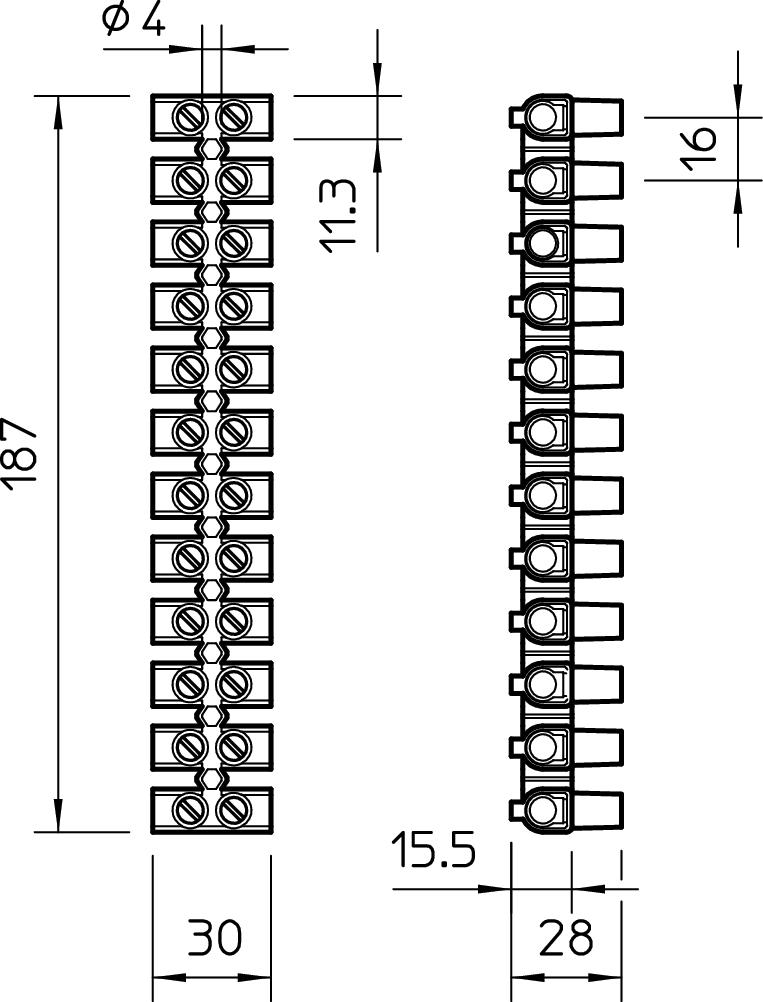

| Width: | 30 mm |
| Height: | 28 mm |
| Closing plate required: | no |
| Colour: | Black |
| Transparent: | no |
| Rated current In: | 101 A |
| Rated voltage: | 750 V |
| Depth: | 187 mm |
