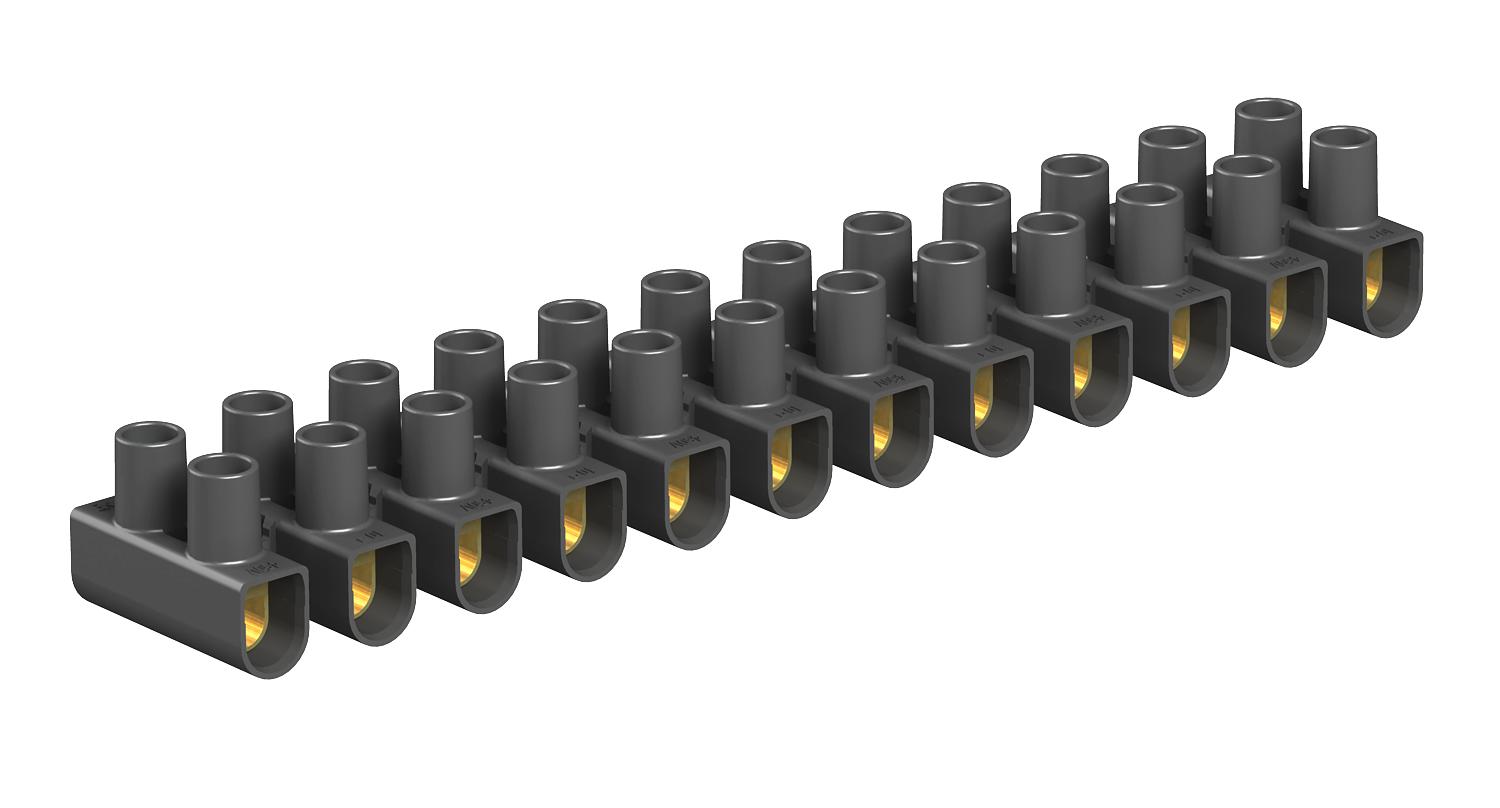

76 CE SW/EKL 2 S Złączka zaciskowa 12-torowa 10mm2
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2056380 |
| GTIN(EAN) | 4012195879374 |
| Price unit | piece |
| Catalog price | 10,52 zł (8,55 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Badane wg normy EN 60998.
Zaciski stalowe, śruby stalowe, ocynkowane galwanicznie, 12-biegunowa, listwy dzielone na pojedyncze zaciski przez przekręcenie i oderwanie.
Śruby wysoko odkręcone, zabezpieczone przed zgubieniem.
Maks. dopuszczalna temperatura otoczenia według normy EN 60998: -5 do +80 °C.
Przekrój znamionowy 10 - mm²
Napięcie znamionowe 450 V
Prąd znamionowy 57 A
Maks. dopuszczalne przekroje przewodów po jednej stronie: 10 mm² drut lub 6 mm² linka bez tulejki kablowej.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Single- and multi-pole terminal strip |

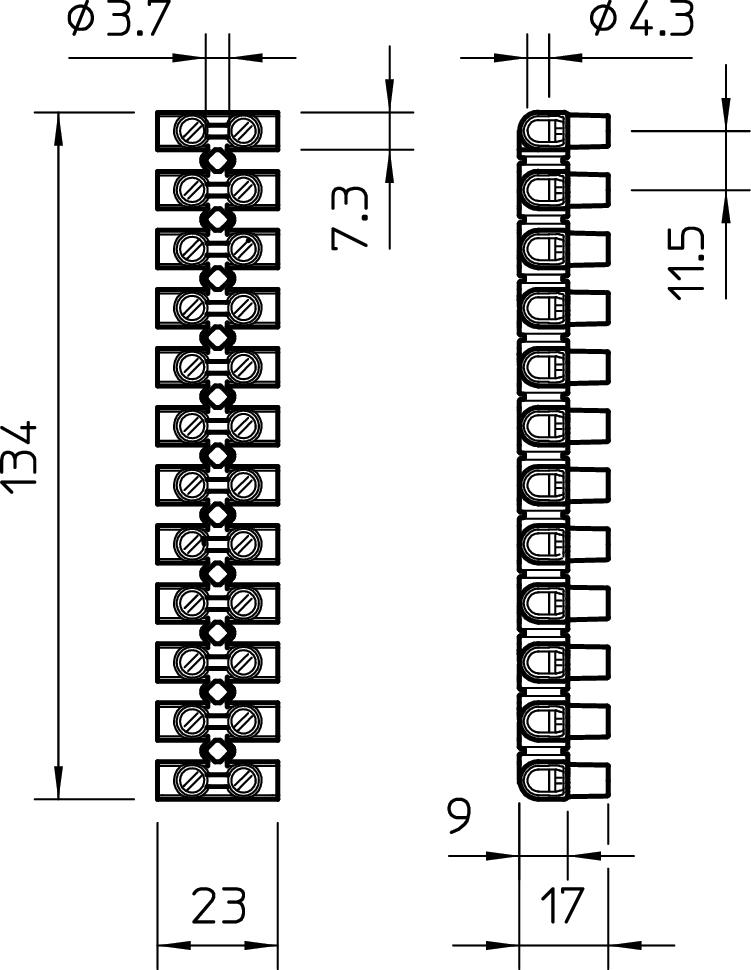

| Drill hole distance centrically: | 11.5 mm |
| Connectable conductor cross section fine-strand without cable end sleeve: | 2.5 - 6 mm² |
| Connectable conductor cross section solid-core: | 2.5 - 10 mm² |
| Connectable conductor cross section multi-wired: | 2.5 - 6 mm² |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Number of poles: | 12 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | Direct mounting |
| Operating temperature: | -5 - 80 °C |
| Width: | 23 mm |
| Height: | 17 mm |
| Closing plate required: | no |
| Colour: | Black |
| Transparent: | no |
| Rated current In: | 57 A |
| Rated voltage: | 450 V |
| Depth: | 134 mm |
