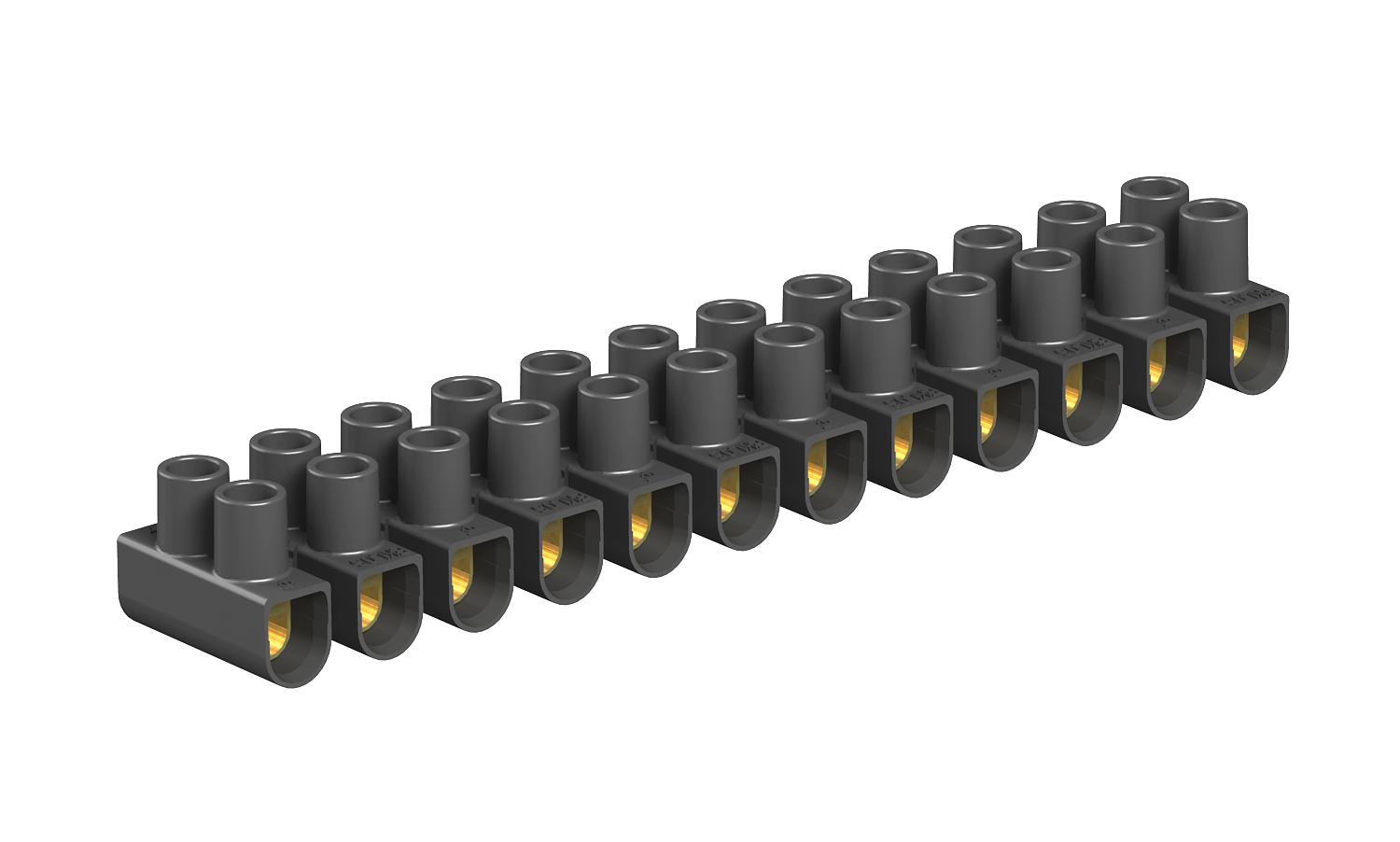

72 CE SW/EKL 0 S Złączka zaciskowa 12-torowa 4mm2
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2056089 |
| GTIN(EAN) | 4012195879251 |
| Price unit | piece |
| Catalog price | 6,20 zł (5,04 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Atestowany zgodnie z normą EN 60998.
Stalowe zaciski, stalowe śruby, ocynkowane, 12-biegunowe zaciski, które można rozdzielić na pojedyncze.
Śruby wysoko wykręcane, bez możliwości zgubienia.
Maksymalna dopuszczalna temperatura otoczenia zgodnie z EN 60998: -5 do +80 ° C.
Przekrój znamionowy 4 mm²
Napięcie znamionowe 450 V
Prąd znamionowy 32 A
Maks. dopuszczalne przekroje przewodów po jednej stronie: 4 mm² drut lub 2,5 mm² linka bez tulejki kablowej.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Single- and multi-pole terminal strip |

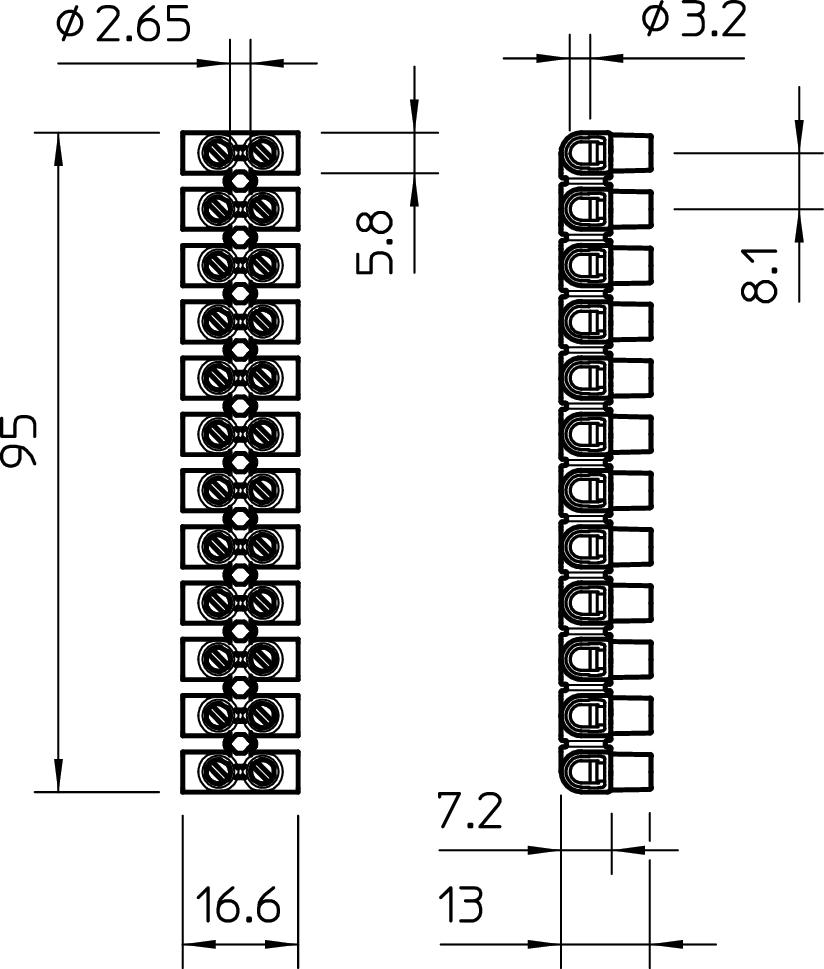

| Drill hole distance centrically: | 8.1 mm |
| Connectable conductor cross section fine-strand without cable end sleeve: | 1 - 4 mm² |
| Connectable conductor cross section solid-core: | 1 - 4 mm² |
| Connectable conductor cross section multi-wired: | 1 - 4 mm² |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Number of poles: | 12 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | Direct mounting |
| Operating temperature: | -5 - 80 °C |
| Width: | 16.6 mm |
| Height: | 13 mm |
| Closing plate required: | no |
| Colour: | Black |
| Transparent: | no |
| Rated current In: | 32 A |
| Rated voltage: | 450 V |
| Depth: | 95 mm |
