70 VDE Zacisk rozgałęźny Dolü
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2055023 |
| GTIN(EAN) | 4012195183433 |
| Price unit | piece |
| Catalog price | 11,13 zł (9,05 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

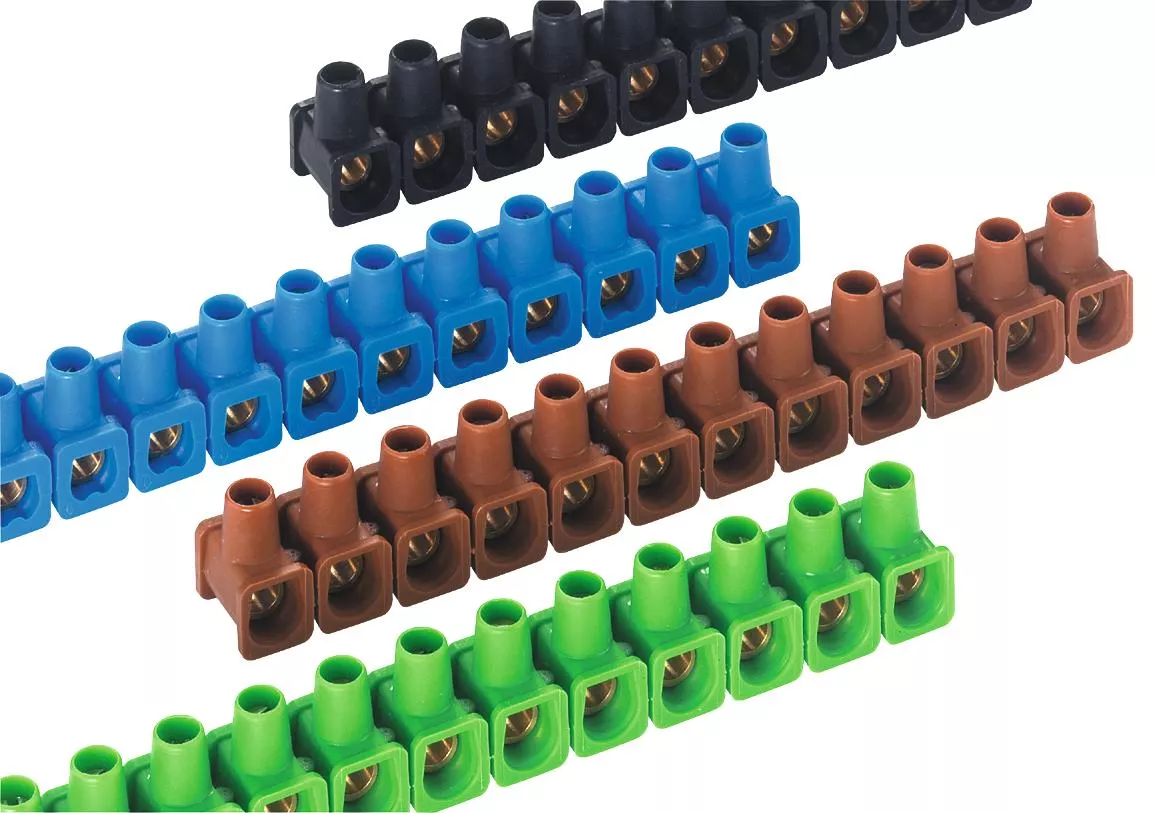

Posortowany w kolorach: czarny, brązowy, niebieski i żółtozielony.
Zaciski mosiężne, śruby stalowe, ocynkowane galwanicznie i pasywowane przezroczyście, 12-biegunowa listwa dzielona na pojedyncze zaciski, otwarte z obydwu stron.
Śruby wysoko odkręcone, zabezpieczone przed zgubieniem.
Przekrój znamionowy 2,5 - mm²
Napięcie znamionowe 380 V
Prąd znamionowy 16 A
Maks. dopuszczalne przekroje przewodów na jeden zacisk 4 x 2,5 mm², 5 x 1,5 mm² lub 6 x 1 mm².
Additional features:

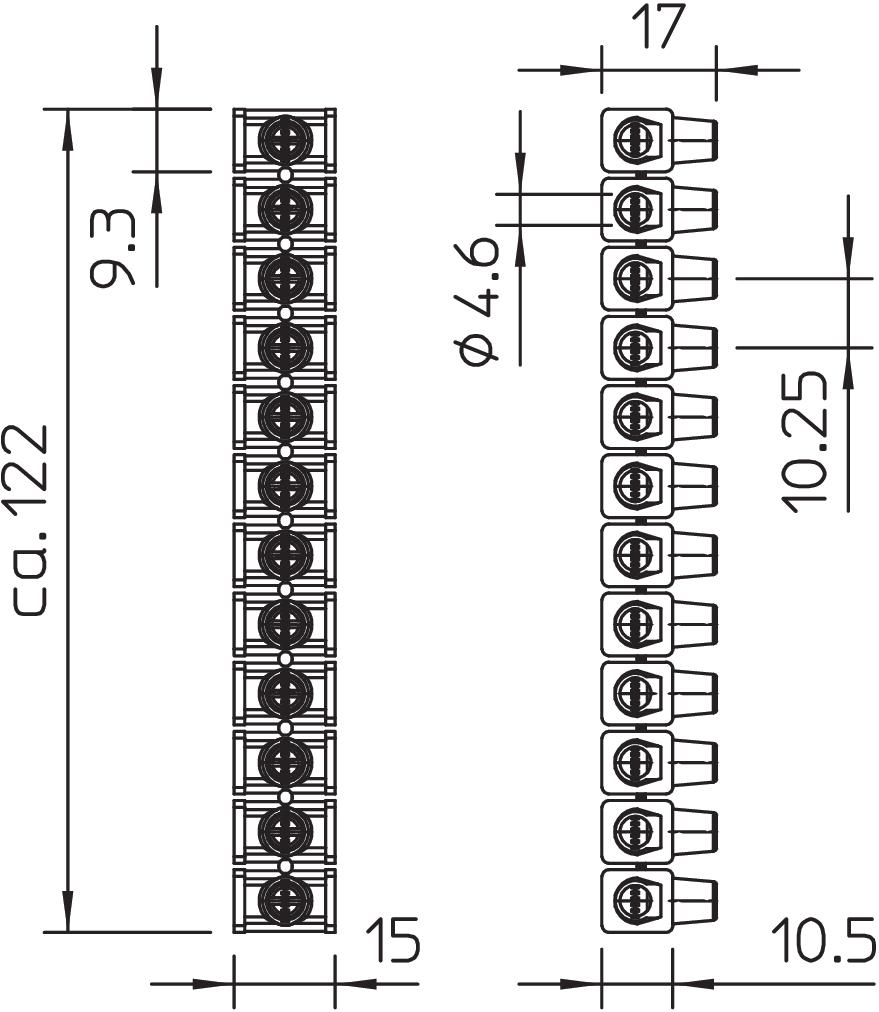

| Information | Value |
|---|---|
| ETIM class: | Single- and multi-pole terminal strip |
| Drill hole distance centrically: | 10.25 mm |
| Connectable conductor cross section solid-core: | 1 - 2.5 mm² |
| Type of electrical connection 1: | Screw connection |
| Number of poles: | 12 |
| Number of clamp positions per pole: | 1 |
| Mounting method: | Direct mounting |
| Material insulation body: | Thermoplastic |
| Halogen free: | yes |
| Width: | 15 mm |
| Height: | 17 mm |
| Closing plate required: | no |
| Colour: | Multi-coloured |
| Transparent: | no |
| Rated current In: | 16 A |
| Rated voltage: | 380 V |
| Depth: | 122 mm |
