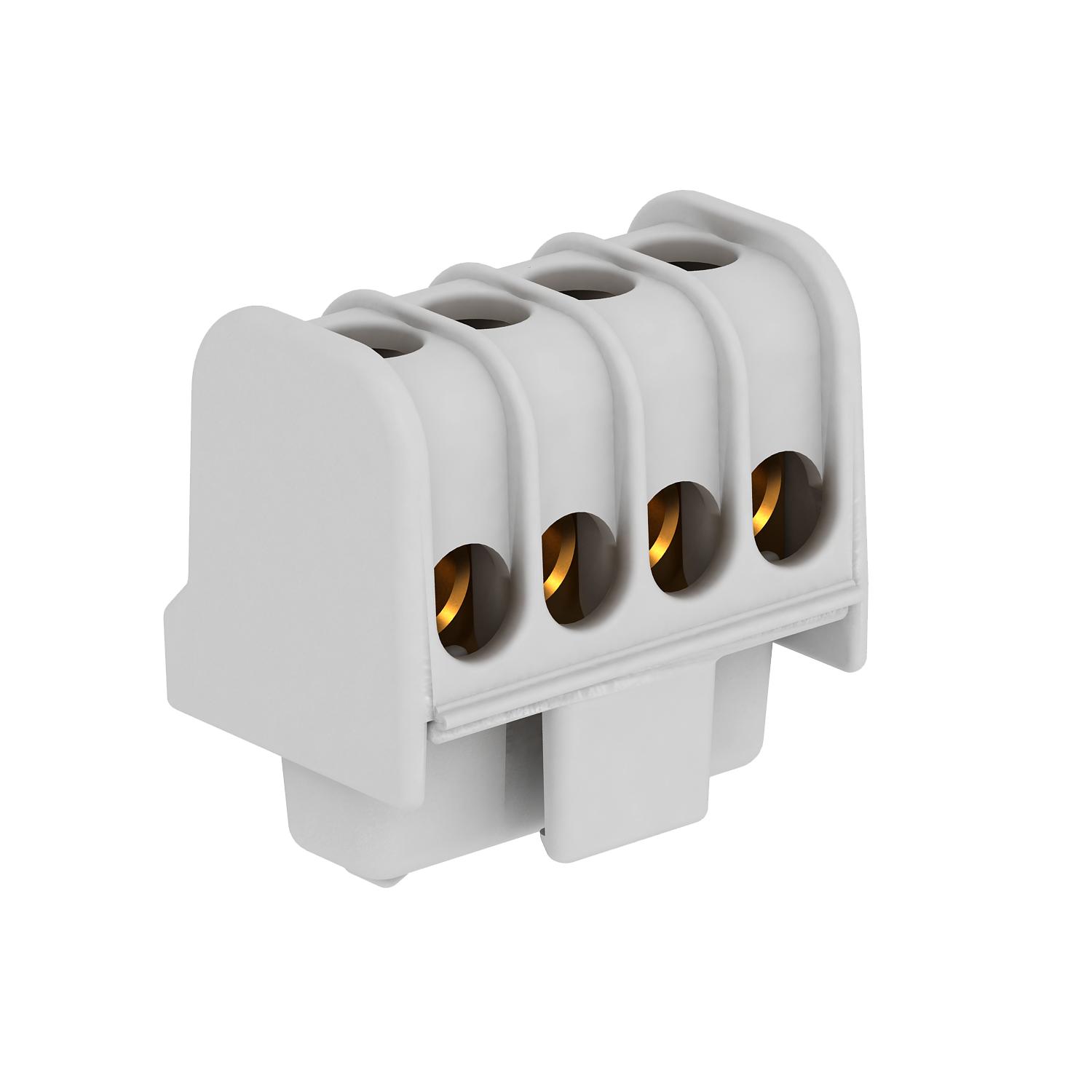

KL-T 06-16 Listwa zaciskowa
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2016190 |
| GTIN(EAN) | 4012195896951 |
| Price unit | piece |
| Catalog price | 25,18 zł (20,47 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zaciski mosiężne, śruby stalowe, ocynkowane i pasywowane przezroczyście, przekrój znamionowy 6 ÷ 16 mm², napięcie znamionowe 400 V, 1-biegunowe, z zaciskami gniazdowymi maks. Liczba przewodów możliwych do podłączenia w punkcie zaciskowym maks. 4x16mm², 4x10mm², 8x6mm² lub 12x4mm².
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Single- and multi-pole terminal strip |
| Connectable conductor cross section solid-core: | 4 - 16 mm² |
| Type of electrical connection 1: | Screw connection |
| Number of poles: | 1 |
| Number of clamp positions per pole: | 1 |
| Mounting method: | Other |
| Material insulation body: | Thermoplastic |

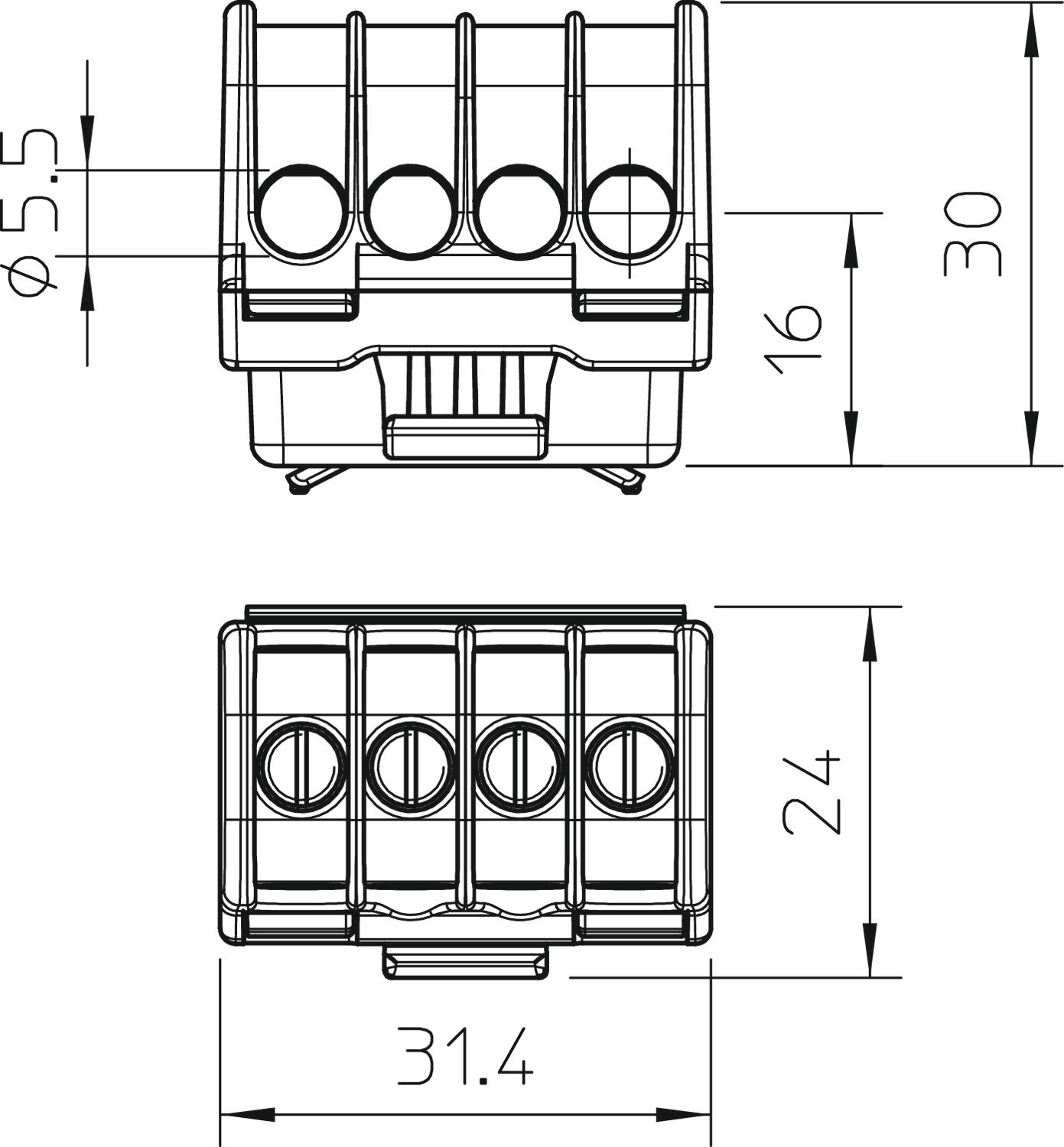

| Width: | 24 mm |
| Height: | 30 mm |
| Closing plate required: | no |
| Colour: | Grey |
| Transparent: | no |
| Rated current In: | 76 A |
| Rated voltage: | 400 V |
| Depth: | 31.4 mm |
