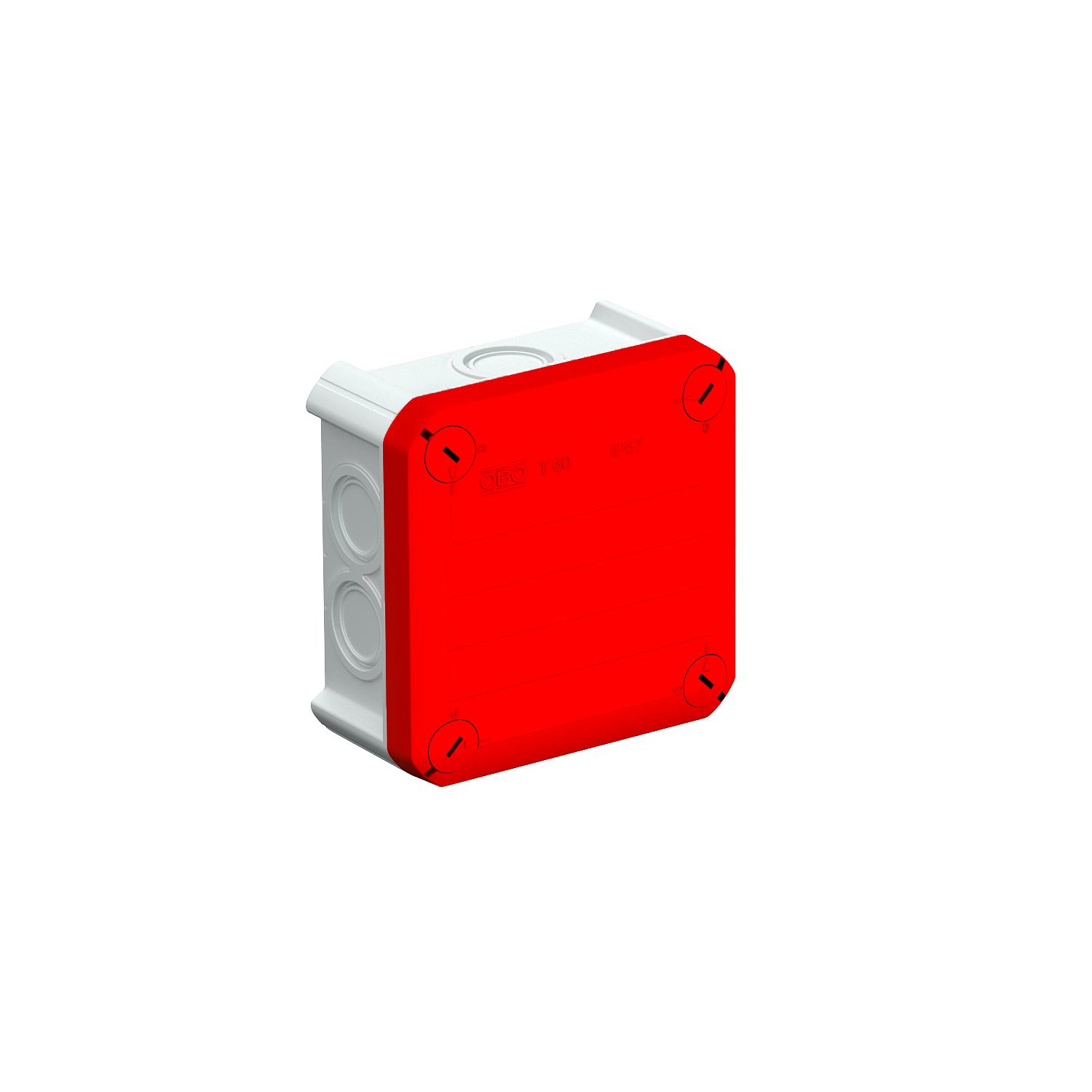

T 60 M25 RO-LGR Puszka odgałęźna
Information | Value |
---|---|
Supplier | OBO Bettermann Polska Sp. z o.o. |
Symbol | 2007927 |
GTIN(EAN) | 4012196610143 |
Price unit | piece |
Catalog price | 66,33 zł (53,93 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Puszki odgałęźne wykonane są z polipropylenu. Przewody można wprowadzić przez siedem przetłoczeń o średnicy 25 mm.
Po wybiciu otworów w przetłoczeniach, zalecamy użycie dławików kablowych do wprowadzenia przewodów do obudowy, dzięki czemu zostaje zachowany stopień ochrony.
Puszki odgałęźne można zamontować na płytach montażowych za pomocą śrub do blachy 3,5 x 9,5mm. Pokrywa puszki ma pole opisowe oraz możliwość plombowana.
Additional features:
Information | Value |
---|---|
ETIM class: | Box/housing for surface mounting on the wall/ceiling |
Equipped with: | None |
Shape: | Square |
Mounting method: | Wall-/ceiling mounting |
Inlet from the rear: | yes |

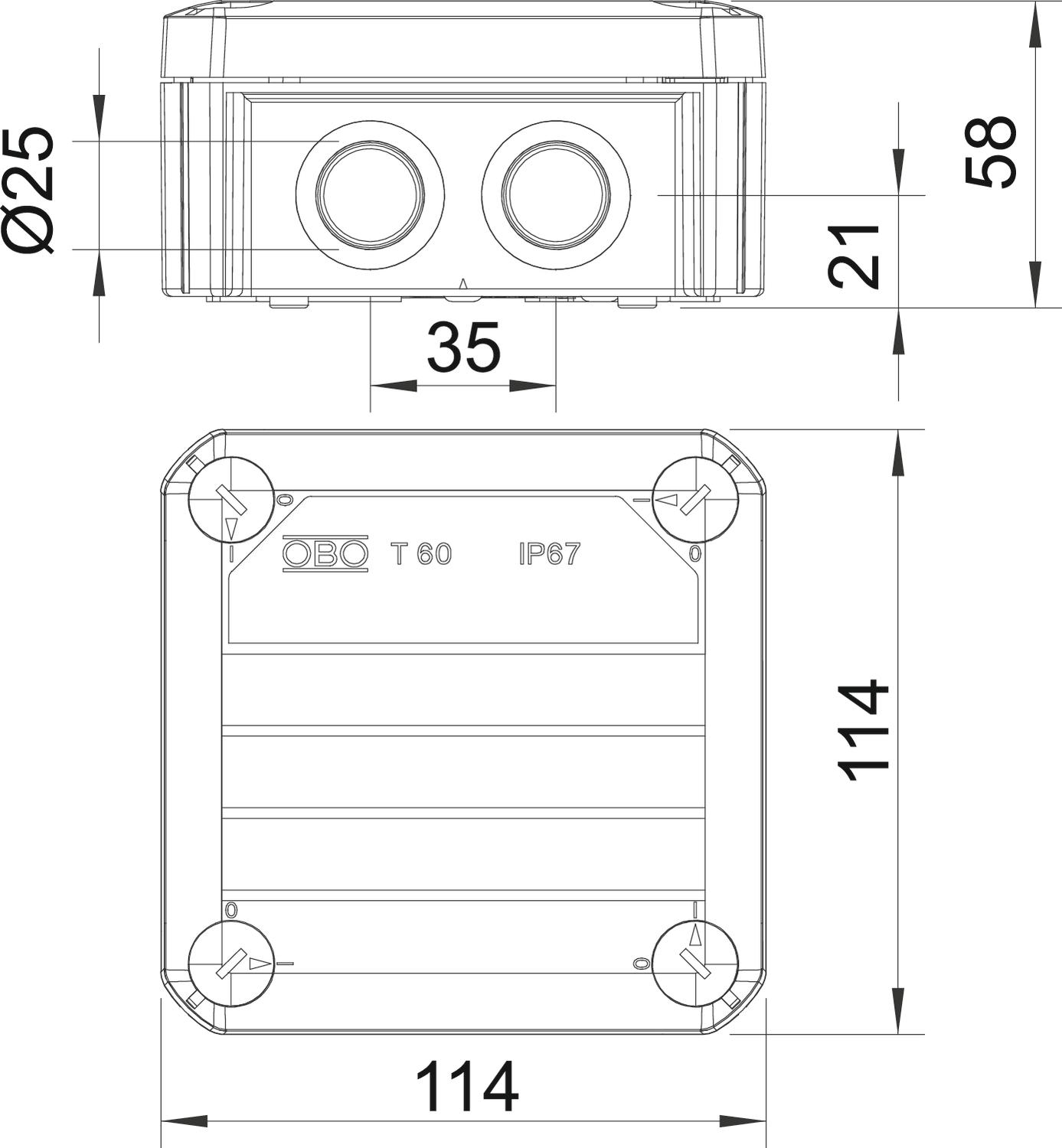

Length: | 114 mm |
Width: | 114 mm |
Depth: | 57 mm |
Tackable: | yes |
Number of inlets: | 7 |
Type of housing feed-through: | Preembossing |
Material: | Plastic |
Halogen free: | yes |
Colour: | Grey |
Degree of protection (IP): | IP67 |
Cover attachment: | Screwed |
Rated insulation voltage Ui: | 500 V |
Circuit integrity: | None |
With screening: | no |
Weatherproof: | no |
Operating temperature: | -5 - 60 °C |
For Ex-zone gas: | None |
For Ex-Zone dust: | None |
