T 100 WWB 2S2R2W Puszka odgałęźna
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2007792 |
| GTIN(EAN) | 4012196625253 |
| Price unit | piece |
| Catalog price | 693,97 zł (564,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

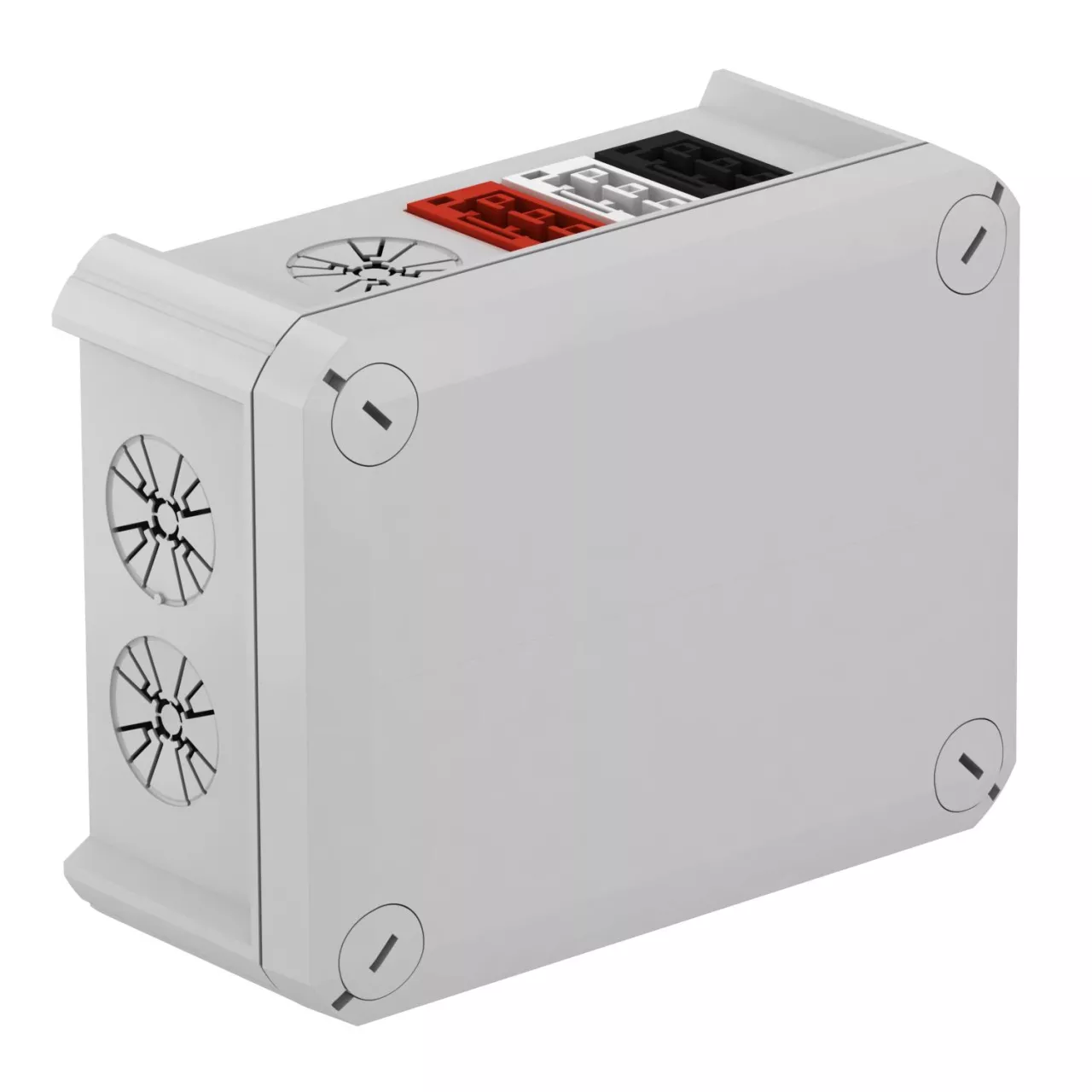

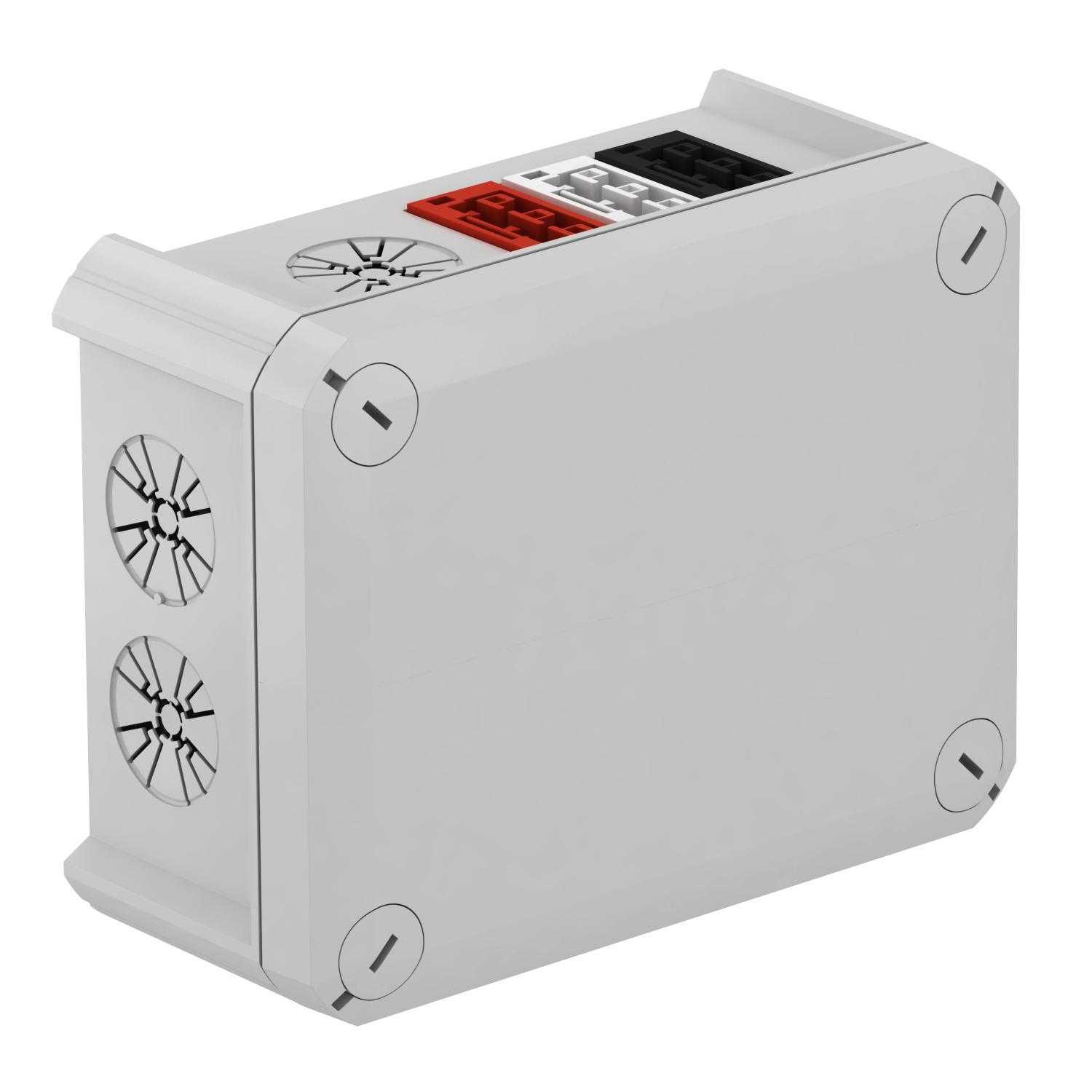

Junction box with WAGO sockets, 3-pin. 2x red/white/black for the connection of cables indoors and in protected outdoor areas. Suitable for wall and ceiling mounting and on mounting panels. With the option of fastening inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-stabilized materials.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Equipped with: | Other |
| Shape: | Rectangular |
| Length: | 150 mm |
| Width: | 116 mm |
| Depth: | 67 mm |
| Number of inlets: | 4 |
| Material: | Plastic |
| Colour: | Grey |
| Degree of protection (IP): | IP20 |
| Cover attachment: | Screwed |
| Rated insulation voltage Ui: | 500 V |
| Circuit integrity: | None |
| With screening: | no |
| Weatherproof: | no |
| Operating temperature: | -5 - 60 °C |
| For Ex-zone gas: | None |
| For Ex-Zone dust: | None |
