T 250 HD TR Puszka odg. pokrywa przeźr.
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2007756 |
| GTIN(EAN) | 4012195985969 |
| Price unit | piece |
| Catalog price | 294,62 zł (239,53 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

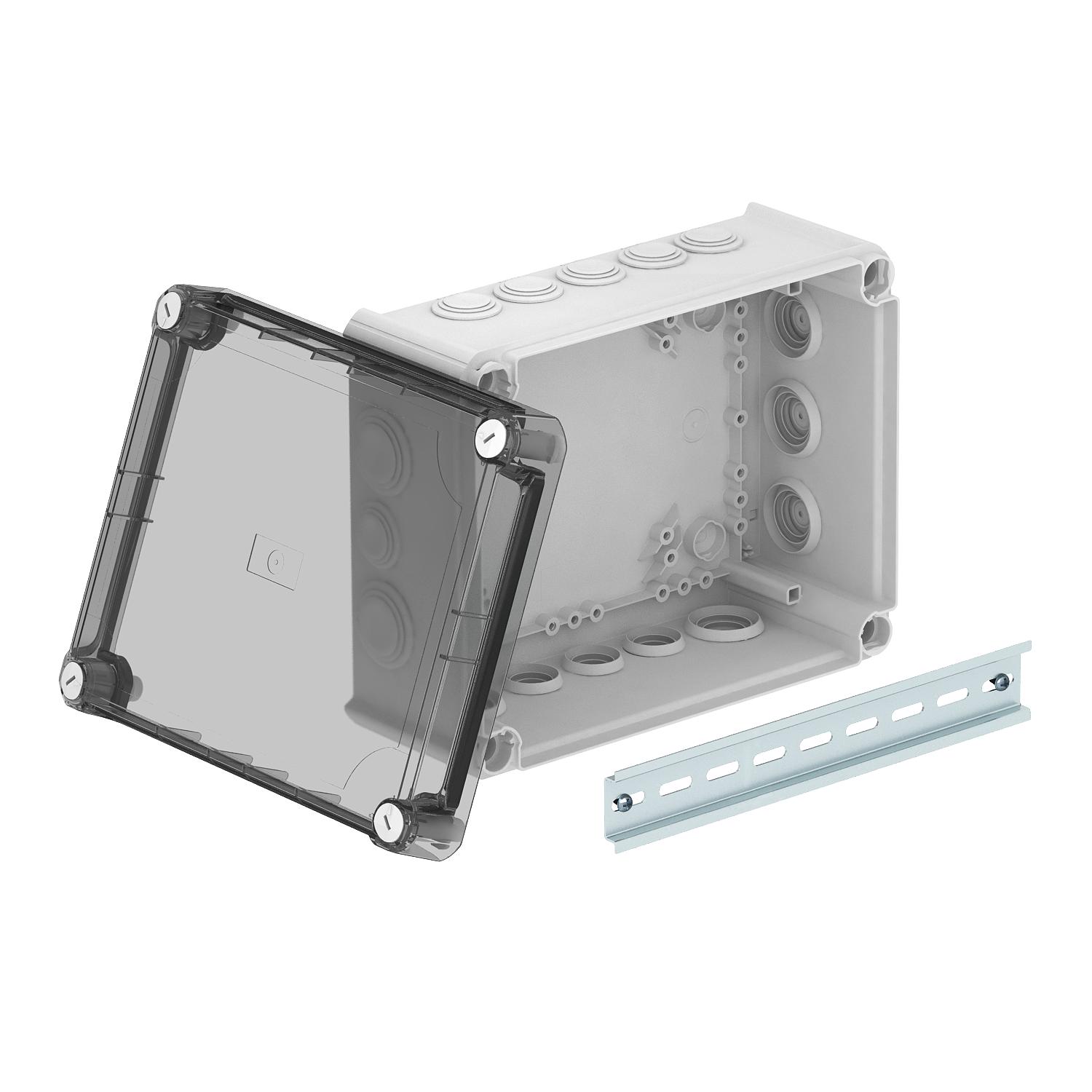

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting, on mounting panels and threads in the floor. With the option to fasten inside and to mount via the corner domes. High, transparent cover with quick lock, sealable. Made from halogen-free and UV-stabilized materials.
With hat profile rail.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK05 according to DIN EN 50102.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Equipped with: | None |
| Shape: | Rectangular |
| Mounting method: | Wall-/ceiling mounting |
| Inlet from the rear: | yes |

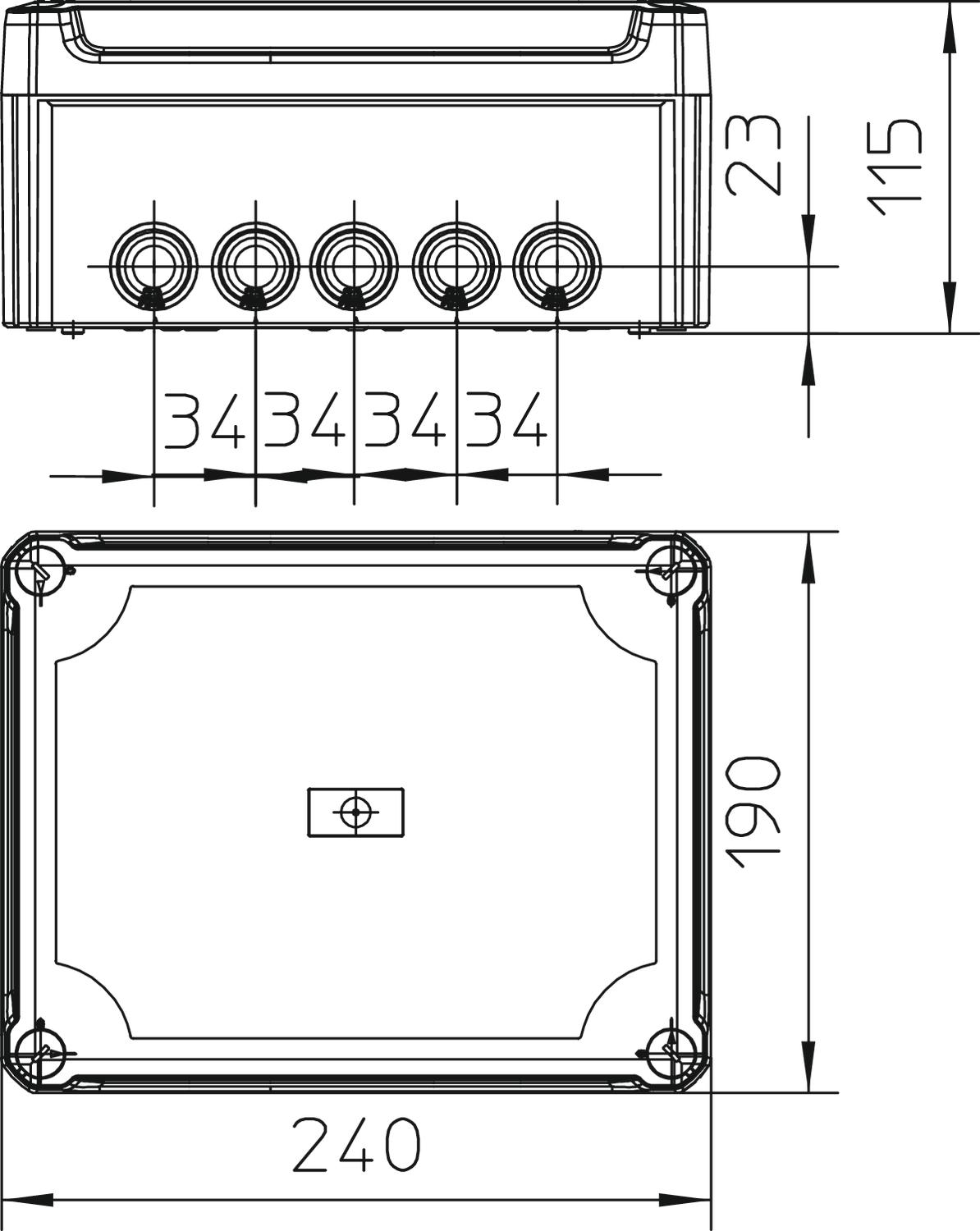

| Length: | 240 mm |
| Width: | 190 mm |
| Depth: | 112 mm |
| Tackable: | yes |
| Number of inlets: | 16 |
| Type of housing feed-through: | Other |
| Material: | Plastic |
| Halogen free: | yes |
| Colour: | Grey |
| Degree of protection (IP): | IP66 |
| Cover attachment: | Screwed |
| Rated insulation voltage Ui: | 500 V |
| Circuit integrity: | None |
| With screening: | no |
| Weatherproof: | yes |
| Operating temperature: | -5 - 60 °C |
| For Ex-zone gas: | None |
| For Ex-Zone dust: | None |
