T 160 F Puszka odgałęźna
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2007355 |
| GTIN(EAN) | 4012195286554 |
| Price unit | piece |
| Catalog price | 78,92 zł (64,16 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

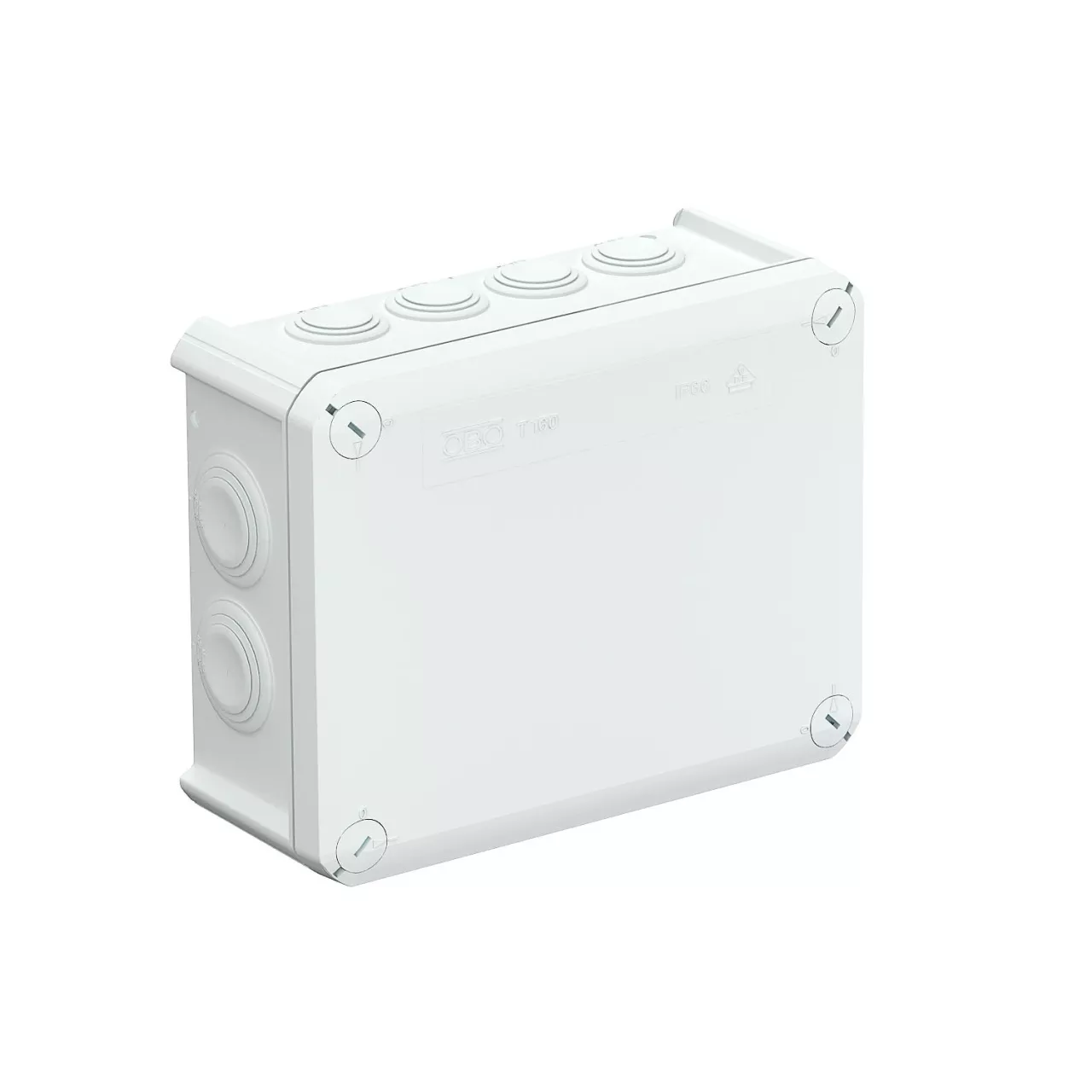

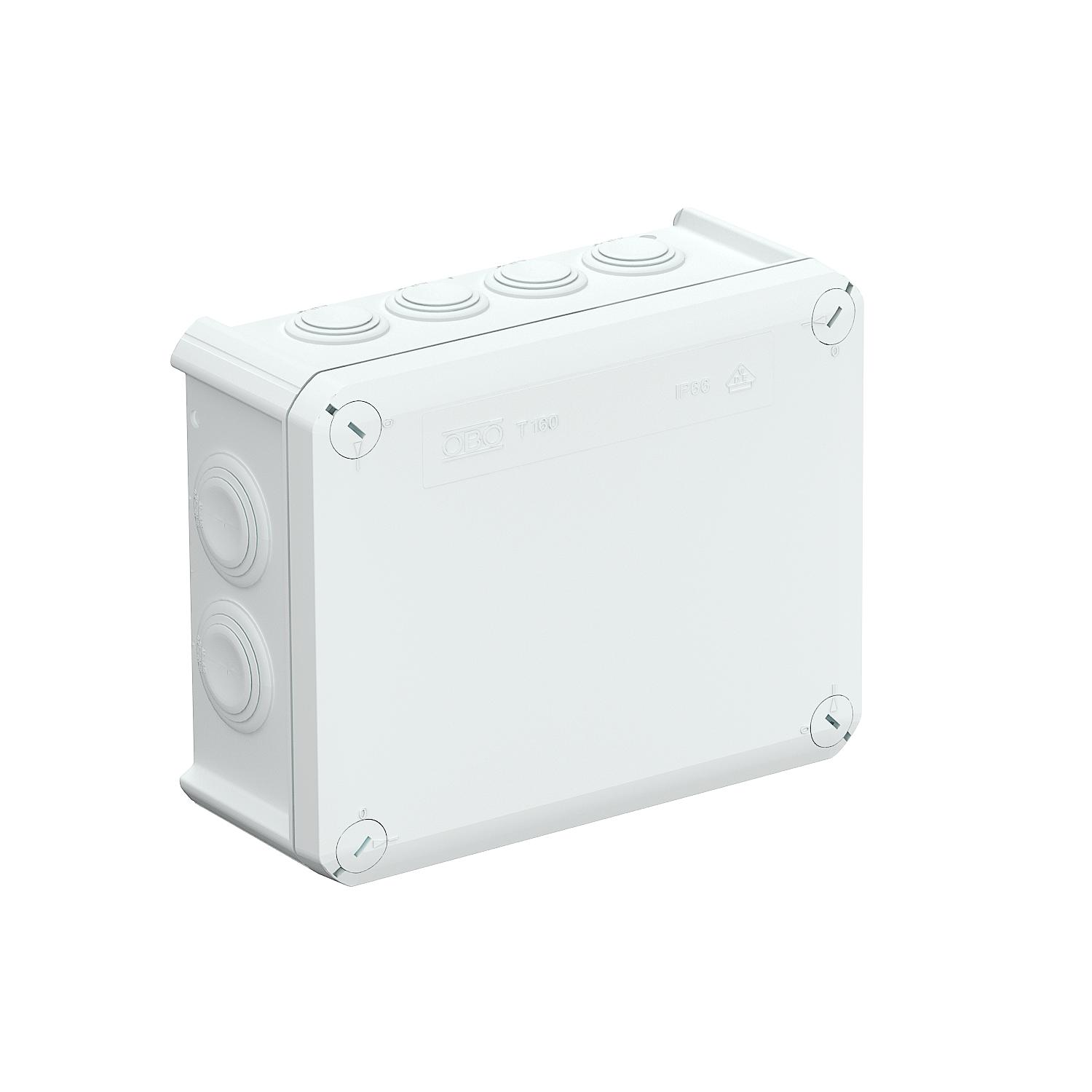

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes. Cover with quick lock, sealable. Flame-resistant type made from special polypropylene.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695-2-11, test temperature 960 °C. Impact resistance IK05 according to DIN EN 50102.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Equipped with: | None |
| Shape: | Rectangular |
| Mounting method: | Wall-/ceiling mounting |
| Inlet from the rear: | yes |

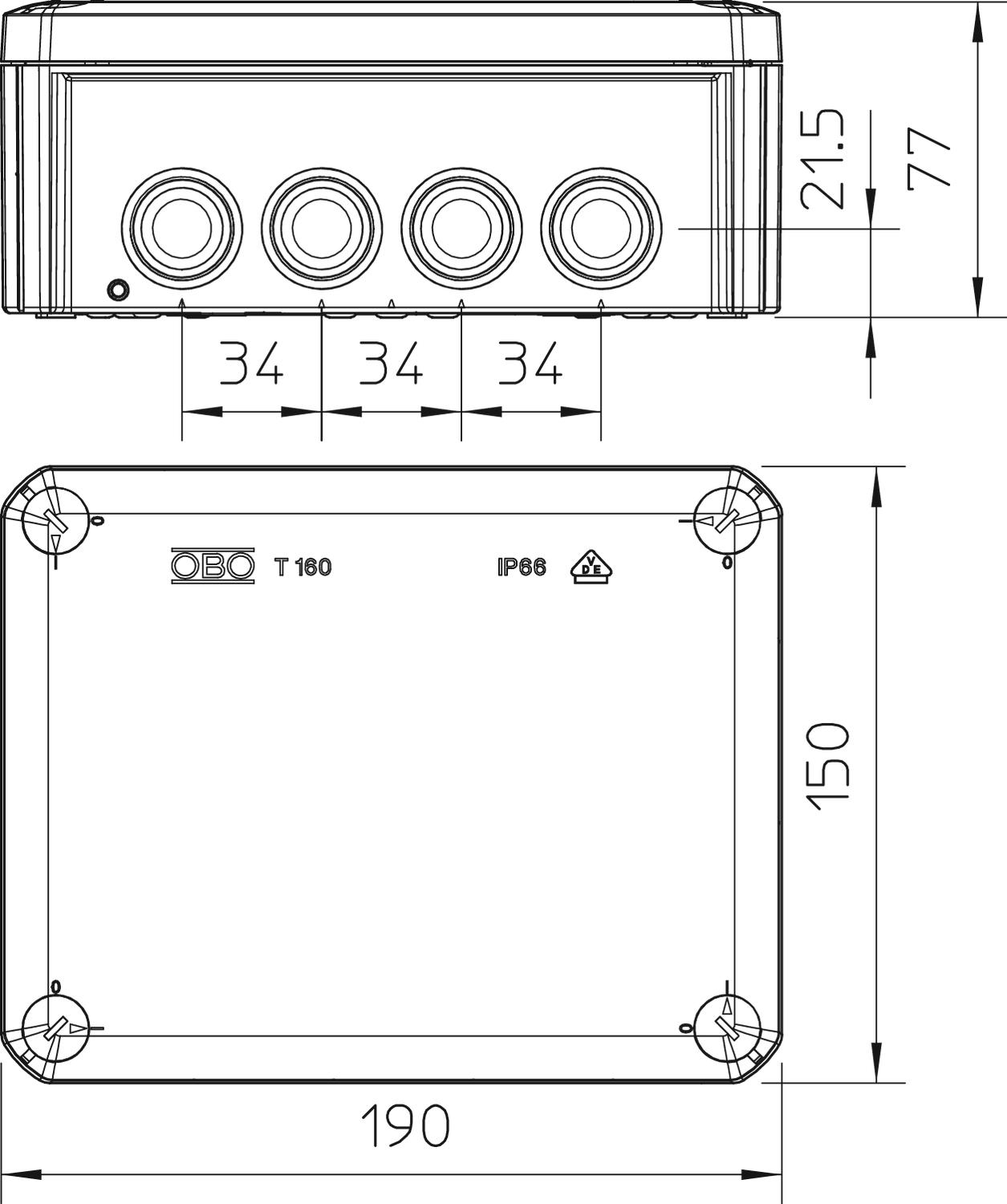

| Length: | 190 mm |
| Width: | 150 mm |
| Depth: | 77 mm |
| Tackable: | yes |
| Number of inlets: | 12 |
| Type of housing feed-through: | Trimmable step membrane |
| Material: | Plastic |
| Colour: | Grey |
| Degree of protection (IP): | IP66 |
| Cover attachment: | Screwed |
| Rated insulation voltage Ui: | 500 V |
| Circuit integrity: | None |
| With screening: | no |
| Weatherproof: | no |
| Operating temperature: | -5 - 60 °C |
| For Ex-zone gas: | None |
| For Ex-Zone dust: | None |
