X25 T LGR Puszka odgałęźna
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2005214 |
| GTIN(EAN) | 4012196584482 |
| Price unit | piece |
| Catalog price | 619,48 zł (503,64 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

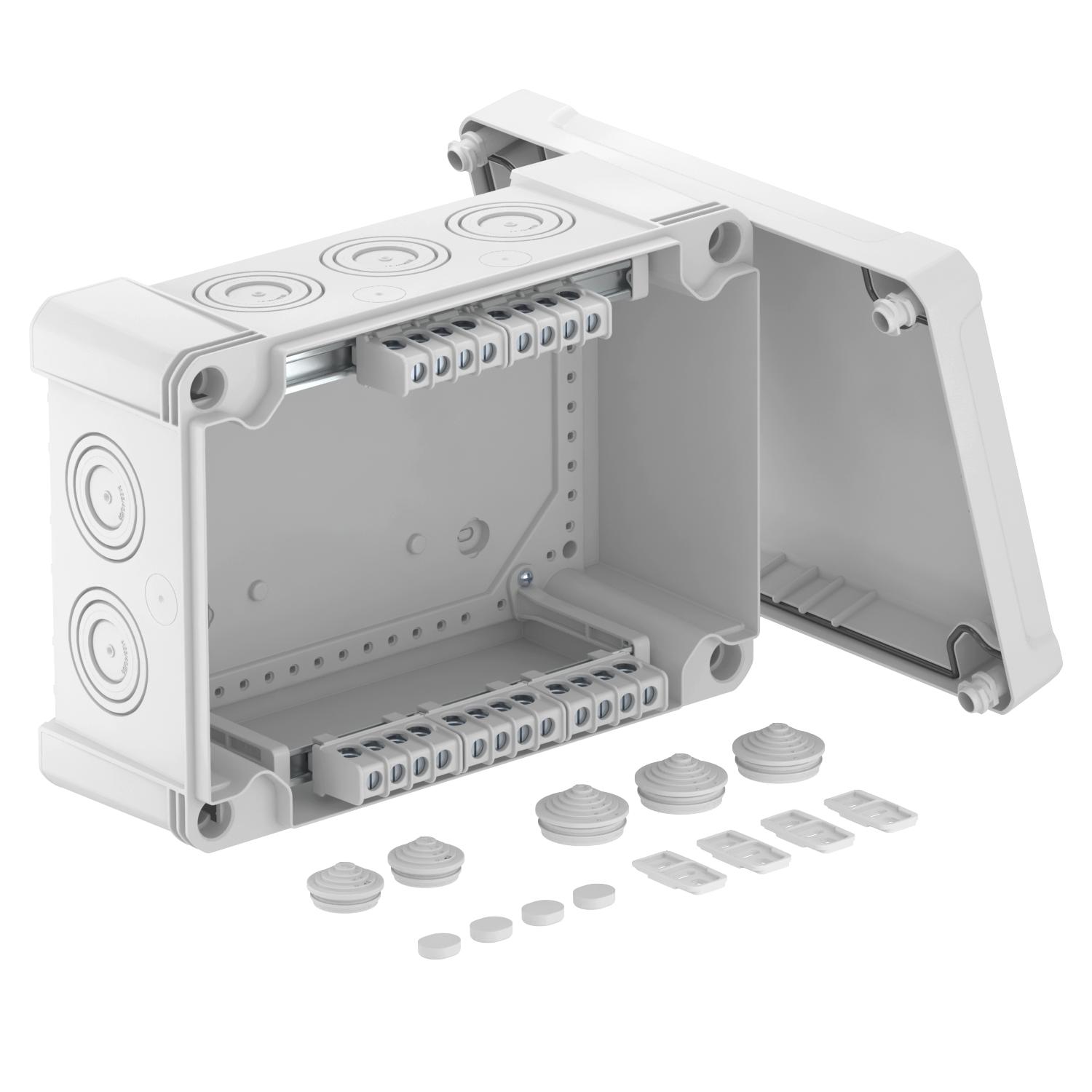

Junction box with terminal strip for the connection of cables and lines indoors and in outdoor areas. Rectangular design with knock-out entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK08. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
With 5 terminal strips of 4 terminals each.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK08 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Max. conductor cross section: | 25 mm² |
| Equipped with: | Other |
| Shape: | Rectangular |
| Mounting method: | Wall-/ceiling mounting |
| Inlet from the rear: | no |
| Length: | 286 mm |
| Width: | 202 mm |
| Depth: | 126 mm |
| Tackable: | yes |
| Number of inlets: | 10 |
| Type of housing feed-through: | Preembossing |
| Material: | Plastic |
| Halogen free: | yes |
| Colour: | Grey |
| Degree of protection (IP): | IP67 |
| Cover attachment: | Screwed |
| Rated insulation voltage Ui: | 750 V |
| With screening: | no |
| Weatherproof: | yes |
| Operating temperature: | -25 - 65 °C |
