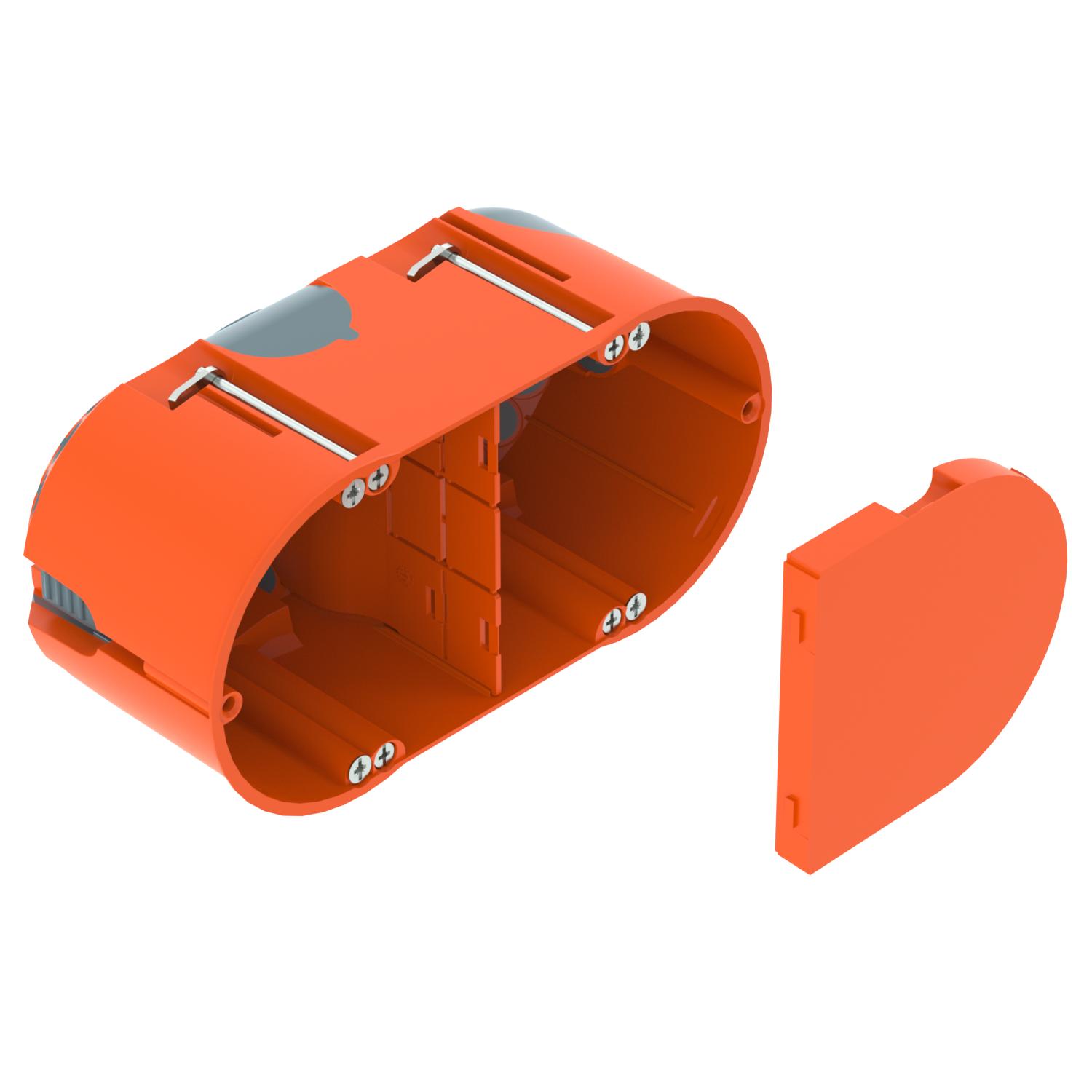

HE 61-DV-L Puszka do do ścian pustych GK do el.herm.
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2003826 |
| GTIN(EAN) | 4012196865499 |
| Price unit | piece |
| Catalog price | 34,21 zł (27,81 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Puszka do elektroniki do ścian płytowych z wejściami membranowymi, pokrywą i przegrodą, do stosowania w ścianach o głębokości zabudowy co najmniej 61 mm i grubości płyty 5 - 40 mm.
• 2 x 3 kopułki śrubowe
• Śruby do osprzętu, śruby z uchwytami dociskowymi
• 4 przepusty rurowe kombinowane Ø 20 i 25 mm
• 4 wejścia na kable NYM 3 x 1,5 mm²
• 2 wejścia na kable NYM 3 x 2,5 mm² lub 5 x 1,5 mm²
• 2 wejścia na kable NYM 5 x 2,5 mm² lub 7 x 1,5 mm²
• Hermetyczne połączenie z innymi puszkami za pomocą łączników typu ZH 11-V
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
| Mounting method: | Hollow wall |
| Shape: | Oval |
| Construction type: | Device connection box (round/square) |
| Model: | Double |

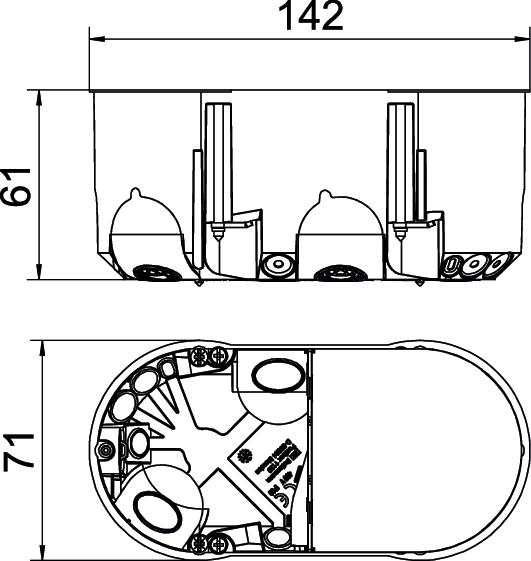

| Length: | 142 mm |
| Width: | 71 mm |
| Depth: | 61 - 61 mm |
| For number of electric fittings: | 2 |
| Mounting switching equipment: | Screwing |
| With screws: | yes |
| Housing feed-through by break-out opening: | no |
| Housing feed-through by seal membrane: | yes |
| Housing feed-through by nozzle: | no |
| Housing feed-through by step membrane: | no |
| For tube diameter: | 20/25 mm |
| Number of inlets: | 14 |
| Material: | Plastic |
| Halogen free: | yes |
| Colour: | Orange |
| Degree of protection (IP): | IP30 |
| Cover attachment: | Snapped on |
| Nozzle: | Other |
