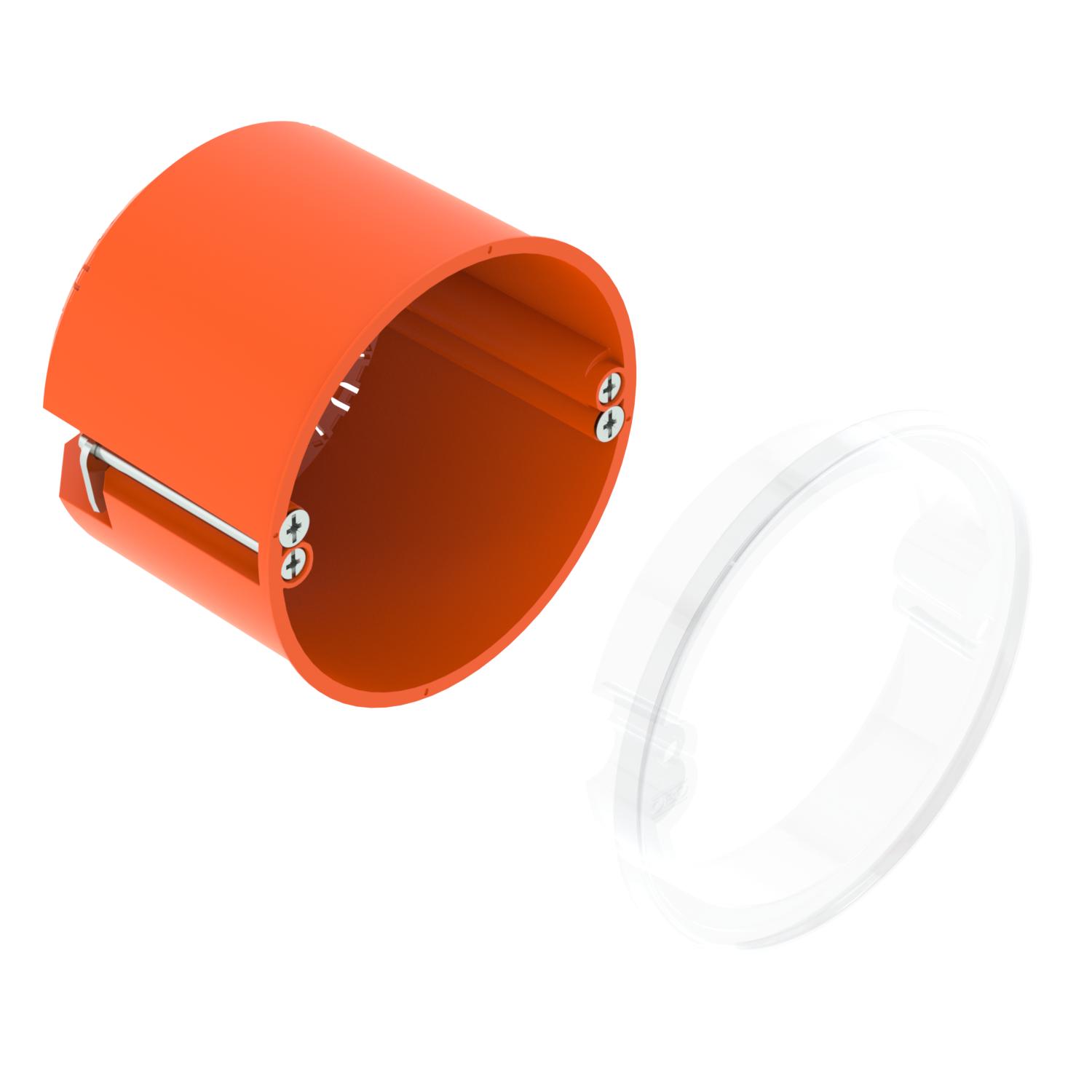

HG 61-AD-IP Puszka do ścian pustych GK bezhal.
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2003819 |
| GTIN(EAN) | 4012196700790 |
| Price unit | piece |
| Catalog price | 22,74 zł (18,49 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Puszka do ścian płytowych CEE/PERILEX z pierścieniem uszczelniającym, do stosowania w ścianach o głębokości zabudowy co najmniej 61 mm i grubości płyty 5 - 40 mm.
• 2 kopułki śrubowe
• Śruby do osprzętu, uchwyty zaciskowe
• 3 przepusty rurowe kombinowane do Ø 20 i 25 mm
• 3 wejścia na kable NYM 3 x 2,5 mm² lub 5 x 1,5 mm²
• 2 wejścia na kable NYM 5 x 2,5 mm² lub 7 x 1,5 mm²
• 1 wejście na kable NYM 3 x 1,5 mm²
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
| Shape: | Round |
| Construction type: | Device connection box (round/square) |
| Model: | Single |

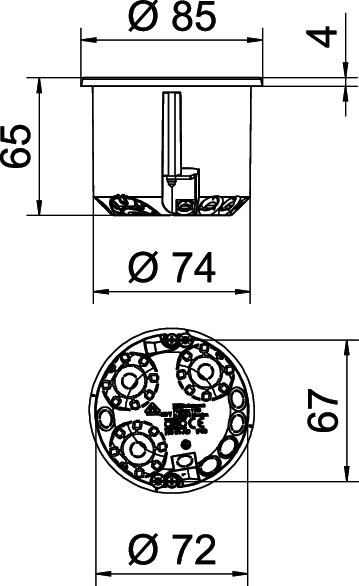

| Diameter: | 74 mm |
| Depth: | 61 - 61 mm |
| For number of electric fittings: | 1 |
| Mounting switching equipment: | Screwing |
| With screws: | yes |
| Housing feed-through by break-out opening: | yes |
| Housing feed-through by seal membrane: | no |
| Housing feed-through by nozzle: | no |
| Housing feed-through by step membrane: | no |
| For tube diameter: | 20/25 mm |
| Number of inlets: | 9 |
| Material: | Plastic |
| Halogen free: | yes |
| Colour: | Orange |
| Degree of protection (IP): | IP34 |
| Cover attachment: | Screwed |
| Nozzle: | None |
