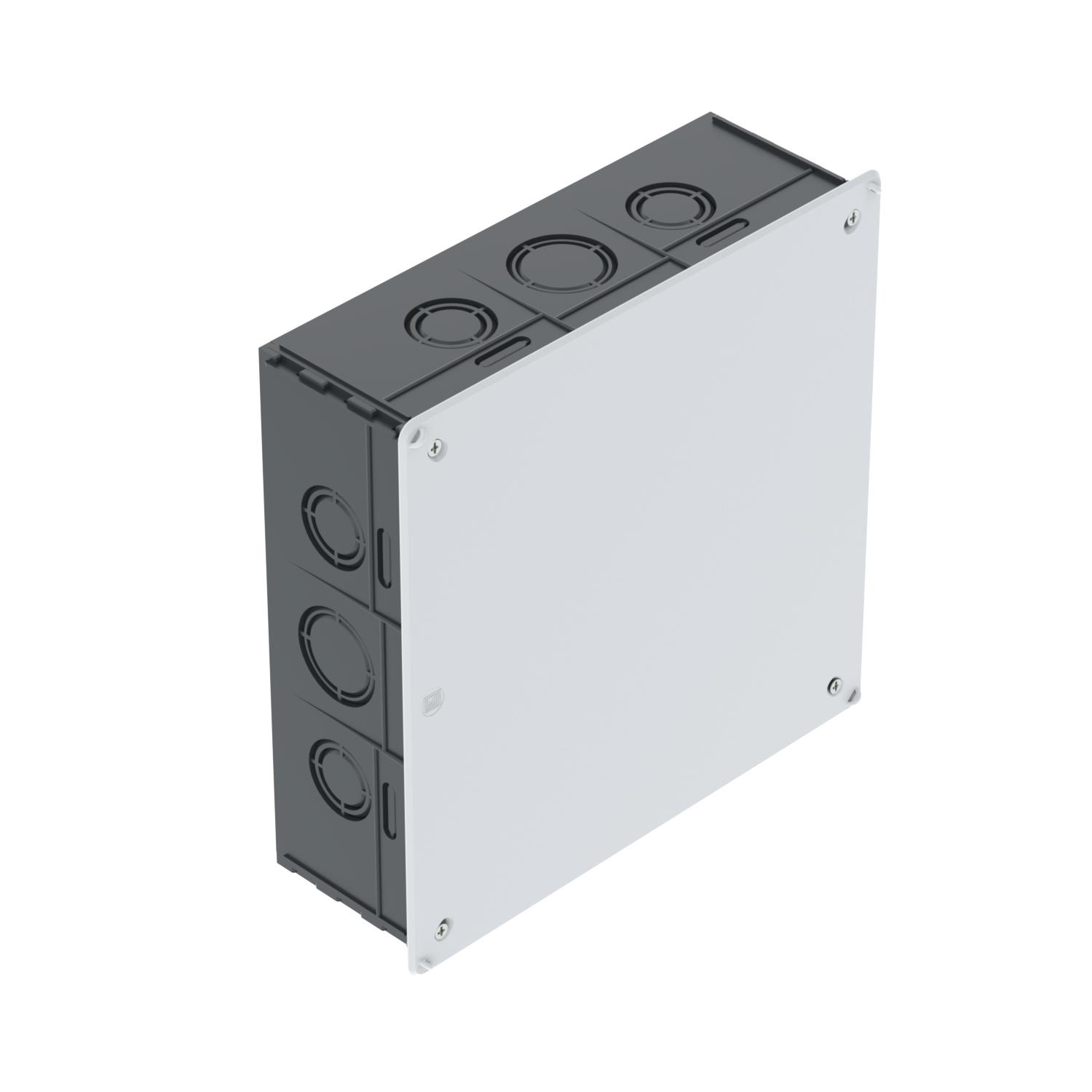

UV 200 K Skrzynka rozgałęźna
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2003130 |
| GTIN(EAN) | 4012195023951 |
| Price unit | piece |
| Catalog price | 100,18 zł (81,45 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Puszka podtynkowa, do zastosowania w murze o głębokości zabudowy co najmniej 65 mm. Z pokrywą i śrubami do pokryw (15 mm). Płaska krawędź pokrywy, chropowata powierzchnia pokrywy.
• 4 boczne przepusty rurowe kombinowane Ø 34,6 i 28,5 mm
• 8 bocznych przepustów rurowych kombinowanych Ø 28,5 i 21,5 mm
• 8 bocznych wejść na kable płaskie
• 2 wejścia rurowe kombinowane Ø 34,6 i 28,5 mm w podstawie
• 2 wejścia na kable płaskie w podstawie
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
| Mounting method: | Flush-mounted |
| Shape: | Square |
| Construction type: | Cable junction box |
| Model: | Single |
| Equipped with: | None |

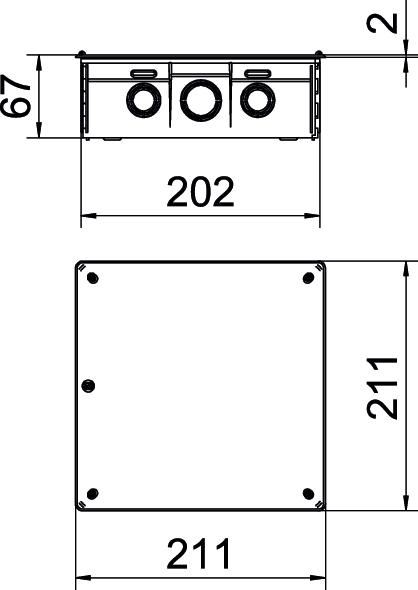

| Length: | 200 mm |
| Width: | 200 mm |
| Depth: | 65 - 65 mm |
| With screws: | no |
| Housing feed-through by break-out opening: | yes |
| Housing feed-through by seal membrane: | no |
| Housing feed-through by nozzle: | no |
| Housing feed-through by step membrane: | no |
| Inlet from the rear: | no |
| Number of inlets: | 24 |
| Material: | Plastic |
| Halogen free: | no |
| Colour: | Black |
| Degree of protection (IP): | IP20 |
| Cover attachment: | Screwed |
| Circuit integrity: | None |
| With screening: | no |
| Nozzle: | None |
