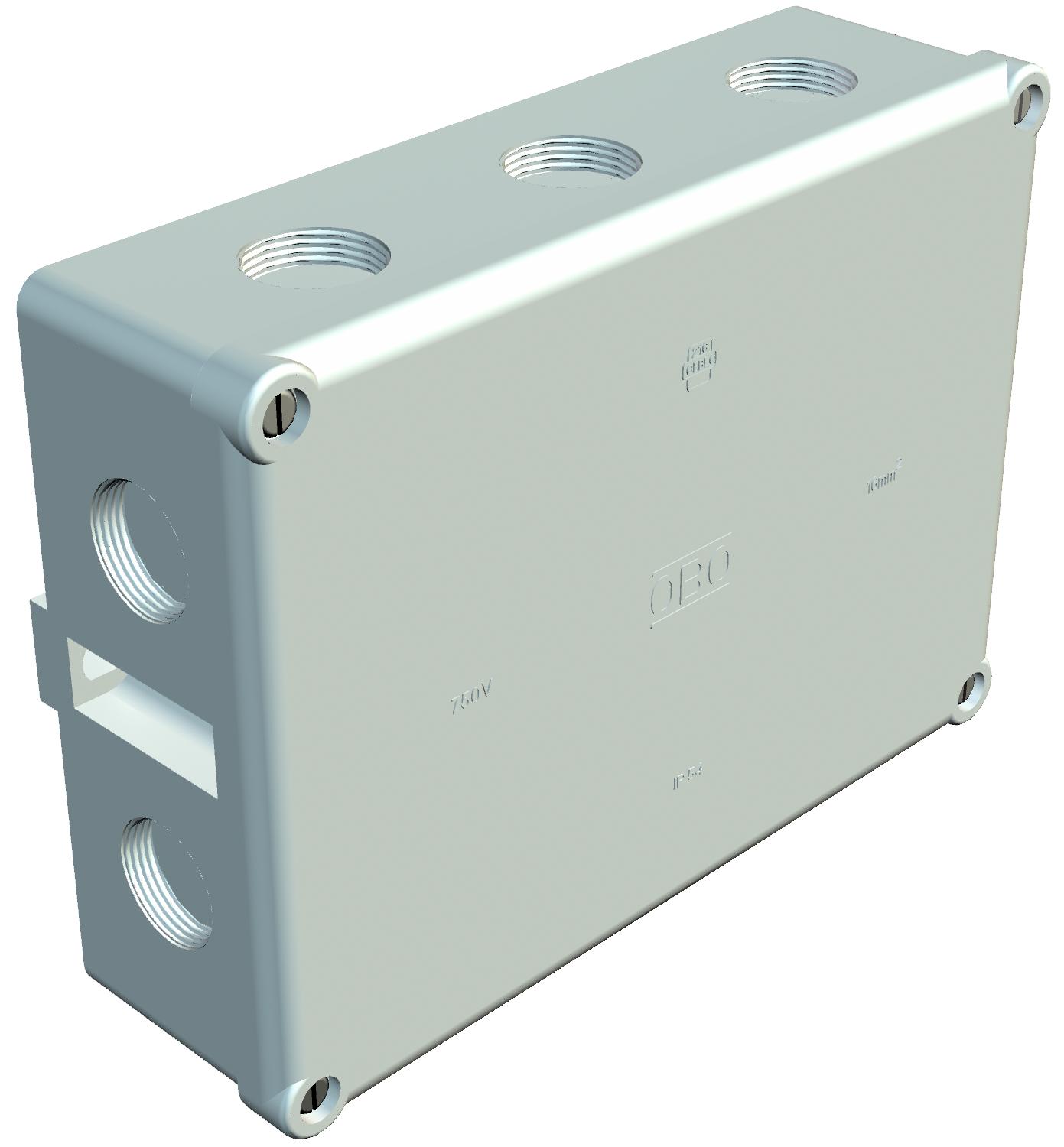

B 12 M Puszka odgałęźna
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2002523 |
| GTIN(EAN) | 4012195105312 |
| Price unit | piece |
| Catalog price | 196,50 zł (159,76 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stopień ochrony IP 54, napięcie znamionowe 660 V, przekrój znamionowy 16 - mm², 2 uchwyty mocujące do śrub o śr. do 6 mm na zewnątrz puszki. 4 śruby pokrywy, 10 wyłamywalnych wejść z gwintem M25 x 1,5.

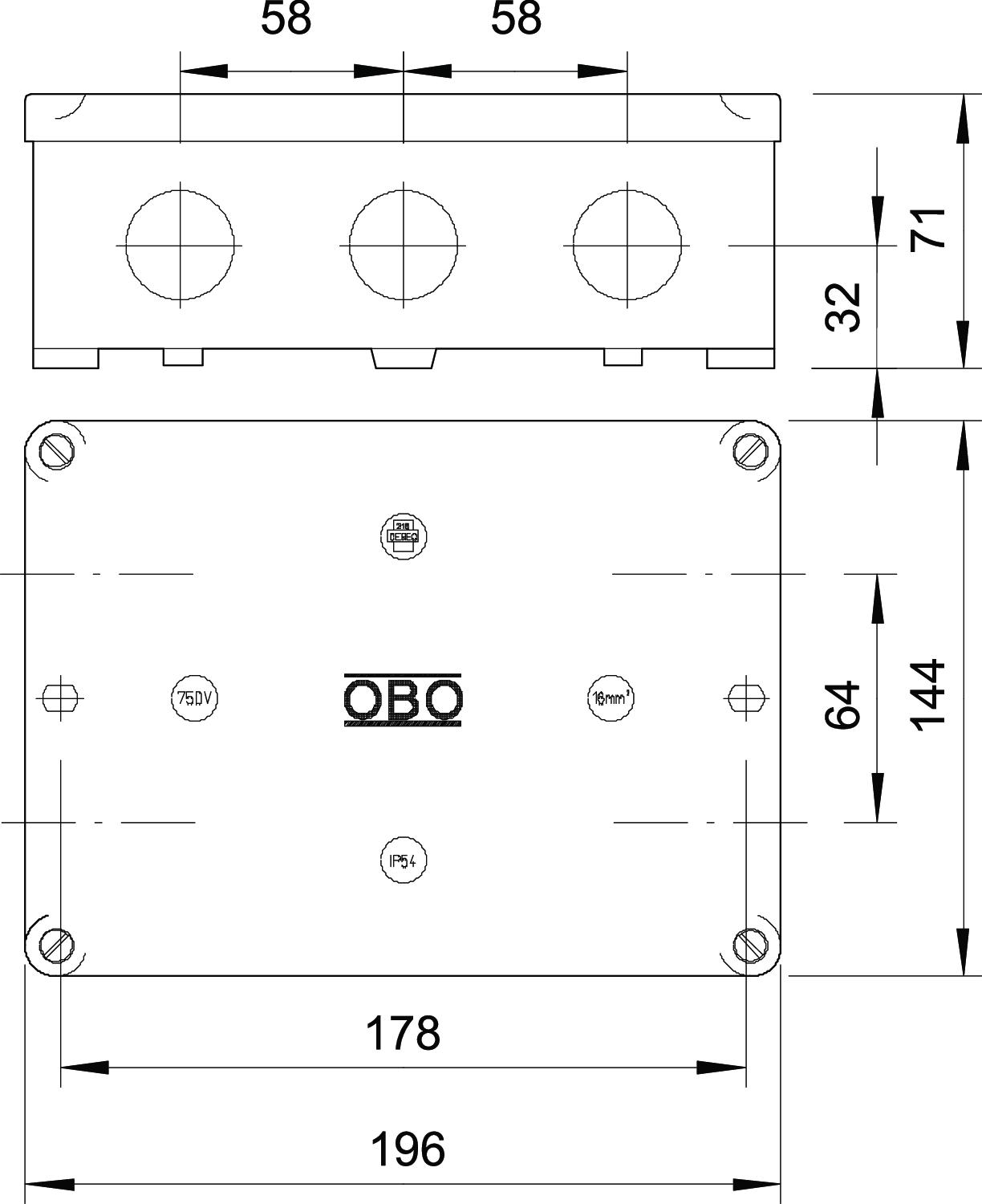

Wymiary wewnętrzne: 178x126x57 mm
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Shape: | Rectangular |
| For tube diameter: | 25 mm |
| Inlet from the rear: | no |
| Length: | 144 mm |
| Width: | 196 mm |
| Depth: | 71 mm |
| Tackable: | no |
| Number of inlets: | 10 |
| Material: | Plastic |
| Halogen free: | yes |
| Colour: | Grey |
| Degree of protection (IP): | IP54 |
| Cover attachment: | Screwed |
| Rated insulation voltage Ui: | 660 V |
| Circuit integrity: | None |
| With screening: | no |
| Weatherproof: | no |
| For Ex-zone gas: | None |
| For Ex-Zone dust: | None |
| Type of housing feed-through: | Thread and prestamping |
