B 10 M 5 Puszka odgałęźna
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2002140 |
| GTIN(EAN) | 4012195107712 |
| Price unit | piece |
| Catalog price | 83,96 zł (68,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stopień ochrony IP 54, napięcie znamionowe 660 V, przekrój znamionowy 2,5 - 4, w zestawie z listwą zaciskową 700/6 M na przekrój 4 mm², 2 otwory montażowe na śruby do 5 mm na zewnątrz puszki. 4 śruby pokrywy, 7 wyłamywalnych wejść z gwintem M20 x 1,5, dedykowana do dławików kablowych z krótkimi gwintami przyłączeniowymi.

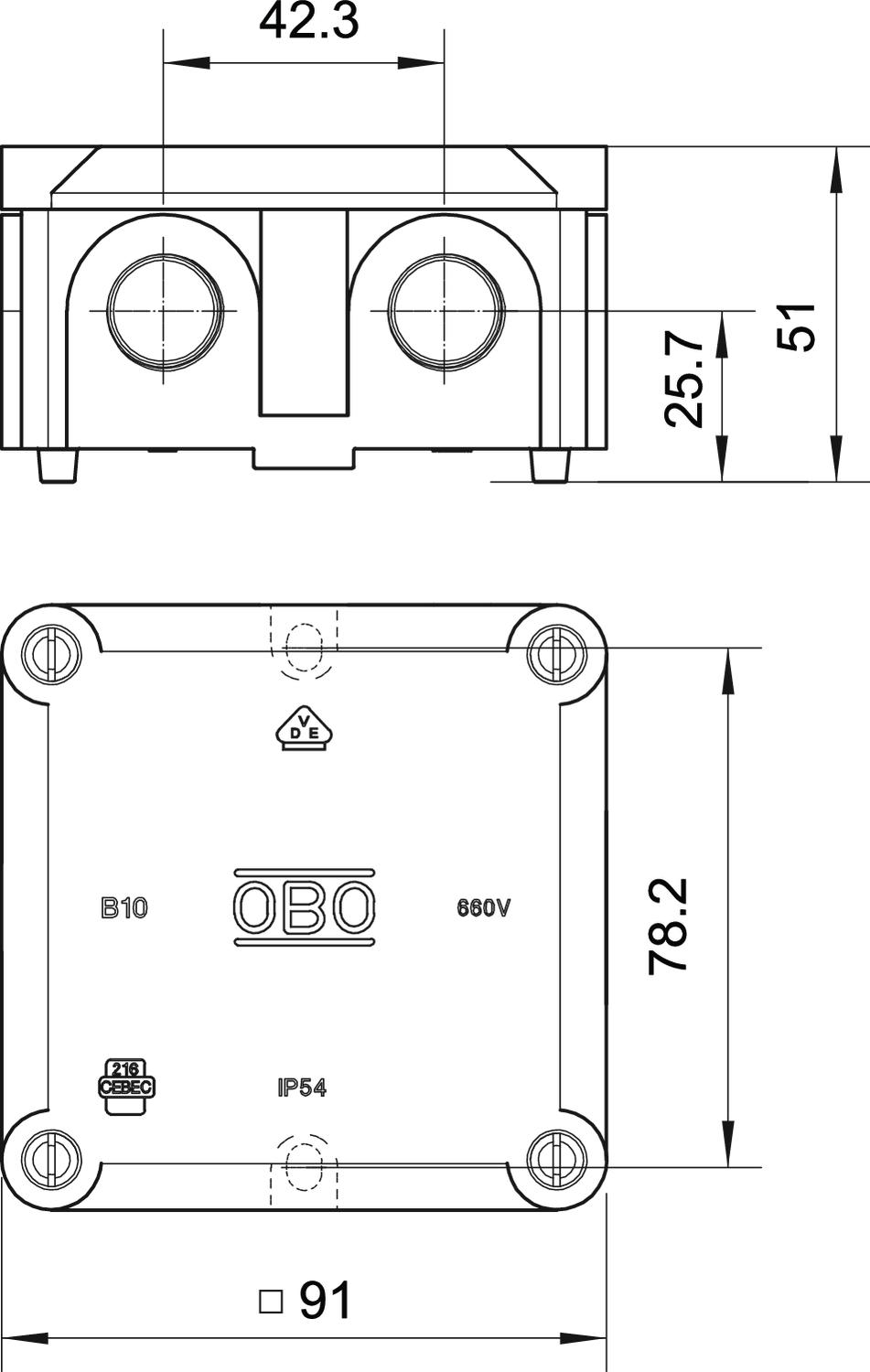

Wymiary wewnętrzne: 80x80x39 mm.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Shape: | Square |
| For tube diameter: | 20 mm |
| Inlet from the rear: | no |
| Length: | 91 mm |
| Width: | 91 mm |
| Depth: | 51 mm |
| Tackable: | no |
| Number of inlets: | 7 |
| Type of housing feed-through: | Thread and prestamping |
| Material: | Plastic |
| Halogen free: | yes |
| Colour: | Grey |
| Degree of protection (IP): | IP54 |
| Cover attachment: | Screwed |
| Rated insulation voltage Ui: | 660 V |
| Circuit integrity: | None |
| With screening: | no |
| Weatherproof: | no |
| For Ex-zone gas: | None |
| For Ex-Zone dust: | None |
