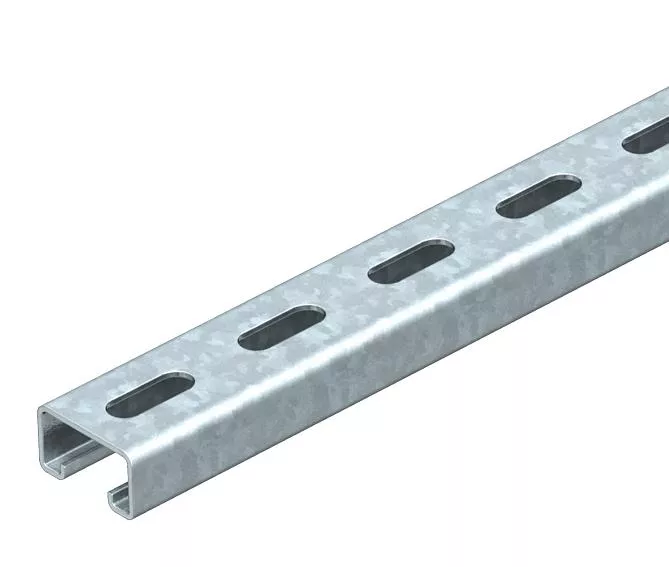

MS4121P0200FT Szyna profilowa, ocynk ogniowo-zanurzeniowy
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 1122933 |
| GTIN(EAN) | 4012195697626 |
| Price unit | piece |
| Catalog price | 37,79 zł (30,72 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ciężka szyna o profilu C do indywidualnego montażu konstrukcji wsporczych np. Korytka kablowe lub jako konsola do szaf sterowniczych. Może być również stosowana do układania kabli w połączeniu z obejmami w kształcie litery U.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Mounting rail/-profile |

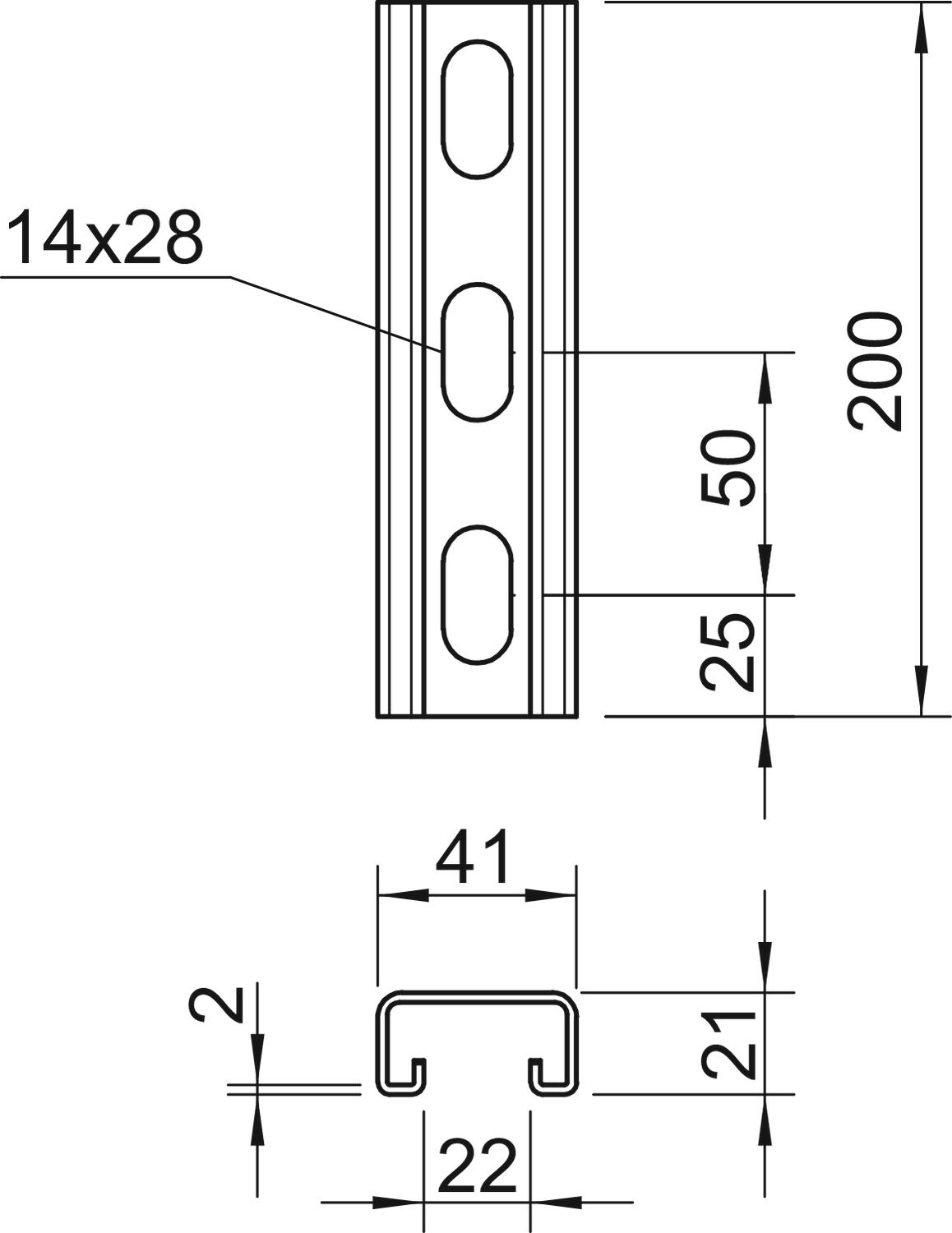

| Length: | 200 mm |
| Width: | 41 mm |
| Height: | 21 mm |
| Material thickness: | 2 mm |
| Profile shape: | C-profile |
| Type of perforation: | Back perforated |
| With toothing: | yes |
| Area moment of inertia Iy: | 0.95 cm4 |
| Area of inertia Iz: | 4.51 cm4 |
| Moment of resistance Wy: | 0.89 cm³ |
| Moment of resistance Wz: | 2.2 cm³ |
| Suitable for circuit integrity: | no |
| Material: | Steel |
| Surface protection: | Hot-dip galvanized |
| Weight: | 0.3 kg |
