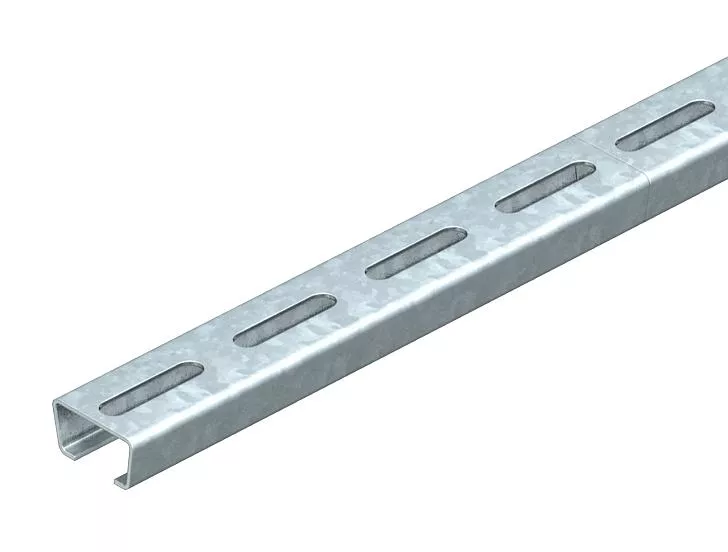

AML3518P1000FS Szyna profilowa
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 1119646 |
| GTIN(EAN) | 4012196470730 |
| Price unit | meter |
| Catalog price | 67,67 zł (55,02 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Sszyna profilowa C do układania kabli, w połączeniu z zaciskami wspornikowymi ze stopą młotkową. Może być również stosowany jako konstrukcja podwieszana do systemów wsporników kablowych.

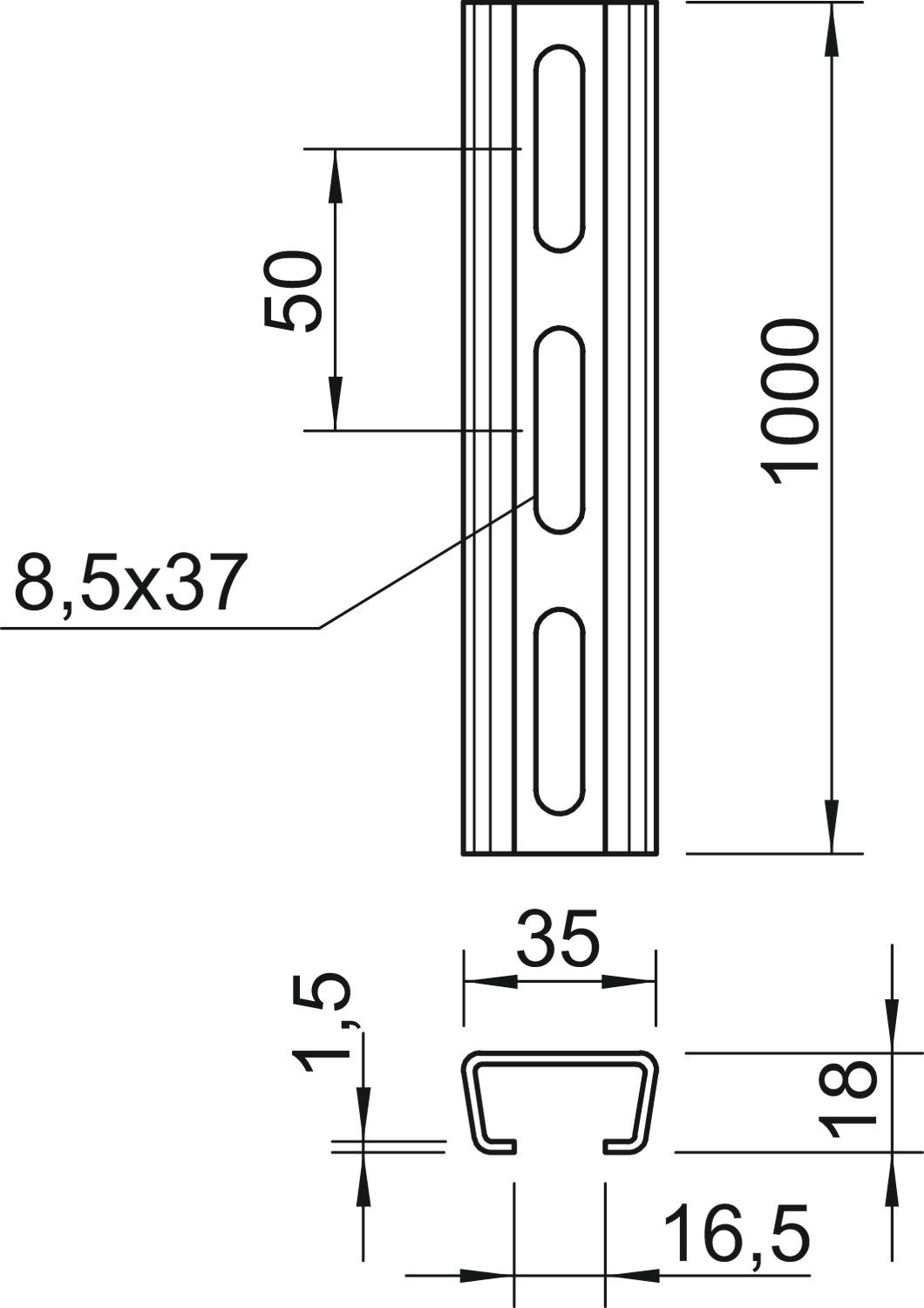

Additional features:
| Information | Value |
|---|---|
| ETIM class: | Mounting rail/-profile |
| Length: | 1000 mm |
| Width: | 35 mm |
| Height: | 18 mm |
| Material thickness: | 1.5 mm |
| Profile shape: | C-profile |
| Type of perforation: | Back perforated |
| With toothing: | no |
| Area moment of inertia Iy: | 0.44 cm4 |
| Area of inertia Iz: | 1.84 cm4 |
| Moment of resistance Wy: | 0.42 cm³ |
| Moment of resistance Wz: | 1.05 cm³ |
| Suitable for circuit integrity: | no |
| Material: | Steel |
| Surface protection: | Continuously galvanized |
| Weight: | 0.82 kg |
