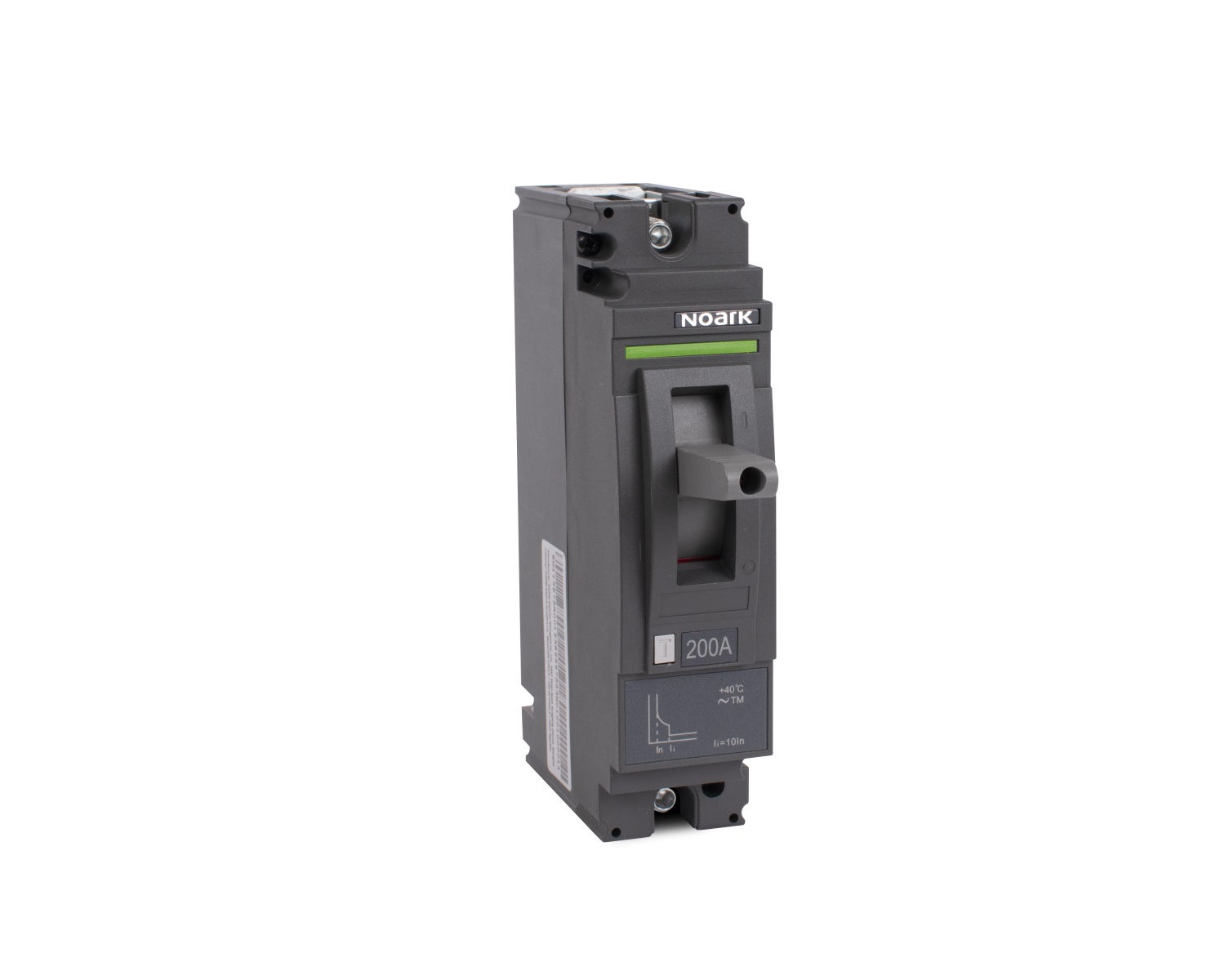

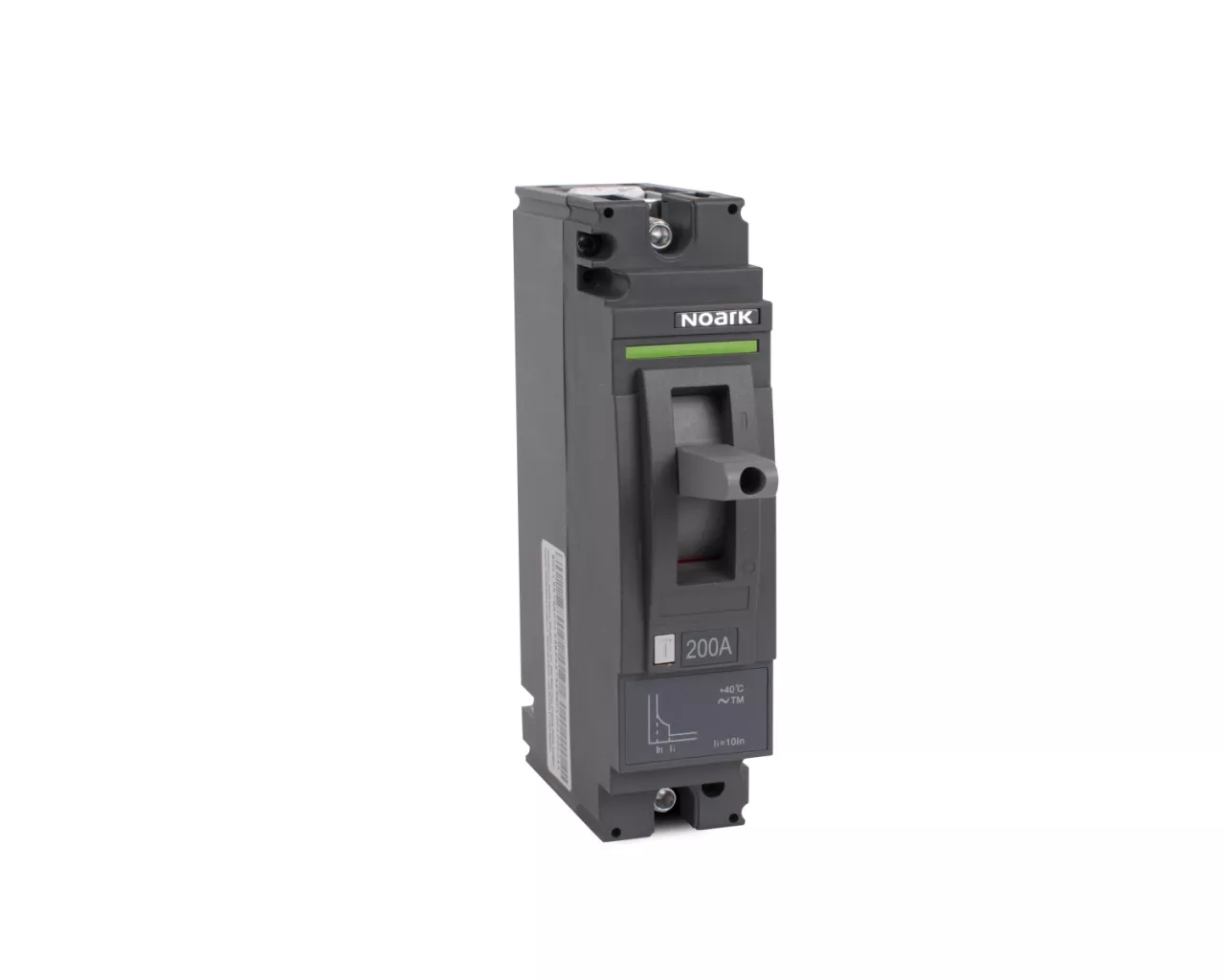

Ex9MD2N TM 200 1P EU Wyłącznik kompaktowy DC, termomagnetyczny, wielkość M2, Icu=Ics=50kA, In=200A, 1P
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 114117 |
| GTIN(EAN) | 8592765141170 |
| Price unit | piece |
| Catalog price | 1 787,68 zł (1 453,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 14,15 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 200 A |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 50 kA |
| Power loss: | 22 W |
| Device construction: | Built-in device fixed built-in technique |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | yes |
| With switched-off indicator: | no |
| With integrated under voltage release: | no |
| Number of poles: | 1 |
| Position of connection for main current circuit: | Front side |
| Type of control element: | Rocker lever |
| Complete device with protection unit: | yes |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP20 |
