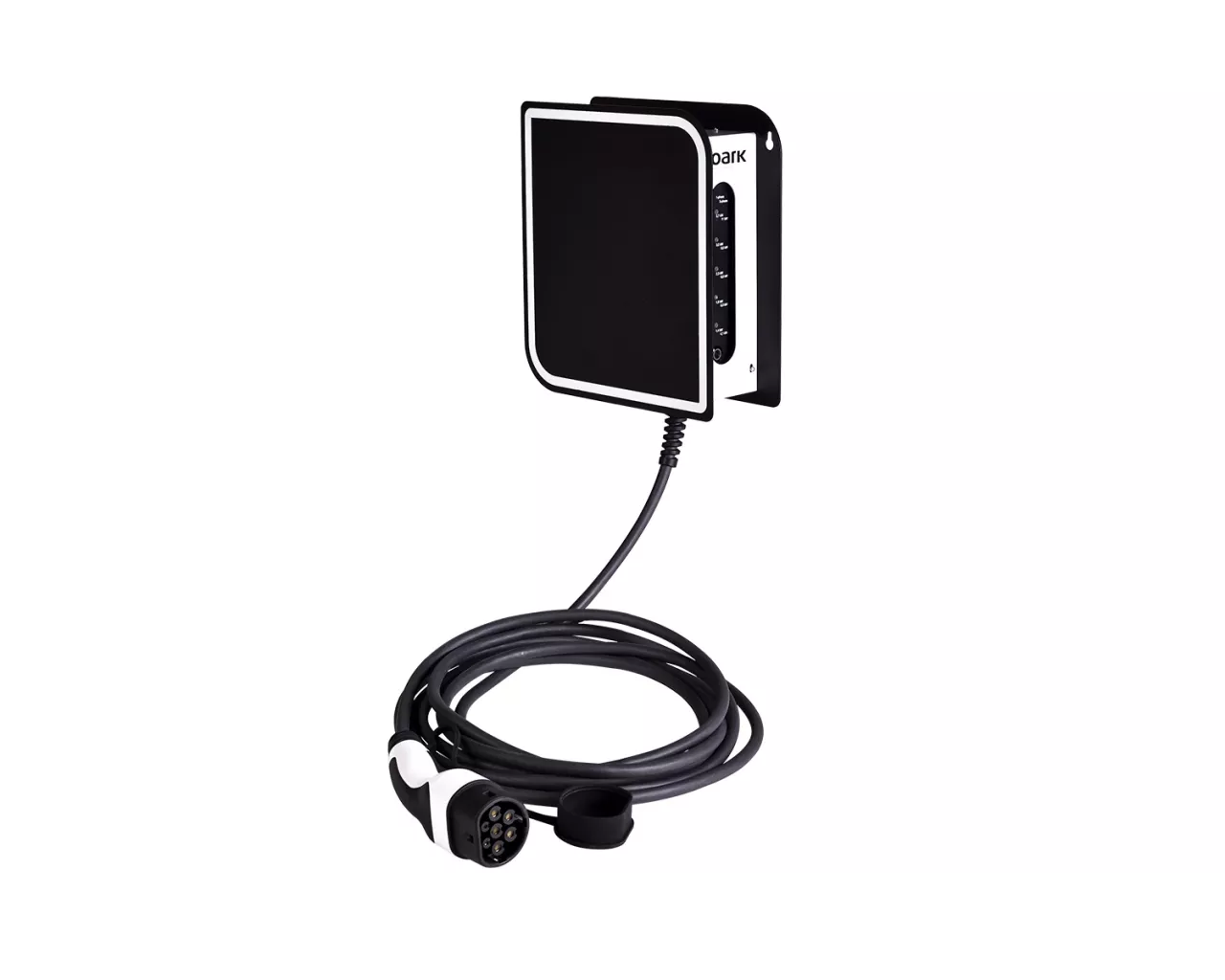

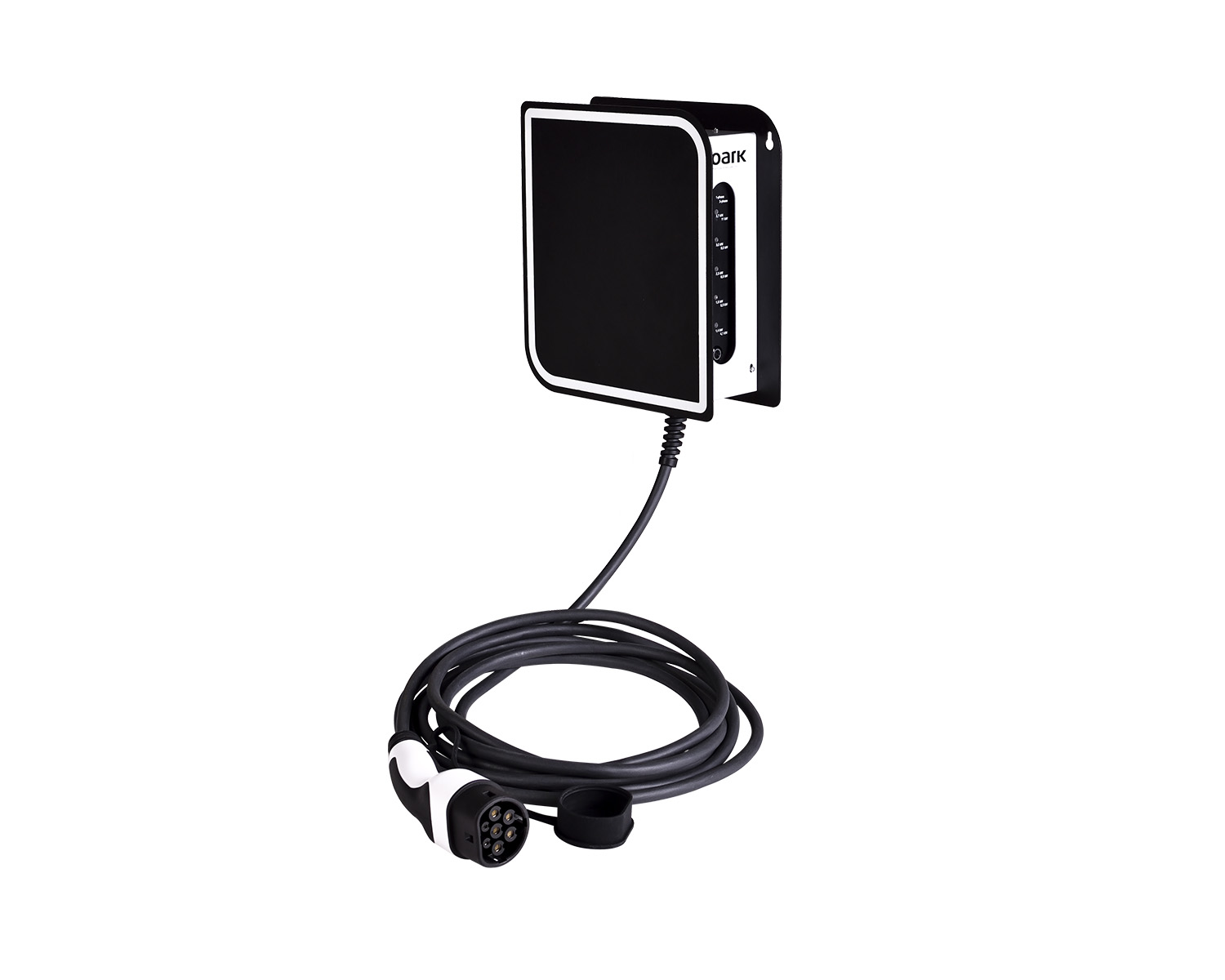

Ex9EVD3 T2C 16A Ładowarka naścienna do pojazdów elektrycznych, z kablem do ładowania, Typ 2, 3 fazowa, 16 A, 11 kW, IP66, TN-S, IT, możliwość rozbudowy o moduł DLB
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 113891 |
GTIN(EAN) | 8592765138910 |
Price unit | piece |
Catalog price | 7 700,08 zł (6 260,23 zł + 23% VAT) |
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 6,4 kg |
ETIM class: | Charging device E-Mobility |
Mounting method: | Wall mounting |
Width: | 280 mm |
Height: | 315 mm |
Depth: | 109 mm |
With display: | no |
Housing material: | Steel |
Nominal connection power: | 11 kW |
Input voltage: | 360 - 440 V |
Frequency: | 50/60 Hz |
Degree of protection (IP): | IP66 |
Number of CEE socket outlets: | 0 |
Number of charging units: | 1 |
With house connection box: | yes |
Number of earth leakage circuit breakers type A: | 0 |
Number of earth leakage circuit breakers type B: | 1 |
Max. power per charging point: | 11 kW |
Number of vehicle connectors Type 1: | 0 |
Number of vehicle connectors Type 1 CCS: | 0 |
Number of vehicle connectors Type 2: | 1 |
Number of vehicle connectors Type 2 CCS: | 0 |
Number of socket outlets Type 2: | 1 |
Number of vehicle connectors GB AC: | 0 |
Number of vehicle connectors GB DC: | 0 |
Number of socket outlets GB: | 0 |
Number of socket outlets Type 3: | 0 |
Number of vehicle connectors CHAdeMO: | 0 |
IFTTT support available: | no |
Length of charging cable: | 5 m |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
Contactor welding detection: | no |
Export of charging logs: | no |
Plug and charge (ISO 15118): | yes |
Charging cable permanently lockable at charging device: | no |
With MID compliant energy meter: | no |
Static load management integrated: | no |
Suitable for dynamic load management: | yes |
Backend included in delivery: | no |
Operation and configuration by app: | no |
Installation side connection model: | 3-phase |
