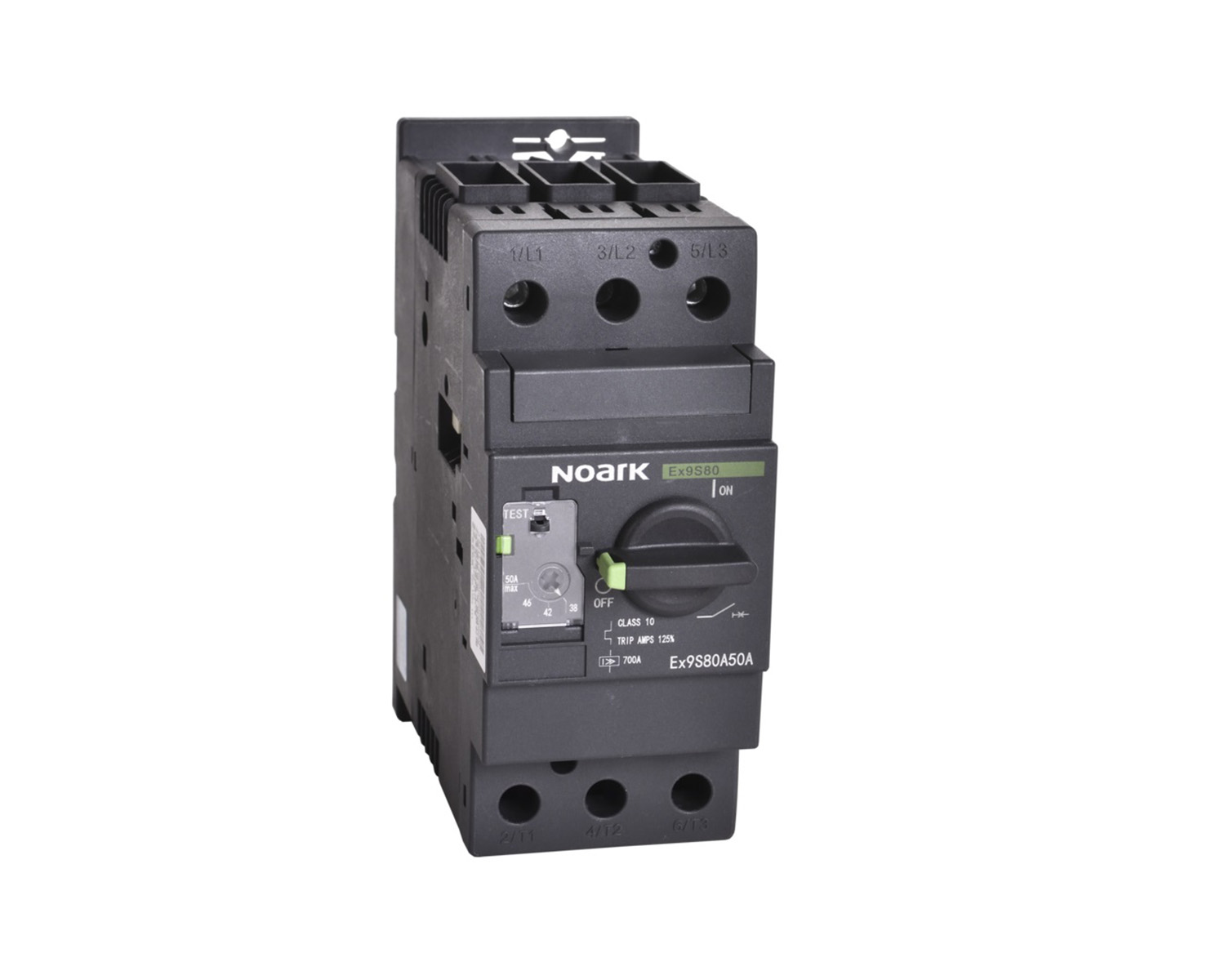

Ex9S80A 72B EU Wyłącznik silnikowy 72A, char. B, wyzwalacz TM
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 113852 |
| GTIN(EAN) | 8592765138521 |
| Price unit | piece |
| Catalog price | 638,12 zł (518,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 900 g |
| ETIM class: | Motor protection circuit-breaker |
| Width: | 55 mm |
| Height: | 140 mm |
| Depth: | 137 mm |
| Rated operation power at AC-3, 400 V: | 37 kW |
| With integrated auxiliary switch: | no |
| Rated permanent current Iu: | 72 A |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated operating voltage: | 400 - 690 V |
| Overload release current setting: | 60 - 72 A |
| Power loss: | 12 W |
| Degree of protection (IP): | IP20 |
| Type of electrical connection of main circuit: | Frame clamp |
| Type of control element: | Turn button |
| Switch off technique: | Thermomagnetic |
| Rated operation power at AC-3, 230 V: | 18.5 kW |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
| Phase failure sensitive: | yes |
| Device construction: | Complete device in housing |
