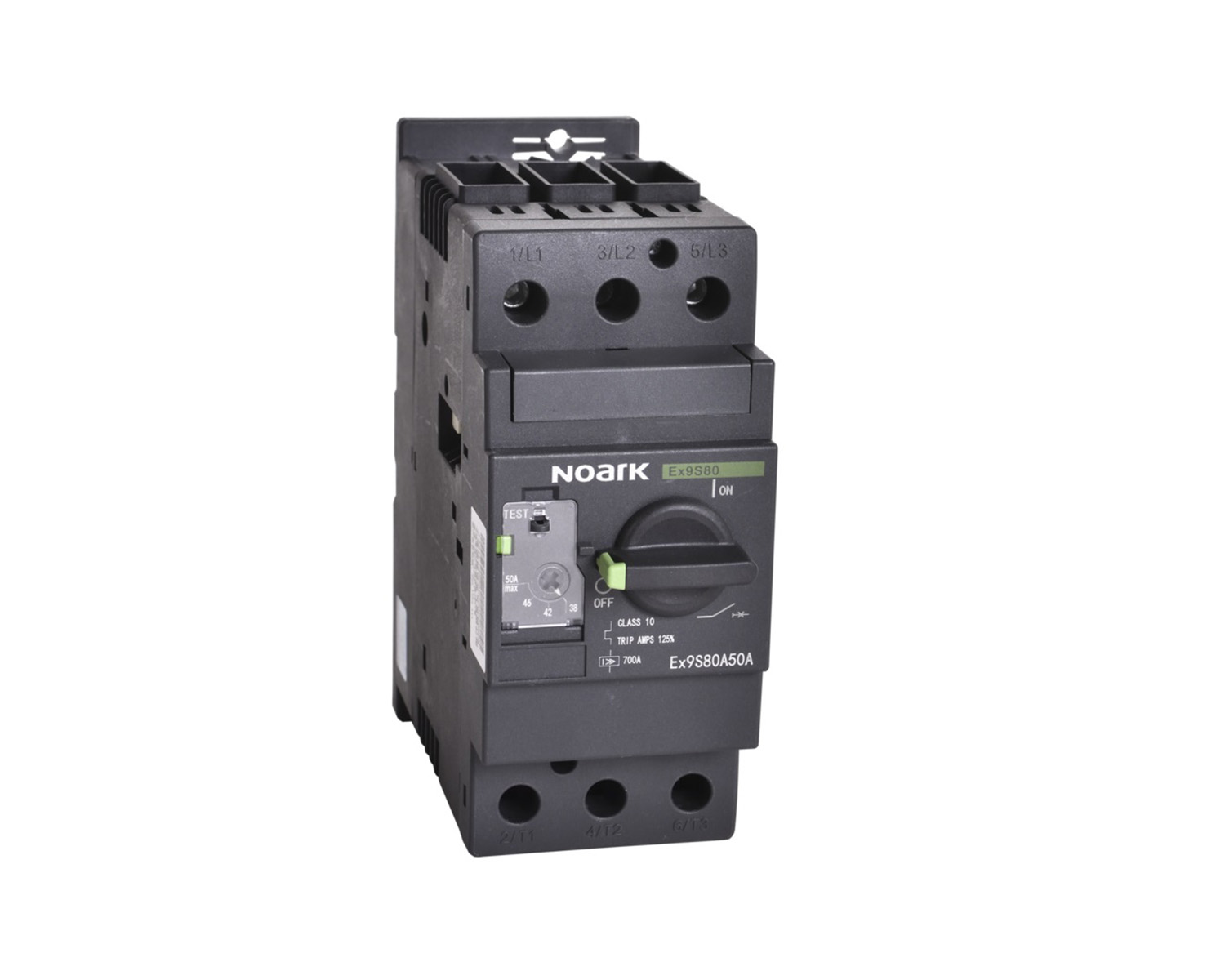

Ex9S80A 72AM EU Wyłącznik silnikowy 72A, char. A, wyzwalacz M
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 113851 |
GTIN(EAN) | 8592765138514 |
Price unit | piece |
Catalog price | 638,12 zł (518,80 zł + 23% VAT) |
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 900 g |
ETIM class: | Motor protection circuit-breaker |
Width: | 55 mm |
Height: | 140 mm |
Depth: | 137 mm |
Rated operation power at AC-3, 400 V: | 37 kW |
With integrated auxiliary switch: | no |
Rated permanent current Iu: | 72 A |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated operating voltage: | 400 - 690 V |
Power loss: | 12 W |
Degree of protection (IP): | IP20 |
Type of electrical connection of main circuit: | Frame clamp |
Type of control element: | Turn button |
Switch off technique: | Magnetic |
Rated operation power at AC-3, 230 V: | 18.5 kW |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
Phase failure sensitive: | yes |
Device construction: | Complete device in housing |
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-05-14 11:42:05 |
Files to download: | |
External links: |
