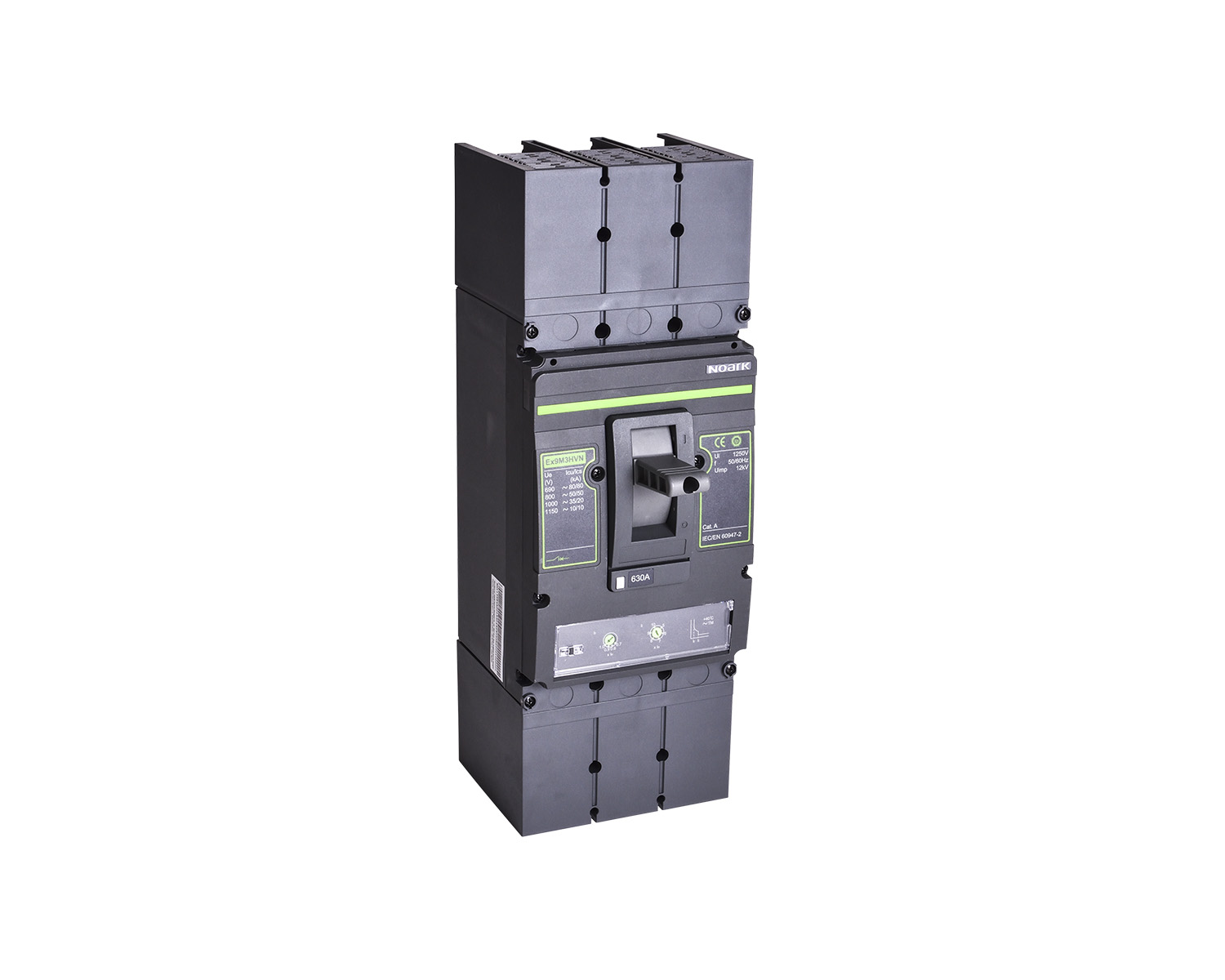

Ex9M2HVS M 225 3P EU Wyłącznik kompaktowy AC MCCB 800V, M2, Icu=Ics=36kA, In=225A, 3P
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 113692 |
| GTIN(EAN) | 8592765136923 |
| Price unit | piece |
| Catalog price | 3 571,48 zł (2 903,64 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,8 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 225 A |
| Rated voltage: | 690 - 1140 V |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 36 kA |
| Adjustment range undelayed short-circuit release: | 2025 - 3150 A |
| Power loss: | 60.9 W |
| Device construction: | Built-in device fixed built-in technique |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Frame clamp |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | yes |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| With switched-off indicator: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Position of connection for main current circuit: | Front side |
| Type of control element: | Rocker lever |
| Complete device with protection unit: | yes |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP20 |
