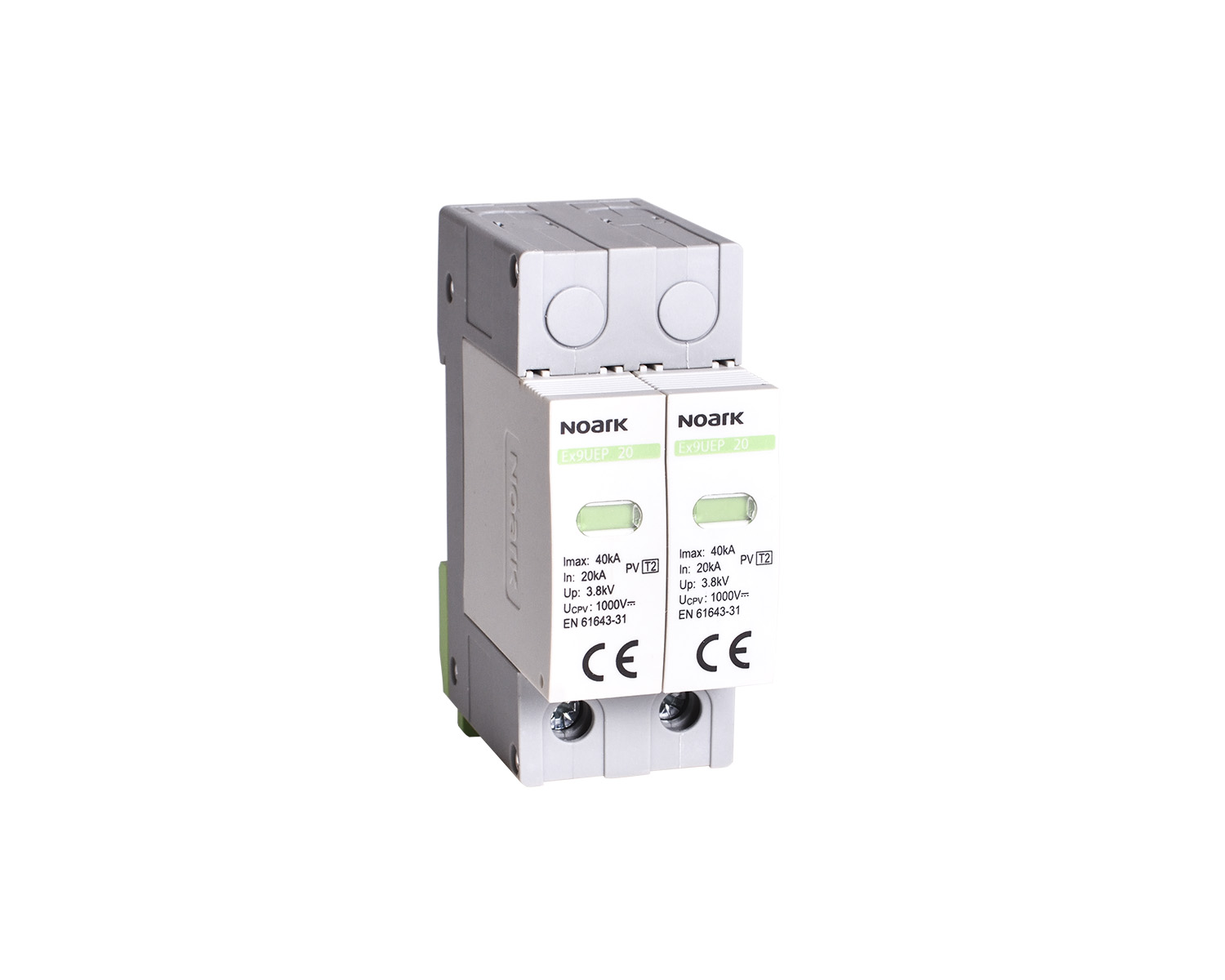

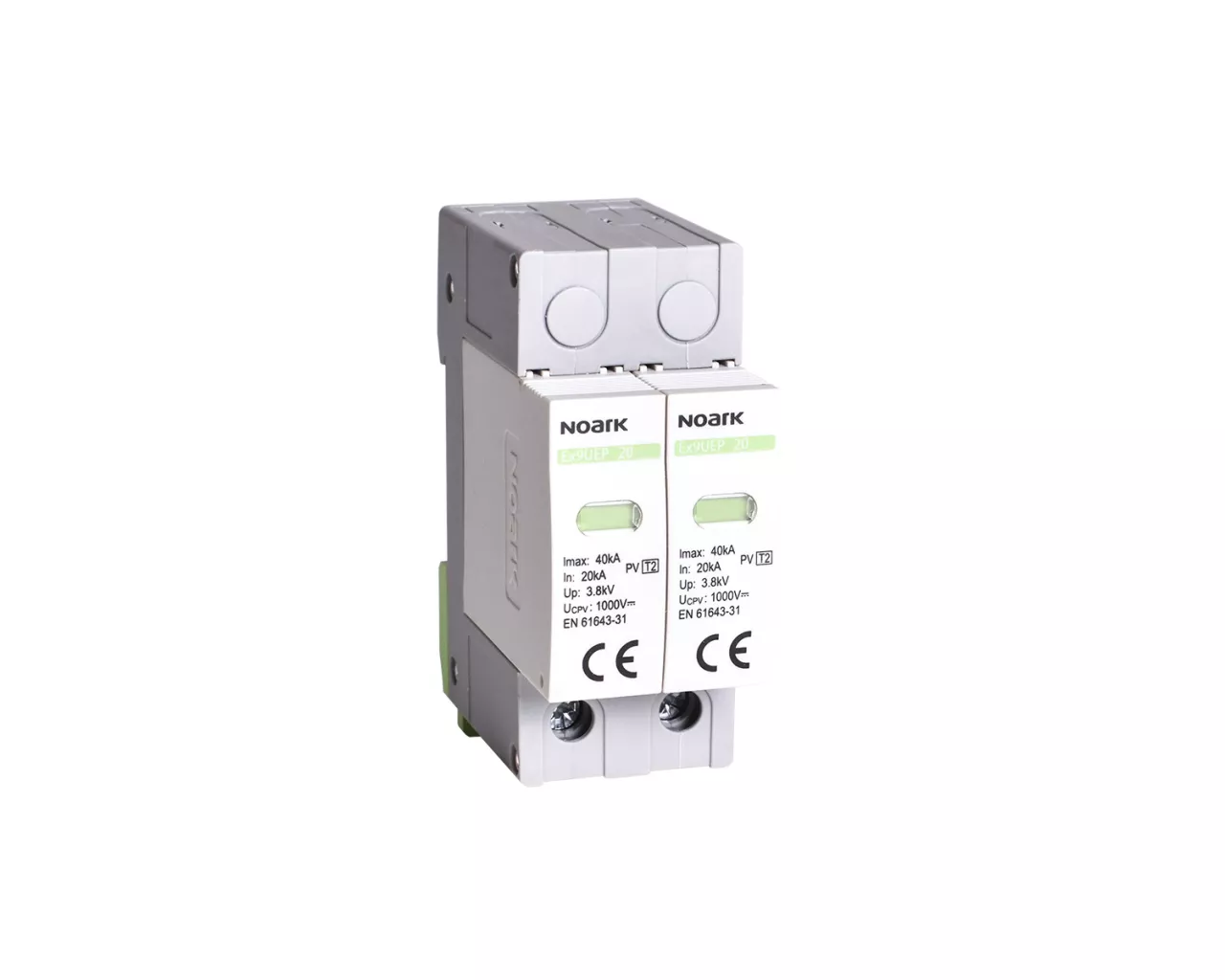

Ex9UEP 20R 2P 1500 (N) Ogr. przepięć SPD Ex9UEP z wbudowanym stykiem pomoc. typ II, 1500 V DC, 2 moduły szer., dla uziemionych systemów PV
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 112909 |
GTIN(EAN) | 8592765129093 |
Price unit | piece |
Catalog price | 806,61 zł (655,78 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 80 g |
ETIM class: | Surge protection device for power supply systems |
Mounting method: | DIN rail (top hat rail) 35 mm |
With remote signalling contact: | yes |
Construction size: | 2 modular spacing |
Voltage protection level: | 5 kV |
Nominal discharge surge current (8/20): | 20 kA |
Nominal voltage DC: | 1500 V |
Category type 2: | yes |
Signalling at the device: | Optical |
Max. continuous voltage DC: | 1500 V |
Degree of protection (IP): | IP20 |
Max. PV-voltage: | 1365 V |
Integrated backup fuse: | no |
Max. conductor cross section solid (solid, stranded): | 25 mm² |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
