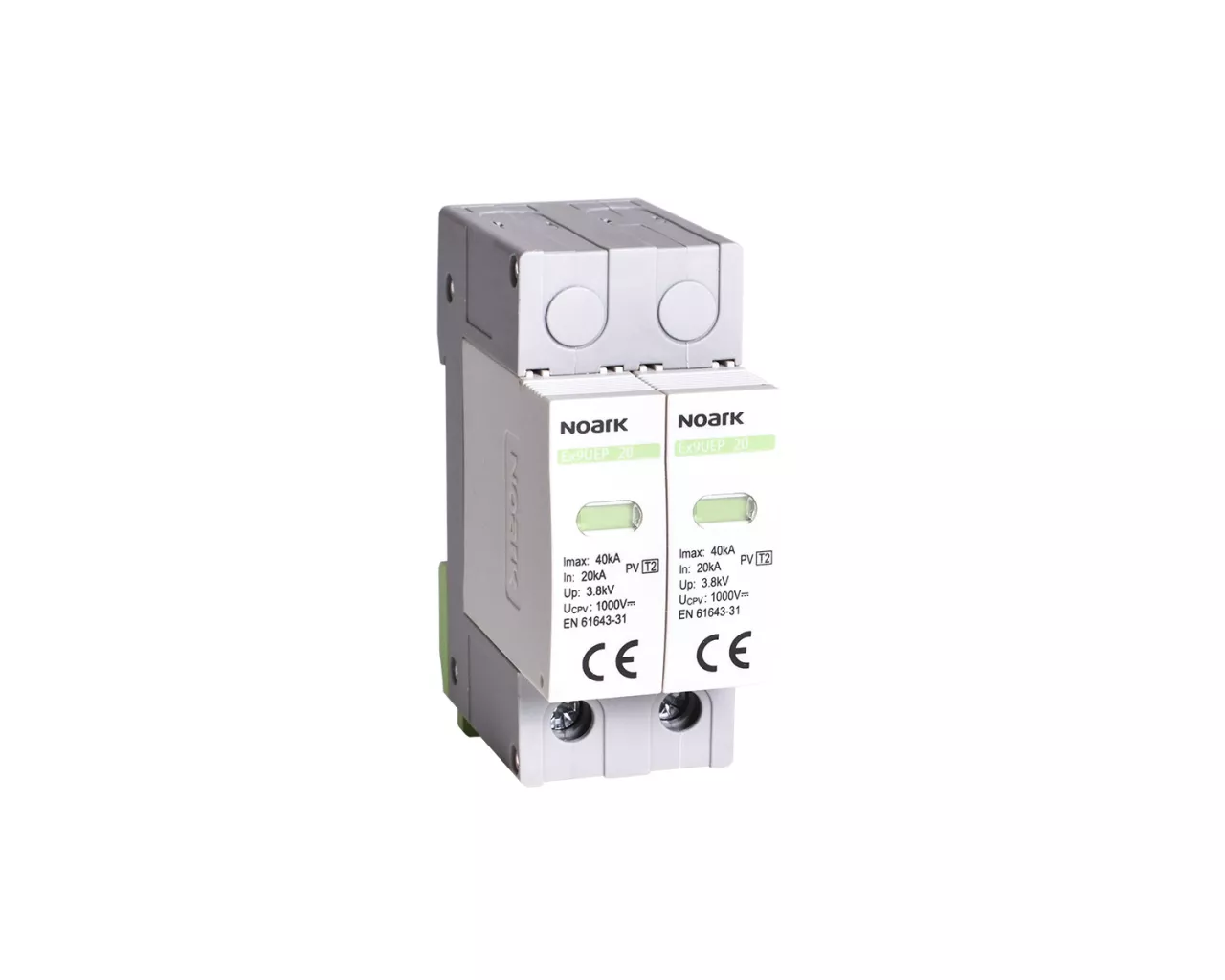

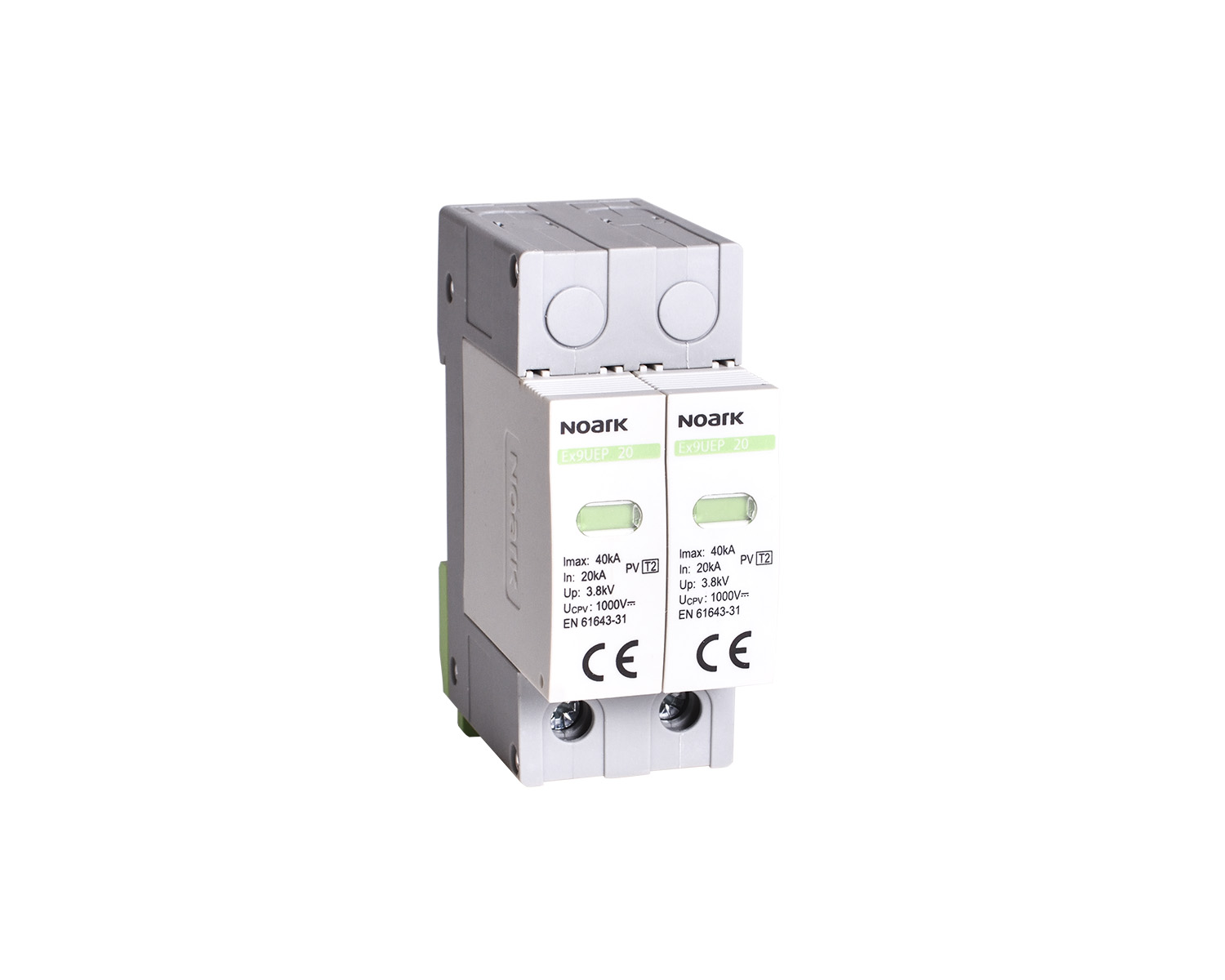

Ex9UEP 20 2P 600 (N) Ogr. przepięć SPD Ex9UEP, typ II, 600 V DC, 2 moduły szer., dla nieuziemionych systemów PV
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 112890 |
GTIN(EAN) | 8592765128904 |
Price unit | piece |
Catalog price | 493,08 zł (400,88 zł + 23% VAT) |
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 250 g |
ETIM class: | Surge protection device for power supply systems |
Mounting method: | DIN rail (top hat rail) 35 mm |
With remote signalling contact: | no |
Construction size: | 2 modular spacing |
Voltage protection level: | 2.3 kV |
Nominal discharge surge current (8/20): | 20 kA |
Nominal voltage DC: | 600 V |
Category type 2: | yes |
Signalling at the device: | Optical |
Max. continuous voltage DC: | 600 V |
Degree of protection (IP): | IP20 |
Max. PV-voltage: | 545 V |
Integrated backup fuse: | no |
Max. conductor cross section solid (solid, stranded): | 25 mm² |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
