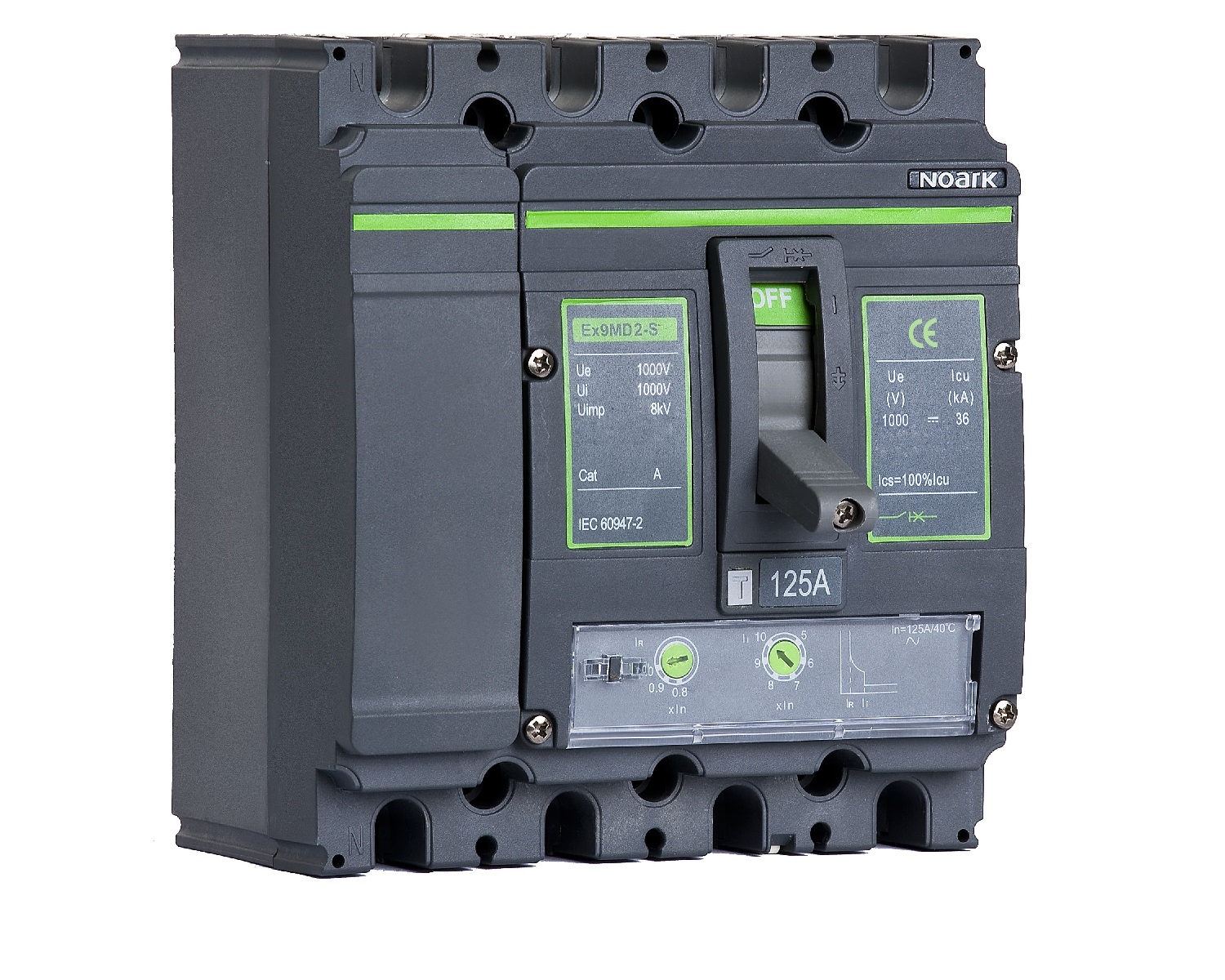

Ex9MD2H TM 125 4P4T EU DC Wyłącznik kompaktowy, wielkość M2, TM, Icu=Ics=100kA, Icn=125A, 4-bieg.
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 112675 |
| GTIN(EAN) | 8592765126757 |
| Price unit | piece |
| Catalog price | 7 819,98 zł (6 357,71 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 21,67 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 125 A |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 100 kA |
| Overload release current setting: | 87 - 125 A |
| Adjustment range undelayed short-circuit release: | 625 - 1250 A |
| Power loss: | 43.6 W |
| Device construction: | Built-in device fixed built-in technique |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Frame clamp |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | yes |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| With switched-off indicator: | no |
| With integrated under voltage release: | no |
| Number of poles: | 4 |
| Position of connection for main current circuit: | Front side |
| Type of control element: | Rocker lever |
| Complete device with protection unit: | yes |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP20 |
