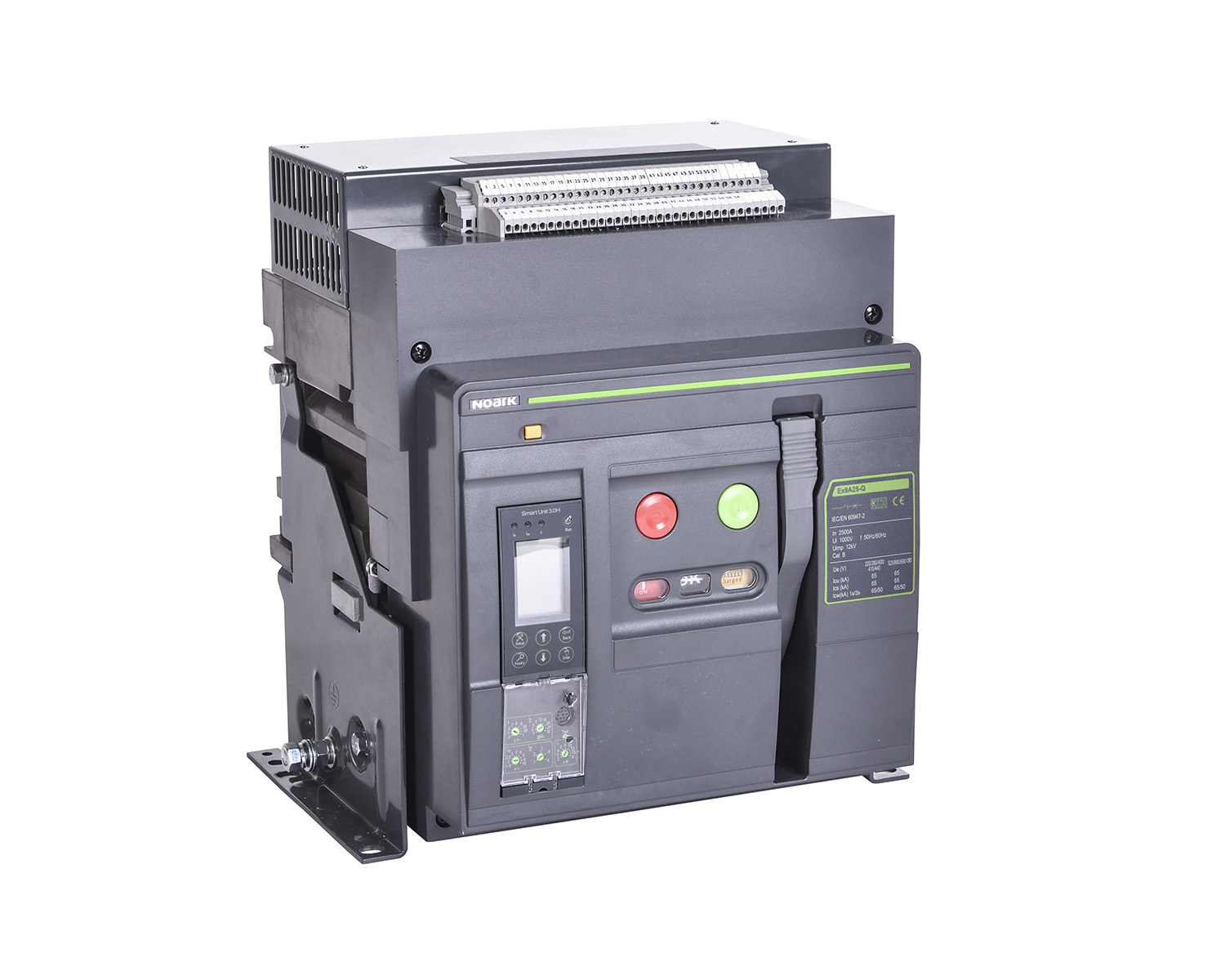

Ex9A32H 4P F 2000(N) EU Wyłącznik powietrzny, wielkość A32, Icu=100kA, In=2000A, 4-bieg., stacjonarny
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 112245 |
| GTIN(EAN) | 8592765122452 |
| Price unit | piece |
| Catalog price | 28 529,26 zł (23 194,52 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 64,5 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 2000 A |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 100 kA |
| Overload release current setting: | 800 - 2000 A |
| Adjustment range undelayed short-circuit release: | 4000 - 30000 A |
| Power loss: | 332.5 W |
| Device construction: | Built-in device fixed built-in technique |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Other |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | no |
| Number of auxiliary contacts as change-over contact: | 6 |
| With switched-off indicator: | yes |
| With integrated under voltage release: | no |
| Number of poles: | 4 |
| Position of connection for main current circuit: | Back side |
| Type of control element: | Push button |
| Complete device with protection unit: | no |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP40 |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-03 14:17:28 |
| Files to download: | |
| External links: |
