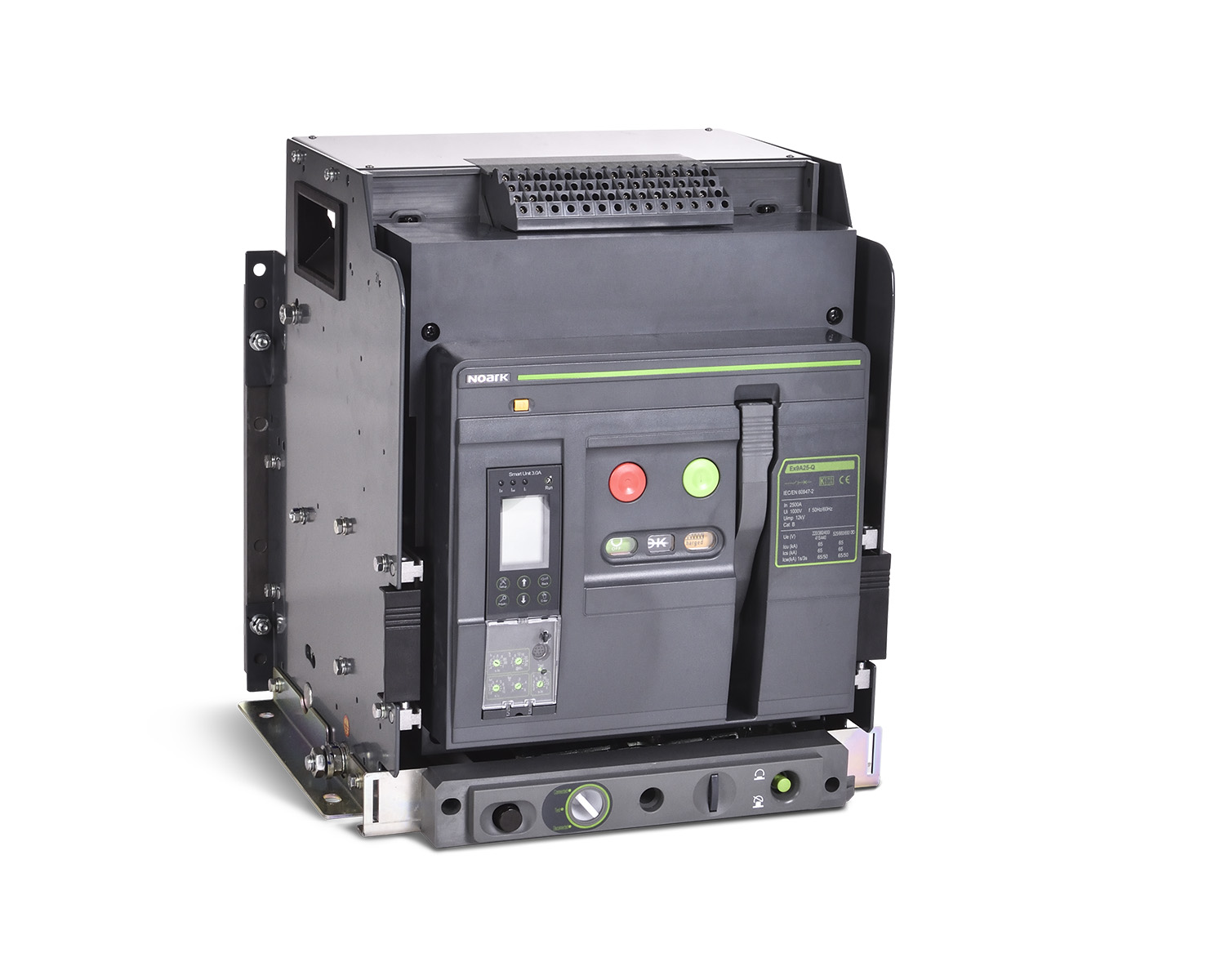

Ex9A25Q 4P D/O 2500(N) EU Wyłącznik powietrzny, wielkość A25, Icu=65kA, In=2500A, 4-bieg., wysuwny
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 112178 |
| GTIN(EAN) | 8592765121783 |
| Price unit | piece |
| Catalog price | 48 667,18 zł (39 566,81 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 107 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 2500 A |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 65 kA |
| Overload release current setting: | 1000 - 2500 A |
| Adjustment range undelayed short-circuit release: | 5000 - 37500 A |
| Power loss: | 700 W |
| Device construction: | Built-in device slide-in technique (withdrawable) |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Other |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | no |
| Number of auxiliary contacts as change-over contact: | 6 |
| With switched-off indicator: | yes |
| With integrated under voltage release: | no |
| Number of poles: | 4 |
| Position of connection for main current circuit: | Back side |
| Type of control element: | Push button |
| Complete device with protection unit: | no |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| Degree of protection (IP): | IP40 |
