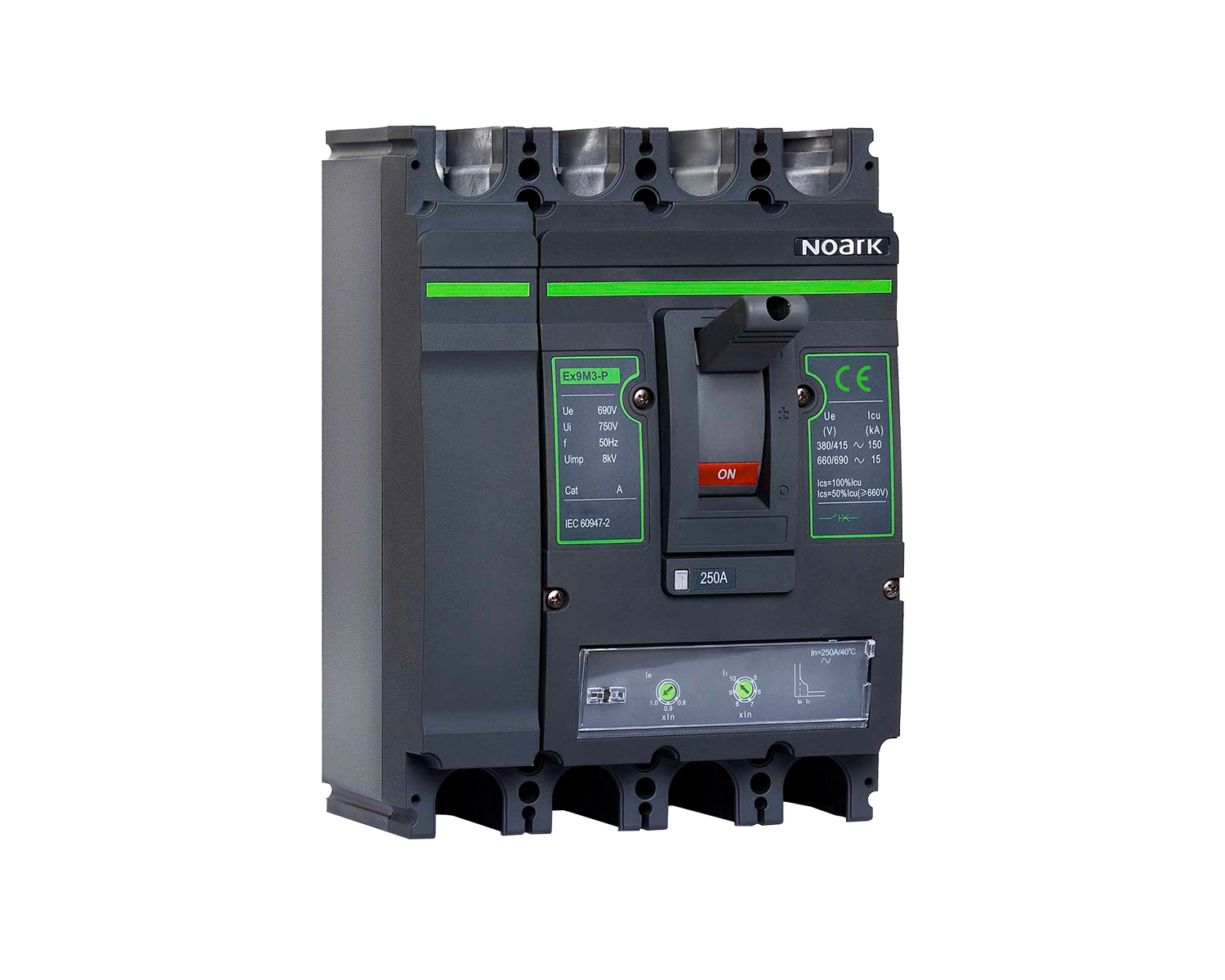

Ex9M1H TM 63 4P4T EU Wyłącznik kompaktowy, wielkość M1, TM, Icu=Ics=100kA, In=63A, 4-bieg.
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 111874 |
GTIN(EAN) | 8592765118745 |
Price unit | piece |
Catalog price | 1 945,36 zł (1 581,59 zł + 23% VAT) |
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 1,55 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 63 A |
Rated voltage: | 415 - 690 V |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 100 kA |
Overload release current setting: | 44 - 63 A |
Power loss: | 26.8 W |
Device construction: | Built-in device fixed built-in technique |
Integrated earth fault protection: | no |
Type of electrical connection of main circuit: | Frame clamp |
Suitable for DIN rail (top hat rail) mounting: | no |
DIN rail (top hat rail) mounting optional: | yes |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
With switched-off indicator: | no |
With integrated under voltage release: | no |
Number of poles: | 4 |
Position of connection for main current circuit: | Front side |
Type of control element: | Rocker lever |
Complete device with protection unit: | yes |
Motor drive integrated: | no |
Motor drive optional: | yes |
Degree of protection (IP): | IP20 |
