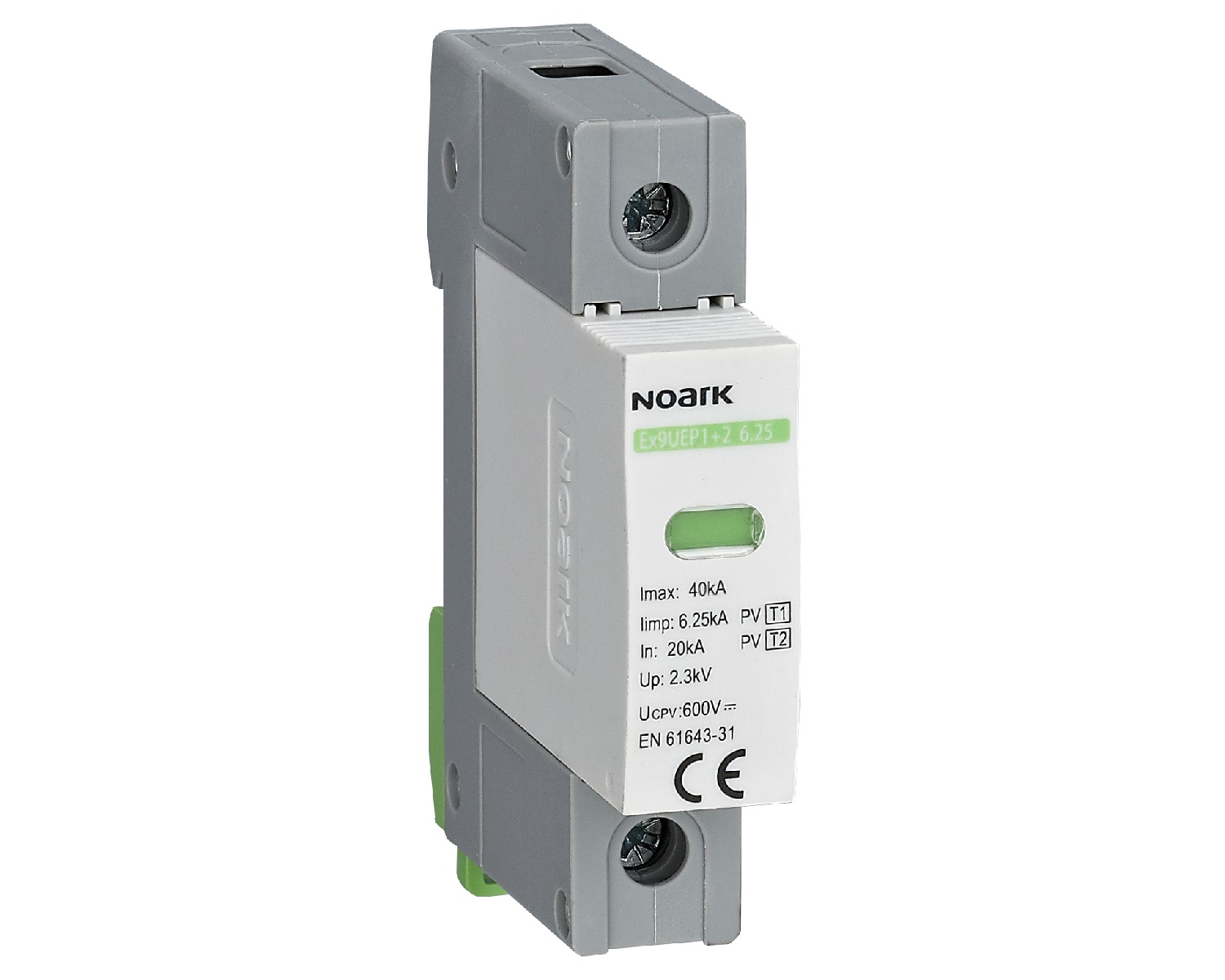

Ex9UEP1+2 6.25R 1P 600 EU Ogr. przepięć SPD Ex9UEP z wbudowanym stykiem pomoc. typ I+II, 600 V DC, 1 moduł szer.
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 111742 |
GTIN(EAN) | 8592765117427 |
Price unit | piece |
Catalog price | 719,46 zł (584,93 zł + 23% VAT) |
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 144 g |
ETIM class: | Combined arrester for power supply systems |
System configuration DC: | yes |
System configuration IT: | no |
System configuration TN: | no |
System configuration TN-C: | no |
System configuration TN-C-S: | no |
System configuration TN-S: | no |
System configuration TT: | no |
System configuration other: | yes |
Number of poles: | 1 |
Lightning impulse current (10/350 µs): | 6.25 kA |
Max. continuous voltage DC: | 600 V |
Nominal voltage DC: | 600 V |
Mounting method: | DIN rail (top hat rail) 35 mm |
Max. conductor cross section solid (solid, stranded): | 25 mm² |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
Remote signalling: | yes |
Signalling at the device: | Optical |
Test class: | Type 1 + 2 |
Integrated backup fuse: | no |
Energy-coordinated protection effect with regard to the terminal equipment: | no |
Degree of protection (IP): | IP20 |
Order
Additional information:
Information | Value |
---|---|
Updated: | 2024-05-14 12:07:26 |
Files to download: | |
External links: |
