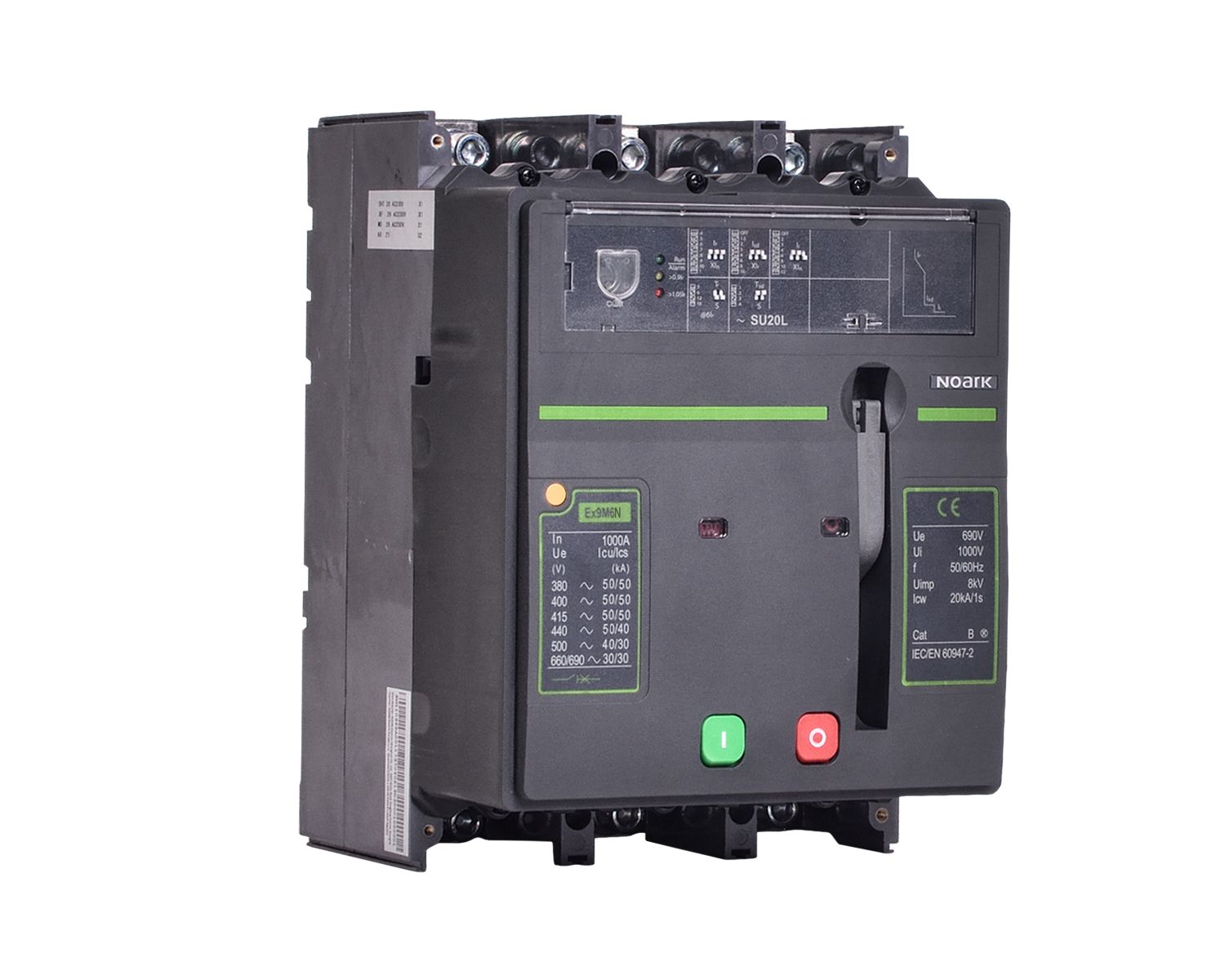

Ex9M6H SU20L 1000 4P MOD DC220 Wyłącznik kompaktowy, rozmiar M6, SU20L, Ics=70kA,Icu=100kA, In=1000A, 4-bieg. Z napędem silnikowym 220 V DC
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 110457 |
GTIN(EAN) | 8592765104571 |
Price unit | piece |
Catalog price | 19 915,04 zł (16 191,09 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
Net weight: | 18,5 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 1000 A |
Rated voltage: | 415 - 690 V |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 100 kA |
Overload release current setting: | 400 - 1000 A |
Adjustment range undelayed short-circuit release: | 2000 - 12000 A |
Power loss: | 80 W |
Device construction: | Built-in device fixed built-in technique |
Integrated earth fault protection: | no |
Type of electrical connection of main circuit: | Screw connection |
Suitable for DIN rail (top hat rail) mounting: | no |
DIN rail (top hat rail) mounting optional: | no |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
With switched-off indicator: | yes |
With integrated under voltage release: | no |
Number of poles: | 4 |
Position of connection for main current circuit: | Front side |
Type of control element: | Rocker lever |
Complete device with protection unit: | yes |
Motor drive integrated: | yes |
Motor drive optional: | no |
Degree of protection (IP): | IP20 |
