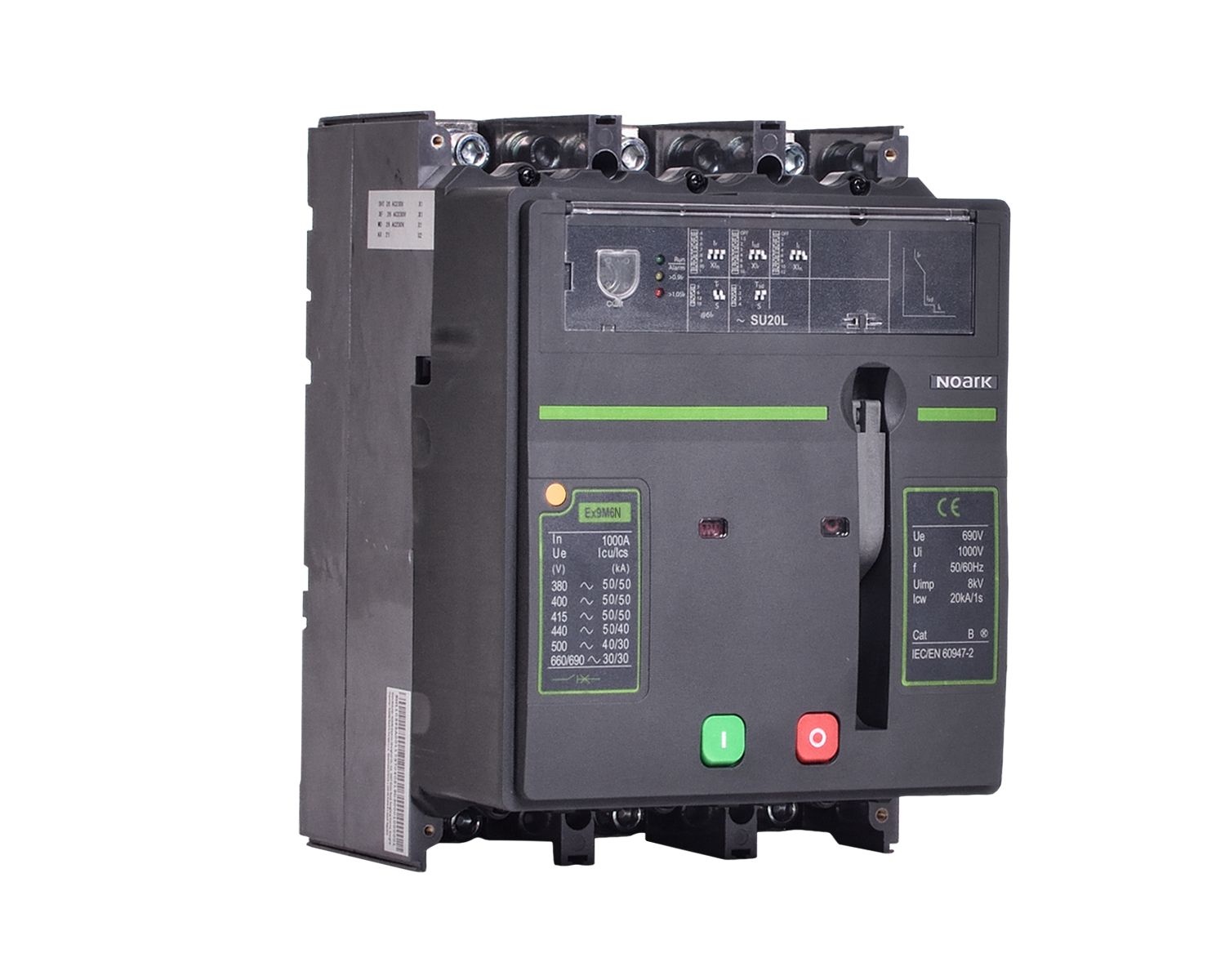

Ex9M6Q SU20L 800 3P MOD AC400 Wyłącznik kompaktowy, rozmiar M6, SU20L, Icu=Ics=70kA, In=800A, 3-bieg. Z napędem silnikowym 400 V AC
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 110404 |
| GTIN(EAN) | 8592765104045 |
| Price unit | piece |
| Catalog price | 13 738,12 zł (11 169,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 14,5 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 800 A |
| Rated voltage: | 415 - 690 V |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 70 kA |
| Overload release current setting: | 320 - 800 A |
| Adjustment range undelayed short-circuit release: | 1600 - 9600 A |
| Power loss: | 51.2 W |
| Device construction: | Built-in device fixed built-in technique |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Suitable for DIN rail (top hat rail) mounting: | no |
| DIN rail (top hat rail) mounting optional: | no |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| With switched-off indicator: | yes |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Position of connection for main current circuit: | Front side |
| Type of control element: | Rocker lever |
| Complete device with protection unit: | yes |
| Motor drive integrated: | yes |
| Motor drive optional: | no |
| Degree of protection (IP): | IP20 |
