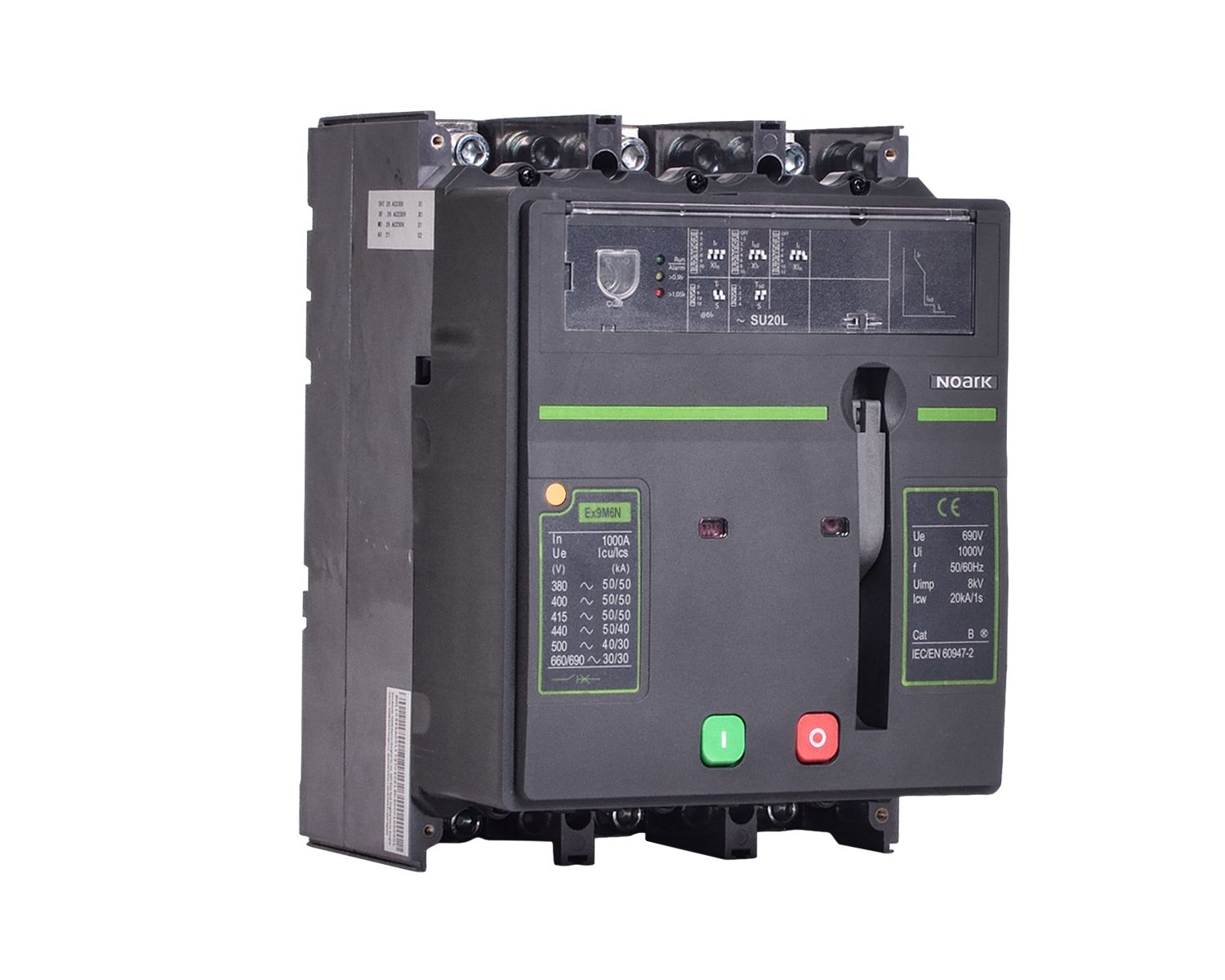

Ex9M6N SU20L 1250 3P MOD DC110 Wyłącznik kompaktowy, rozmiar M6, SU20L, Icu=Ics=50kA, In=1250A, 3-bieg. Z napędem silnikowym 110 V DC
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 110382 |
GTIN(EAN) | 8592765103826 |
Price unit | piece |
Catalog price | 14 981,25 zł (12 179,88 zł + 23% VAT) |
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 14,5 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 1250 A |
Rated voltage: | 415 - 690 V |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 50 kA |
Overload release current setting: | 500 - 1250 A |
Adjustment range undelayed short-circuit release: | 2500 - 15000 A |
Power loss: | 62.5 W |
Device construction: | Built-in device fixed built-in technique |
Integrated earth fault protection: | no |
Type of electrical connection of main circuit: | Screw connection |
Suitable for DIN rail (top hat rail) mounting: | no |
DIN rail (top hat rail) mounting optional: | no |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
With switched-off indicator: | yes |
With integrated under voltage release: | no |
Number of poles: | 3 |
Position of connection for main current circuit: | Front side |
Type of control element: | Rocker lever |
Complete device with protection unit: | yes |
Motor drive integrated: | yes |
Motor drive optional: | no |
Degree of protection (IP): | IP20 |
