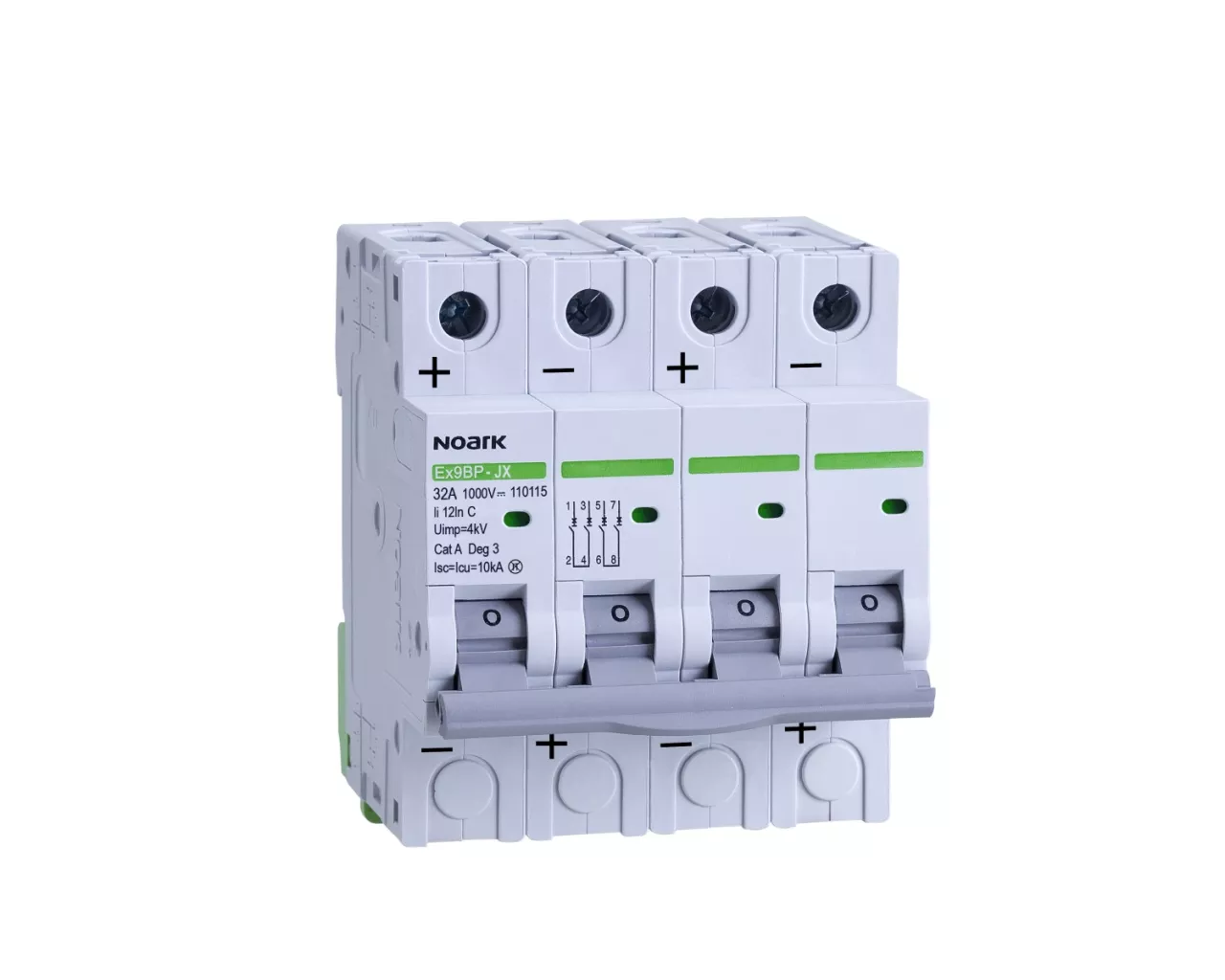

Ex9BP-JX(+) 4P C50 Wył. nadpr. DC 10 kA, ch-ka C, 50 A, 1000 V DC, 4 moduły szer.
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 110117 |
| GTIN(EAN) | 8592765101174 |
| Price unit | piece |
| Catalog price | 346,86 zł (282,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 480 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Release characteristic: | C |
| Number of poles (total): | 4 |
| Number of protected poles: | 4 |
| Rated current: | 50 A |
| Rated voltage: | 1000 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 10 kA |
| Voltage type: | DC |
| Current limiting class: | 3 |
| Concurrently switching neutral conductor: | no |
| Over voltage category: | 3 |
| Pollution degree: | 3 |
| Width in number of modular spacings: | 4 |
| Built-in depth: | 74 mm |
| Additional equipment possible: | yes |
| Degree of protection (IP): | IP20 |
| Rated insulation voltage Ui: | 1000 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Power loss: | 15.2 W |
| Flush-mounted installation: | no |
| Ambient temperature during operating: | -35 - 70 °C |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| Explosion-proof: | no |
