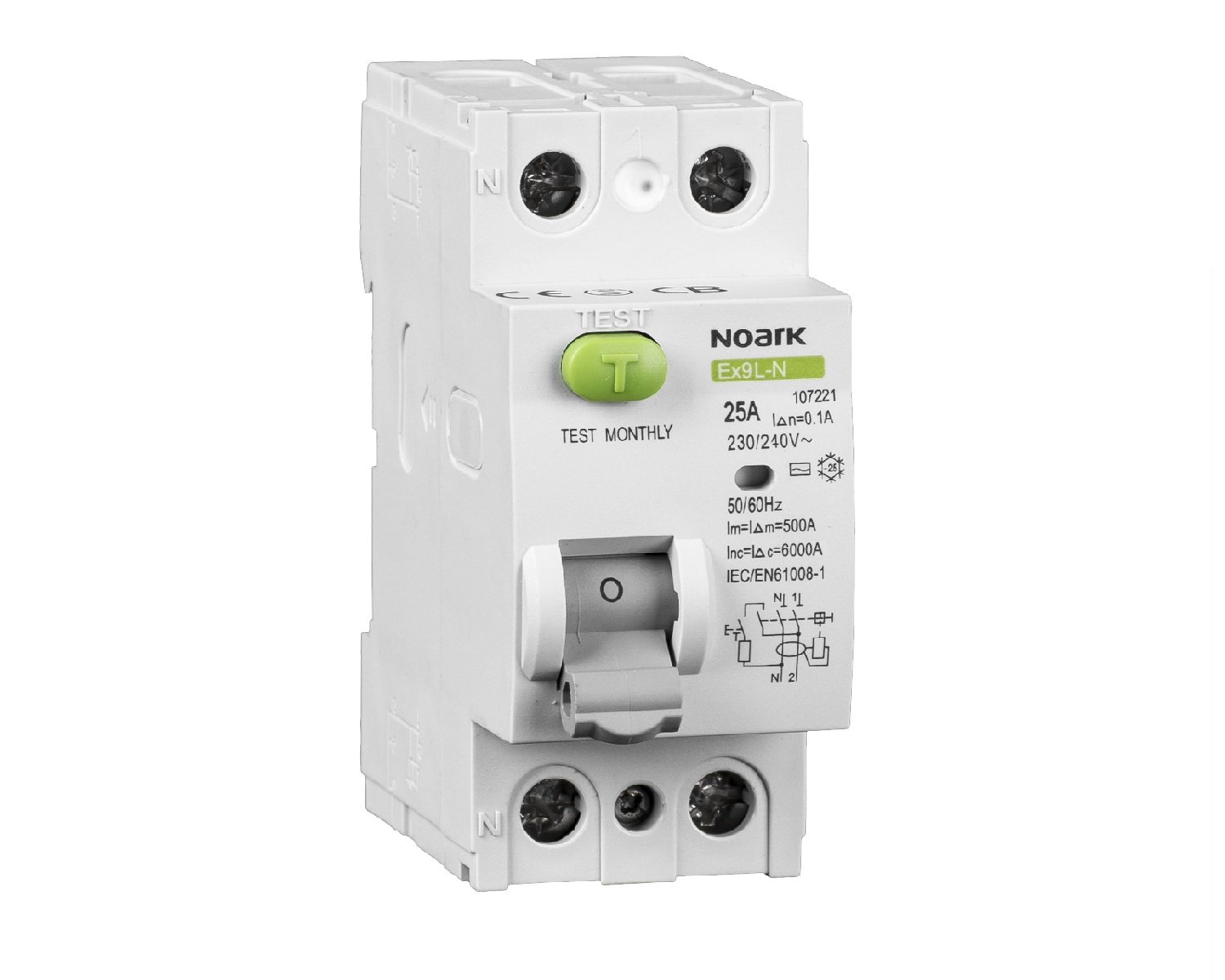

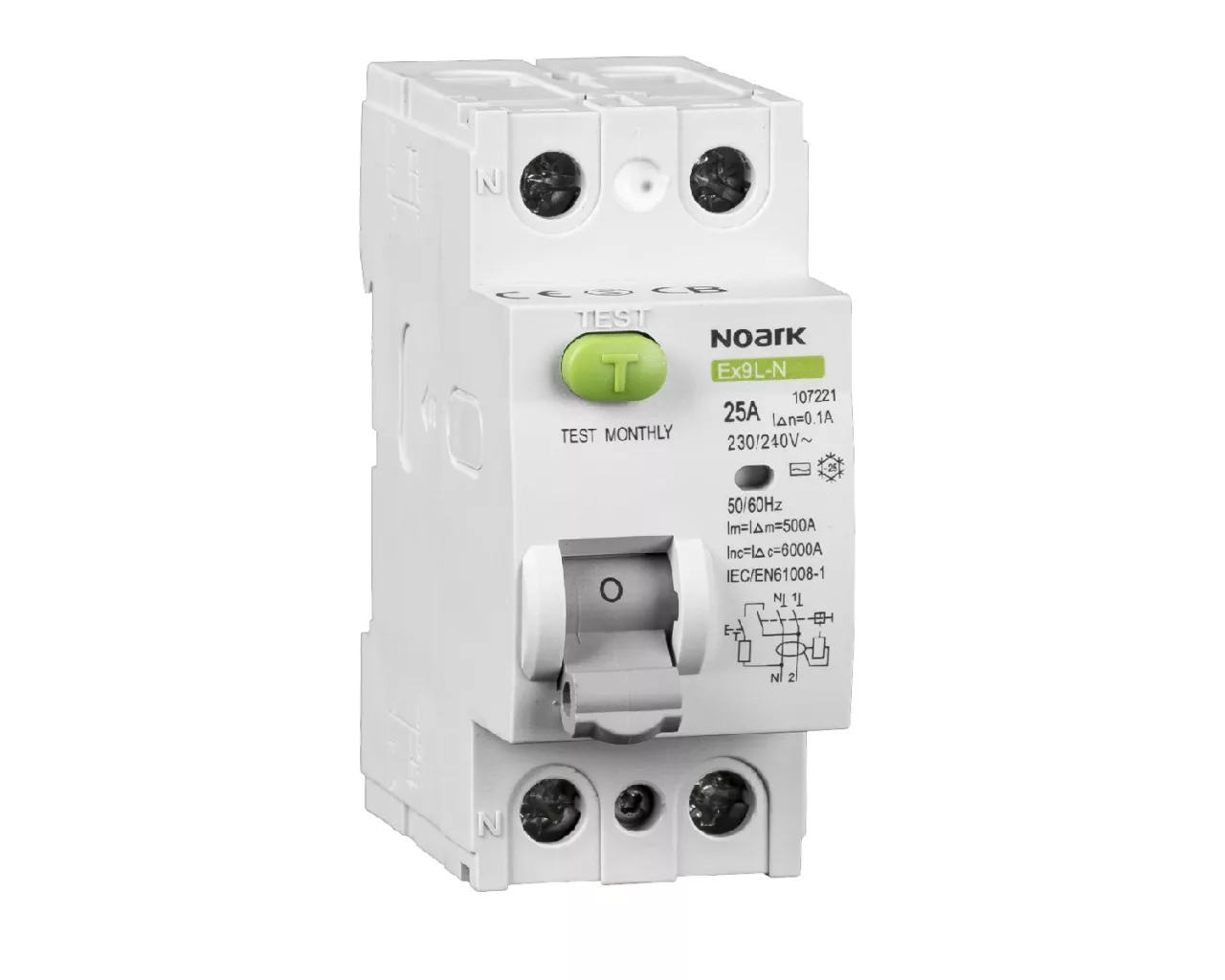

Ex9L-N 2P 25A A 300mA Wył. różn., Icn=6kA, 2-bieg., In=25A, IΔn=300mA, typ A
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 108357 |
| GTIN(EAN) | 8592765083579 |
| Price unit | piece |
| Catalog price | 253,38 zł (206,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Residual current circuit breaker (RCCB) |
| Mounting method: | DIN rail |
| Voltage type: | AC |
| Built-in depth: | 79 mm |
| Rated current: | 25 A |
| Rated voltage: | 230 V |
| Rated insulation voltage Ui: | 500 V |
| Number of poles: | 2 |
| Rated fault current: | 0.3 A |
| Leakage current type: | A |
| Selective protection: | no |
| Short-circuit breaking capacity (Icw): | 6 kA |
| Surge current capacity: | 3 kA |
| Pollution degree: | 2 |
| Width in number of modular spacings: | 2 |
| Short-time delayed tripping: | no |
| RAL-number (similar): | 7035 |
| Explosion-proof: | no |
| Power loss: | 3.4 W |
| Frequency: | 50 Hz |
| Degree of protection (IP): | IP20 |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| With interlocking device: | no |
| Ambient temperature during operating: | -25 - 40 °C |
| Additional equipment possible: | no |
| Rated impulse withstand voltage Uimp: | 6 kV |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-03 14:17:20 |
| Files to download: | |
| External links: |
