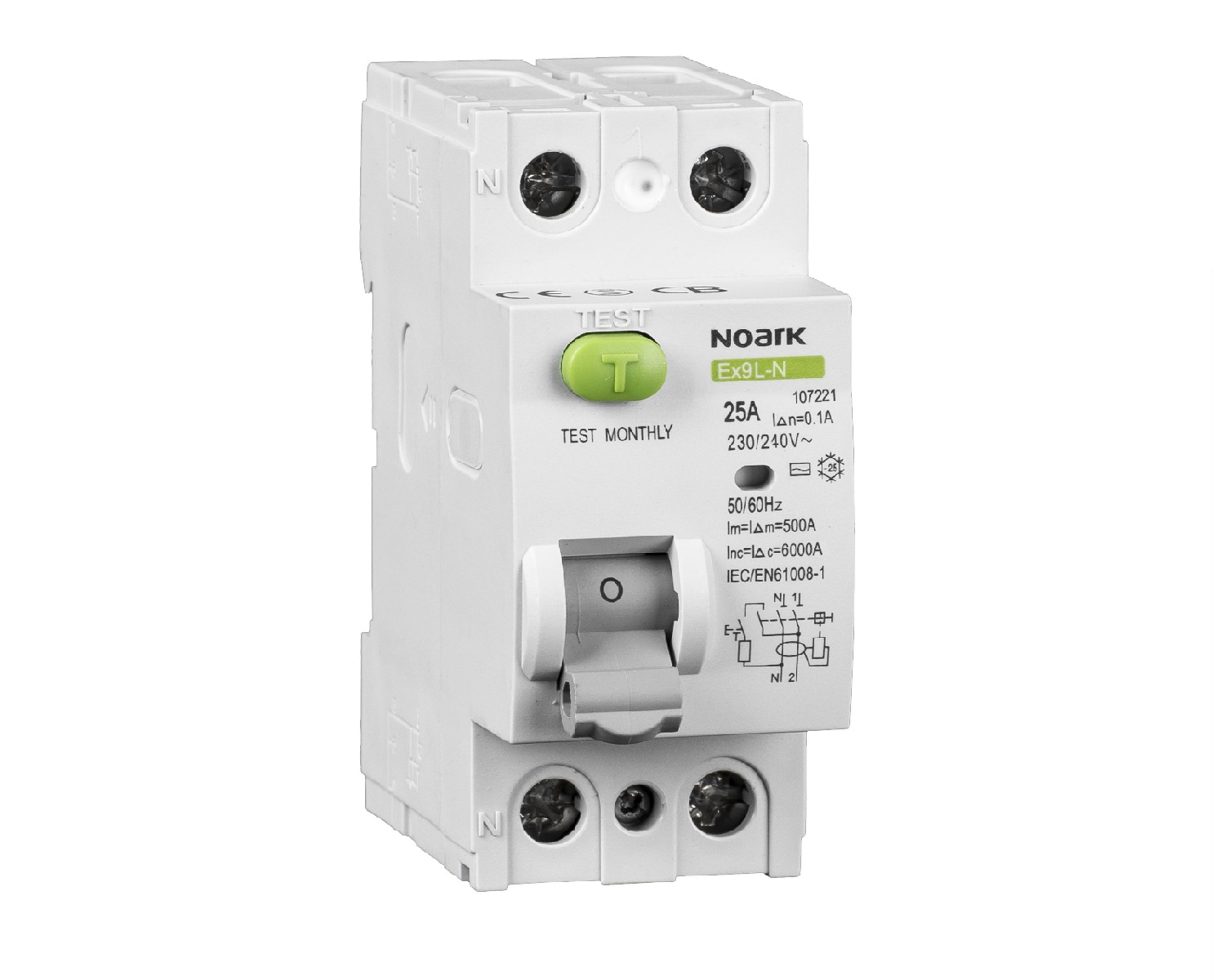

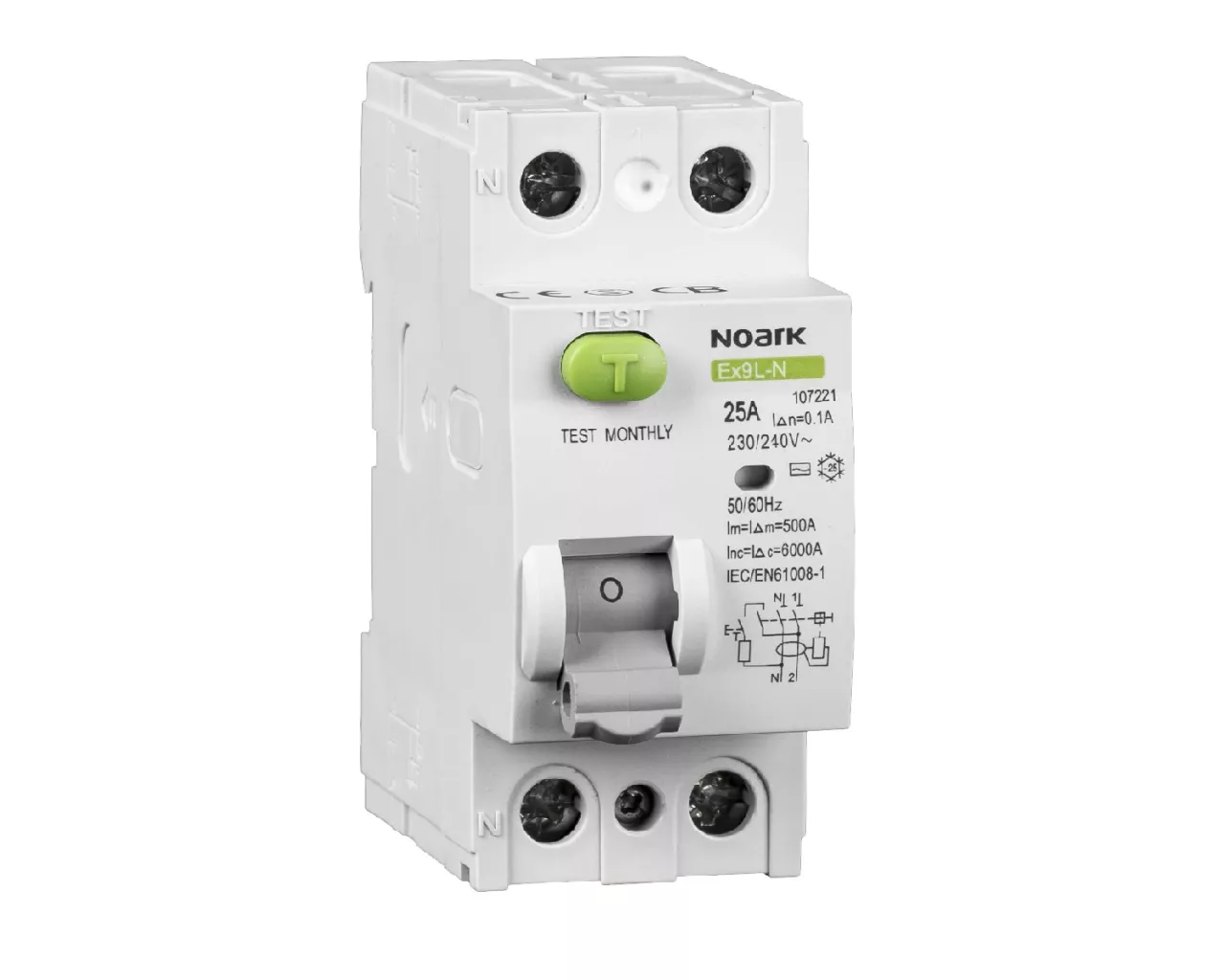

Ex9L-N 2P 63A 500mA Wył. różn., Icn=6kA, 2-bieg., In=63A, IΔn=500mA, typ AC
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 108328 |
GTIN(EAN) | 8592765083289 |
Price unit | piece |
Catalog price | 259,78 zł (211,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
ETIM class: | Residual current circuit breaker (RCCB) |
Number of poles: | 2 |
Rated voltage: | 230 V |
Rated current: | 63 A |
Rated fault current: | 0.5 A |
Mounting method: | DIN rail |
Leakage current type: | AC |
Selective protection: | no |
Short-circuit breaking capacity (Icw): | 6 kA |
Surge current capacity: | 3 kA |
Frequency: | 50 Hz |
Additional equipment possible: | no |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 2 |
Built-in depth: | 79 mm |
Short-time delayed tripping: | no |
Rated insulation voltage Ui: | 500 V |
Rated impulse withstand voltage Uimp: | 6 kV |
Power loss: | 15 W |
Voltage type: | AC |
With interlocking device: | no |
Ambient temperature during operating: | -25 - 40 °C |
Pollution degree: | 2 |
Connectable conductor cross section solid-core: | 1 - 35 mm² |
RAL-number (similar): | 7035 |
Explosion-proof: | no |
