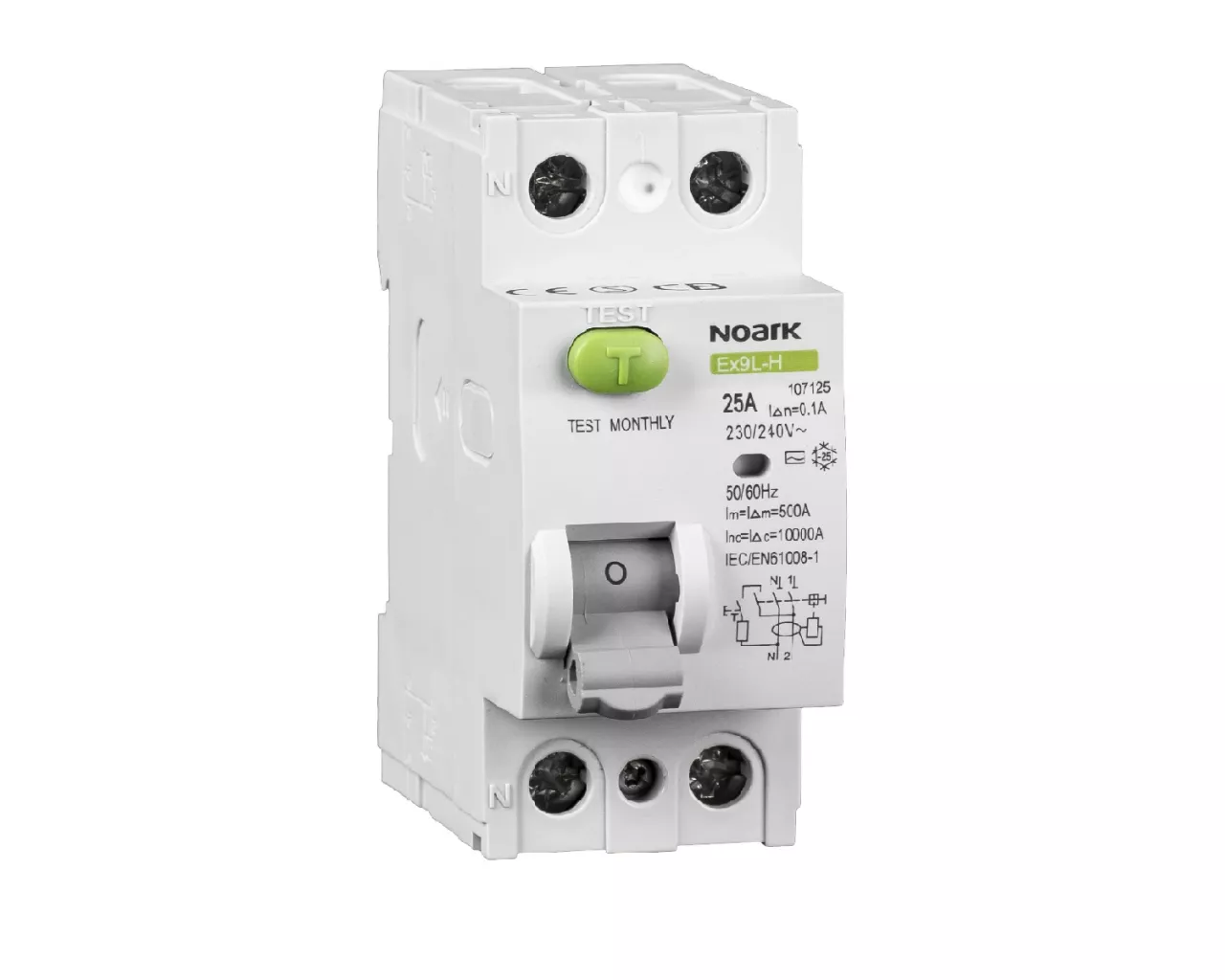

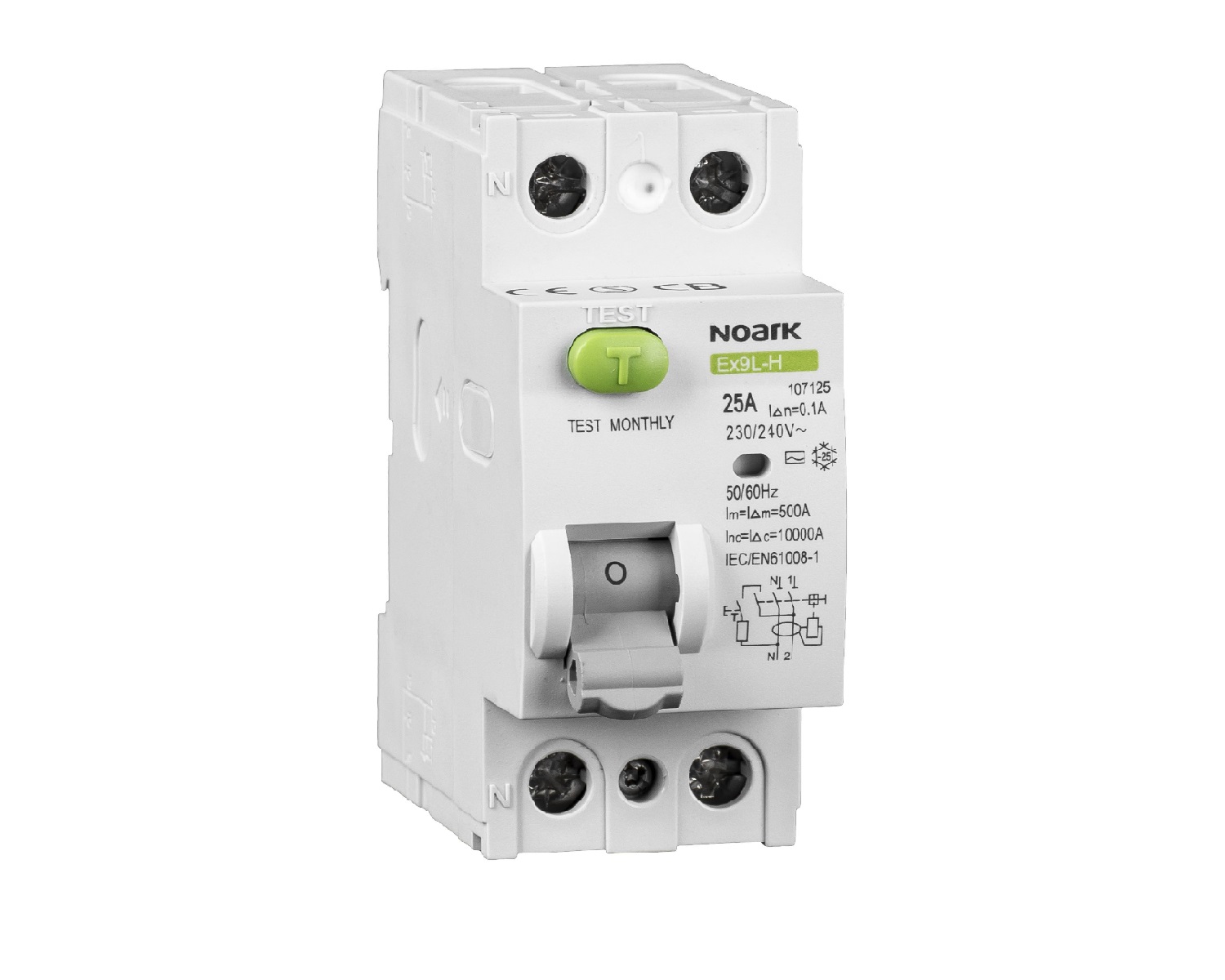

Ex9L-H 2P 25A 10mA Wył. różn., Icn=10kA, 2-bieg., In=25A, IΔn=10mA, typ AC
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 108157 |
| GTIN(EAN) | 8592765081575 |
| Price unit | piece |
| Catalog price | 291,67 zł (237,13 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Residual current circuit breaker (RCCB) |
| Number of poles: | 2 |
| Rated voltage: | 230 V |
| Rated current: | 25 A |
| Rated fault current: | 0.01 A |
| Mounting method: | DIN rail |
| Leakage current type: | AC |
| Selective protection: | no |
| Short-circuit breaking capacity (Icw): | 10 kA |
| Surge current capacity: | 3 kA |
| Frequency: | 50 Hz |
| Additional equipment possible: | no |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 79 mm |
| Short-time delayed tripping: | no |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 6 kV |
| Power loss: | 3.4 W |
| Voltage type: | AC |
| With interlocking device: | no |
| Ambient temperature during operating: | -25 - 40 °C |
| Pollution degree: | 2 |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| RAL-number (similar): | 7035 |
| Explosion-proof: | no |
