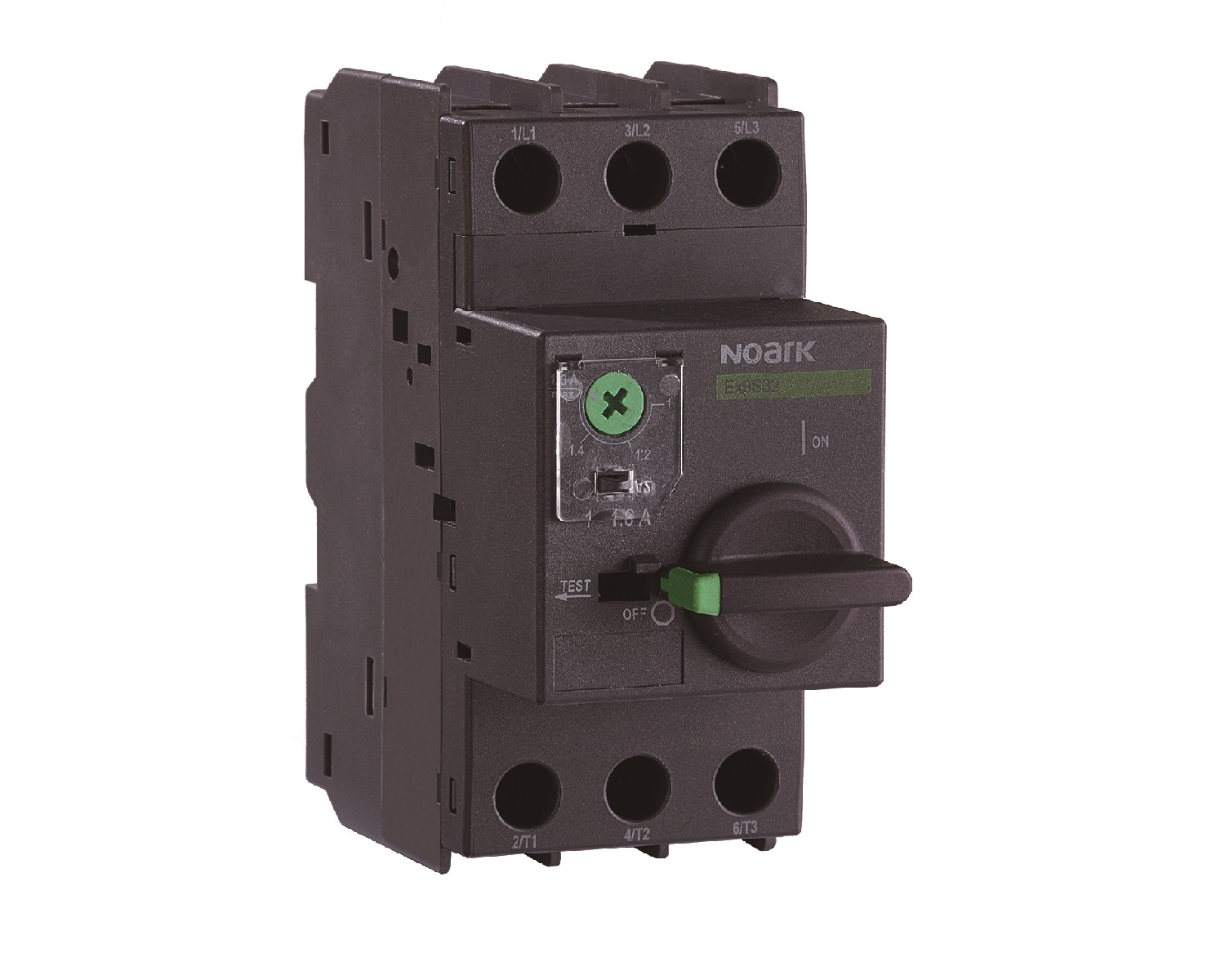

Ex9S32A 23A Wyłącznik silnikowy 23A
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 108108 |
| GTIN(EAN) | 8592765081087 |
| Price unit | piece |
| Catalog price | 273,16 zł (222,08 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| Net weight: | 325 g |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 17 - 23 A |
| Phase failure sensitive: | yes |
| Switch off technique: | Thermomagnetic |
| Rated operating voltage: | 400 - 690 V |
| Rated permanent current Iu: | 23 A |
| Rated operation power at AC-3, 230 V: | 5.5 kW |
| Rated operation power at AC-3, 400 V: | 11 kW |
| Type of electrical connection of main circuit: | Frame clamp |
| Type of control element: | Turn button |
| Device construction: | Complete device in housing |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
| Degree of protection (IP): | IP20 |
| Height: | 97 mm |
| Width: | 45 mm |
| Depth: | 98 mm |
| Power loss: | 12.6 W |
