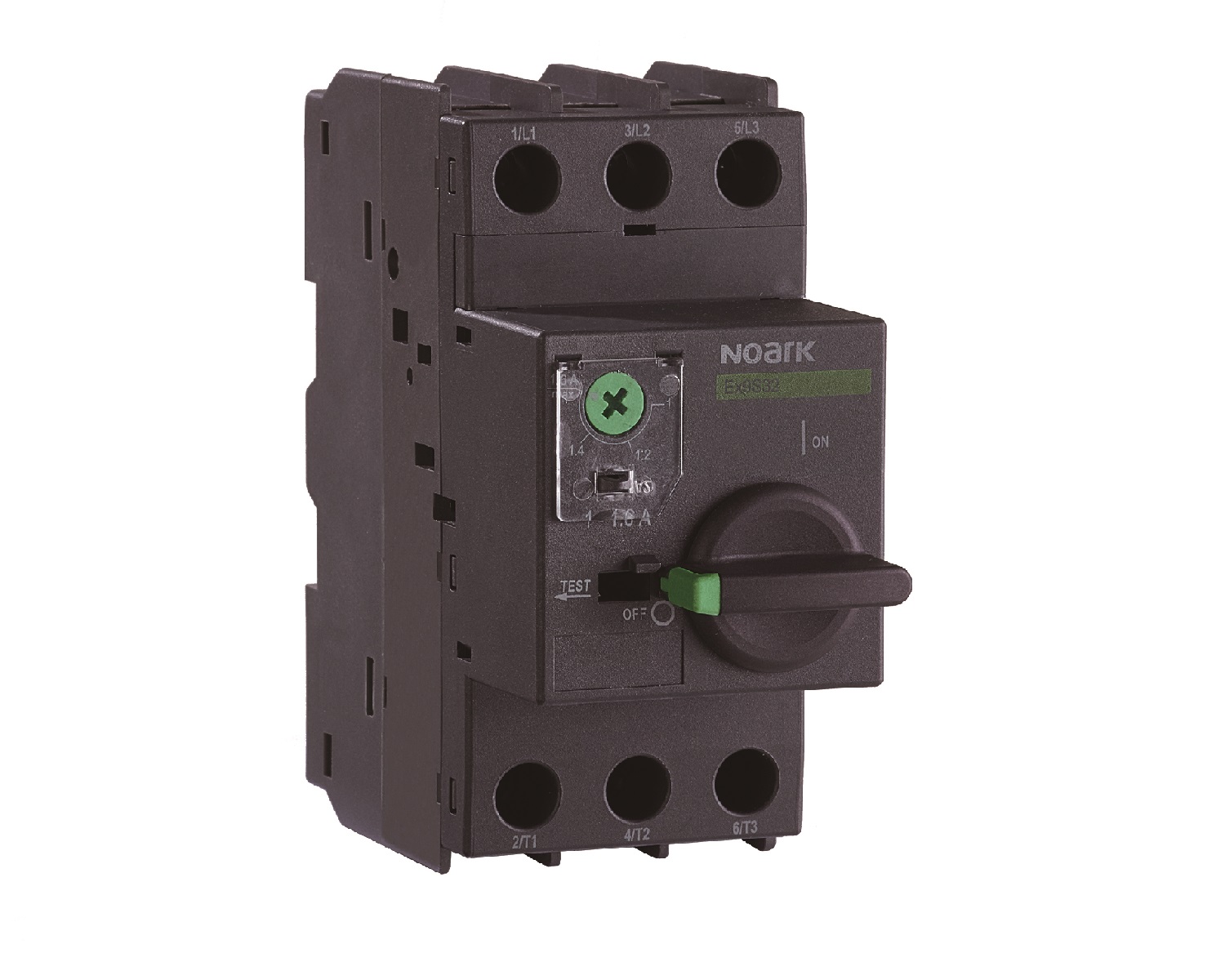

Ex9S32A 6.3A Wyłącznik silnikowy 6.3A
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 108104 |
GTIN(EAN) | 8592765081049 |
Price unit | piece |
Catalog price | 246,30 zł (200,24 zł + 23% VAT) |
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 325 g |
ETIM class: | Motor protection circuit-breaker |
Overload release current setting: | 4 - 6.3 A |
Phase failure sensitive: | yes |
Switch off technique: | Thermomagnetic |
Rated operating voltage: | 400 - 690 V |
Rated permanent current Iu: | 6.3 A |
Rated operation power at AC-3, 230 V: | 1.5 kW |
Rated operation power at AC-3, 400 V: | 2.2 kW |
Type of electrical connection of main circuit: | Frame clamp |
Type of control element: | Turn button |
Device construction: | Complete device in housing |
With integrated auxiliary switch: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 100 kA |
Degree of protection (IP): | IP20 |
Height: | 97 mm |
Width: | 45 mm |
Depth: | 98 mm |
Power loss: | 6.3 W |
