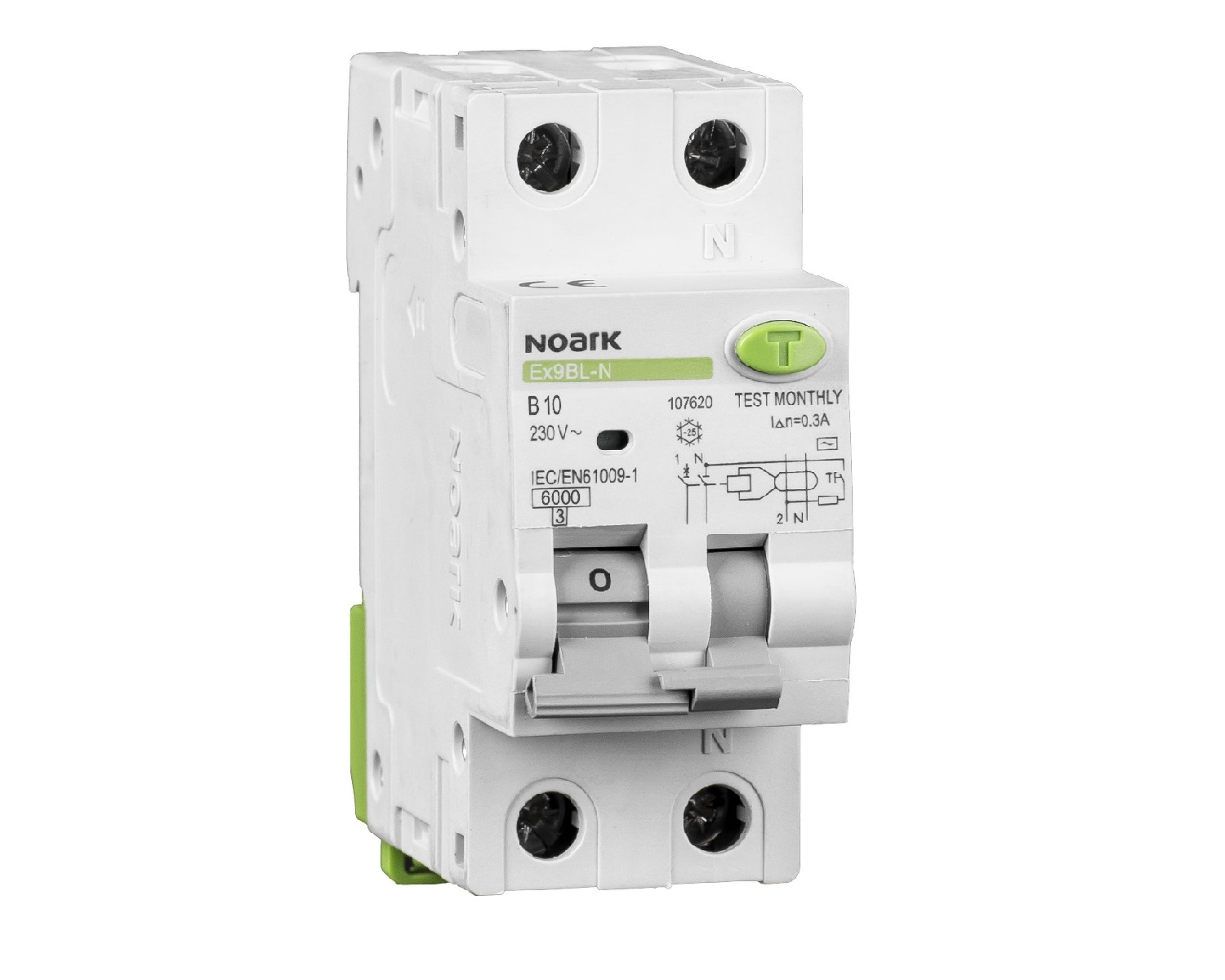

Ex9BL-N 1P+N C13 A 100mA Wył. różn. z zabezp. nadpr., Icn=6kA, 1+Nbieg, char. C, In=13A, IΔn=100mA, typ A
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 107677 |
| GTIN(EAN) | 8592765076786 |
| Price unit | piece |
| Catalog price | 410,86 zł (334,03 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Earth leakage circuit breaker |
| Number of poles (total): | 2 |
| Number of protected poles: | 1 |
| Rated voltage: | 230 V |
| Rated current: | 13 A |
| Rated fault current: | 0.1 A |
| Leakage current type: | A |
| Current limiting class: | 3 |
| Frequency: | 50/60 Hz |
| Release characteristic: | C |
| Concurrently switching neutral conductor: | yes |
| Over voltage category: | 3 |
| Pollution degree: | 2 |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 77 mm |
| Degree of protection (IP): | IP20 |
| Surge current capacity: | 3 kA |
| Voltage type: | AC |
| Anti-nuisance tripping version: | no |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Power loss: | 3.5 W |
