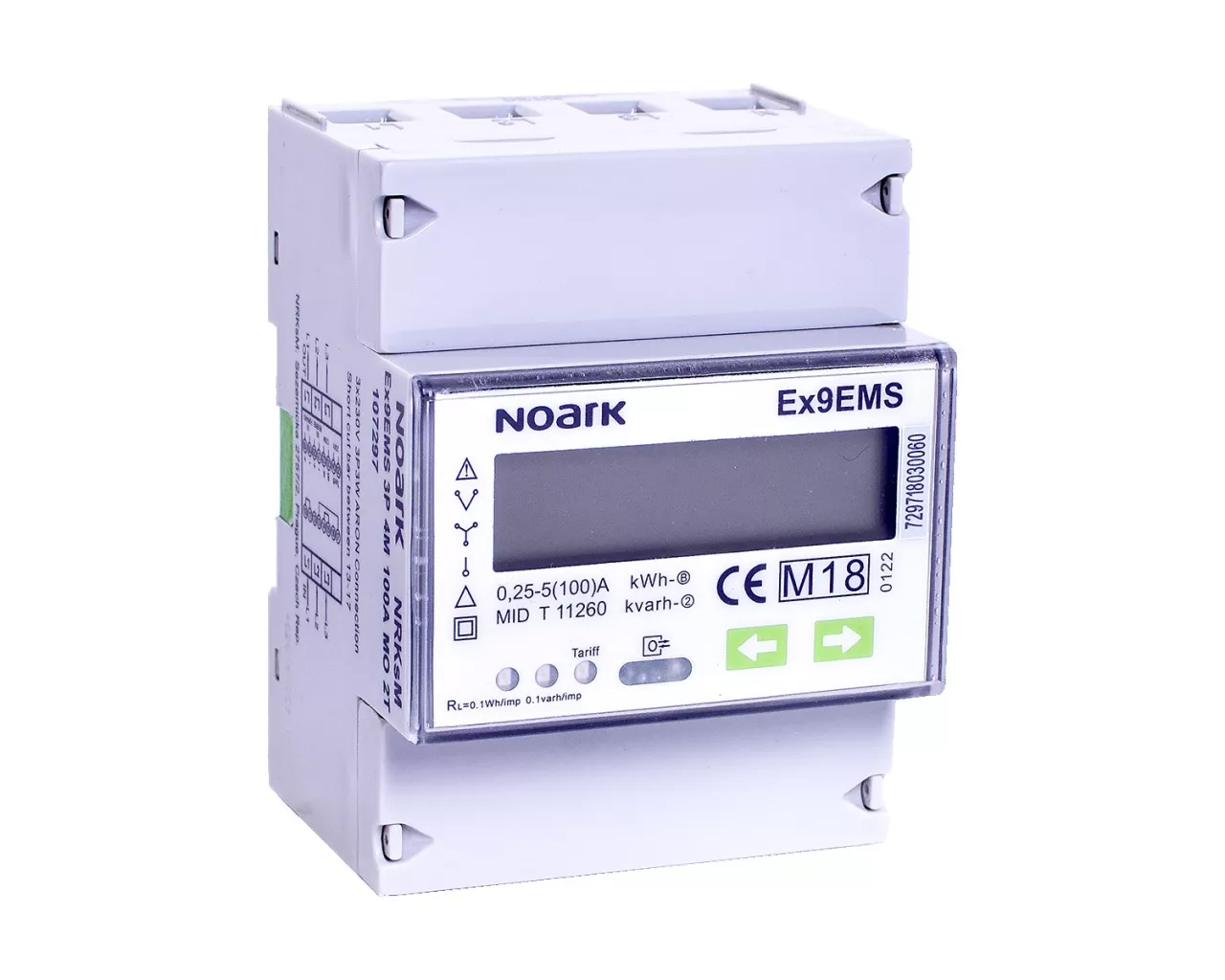

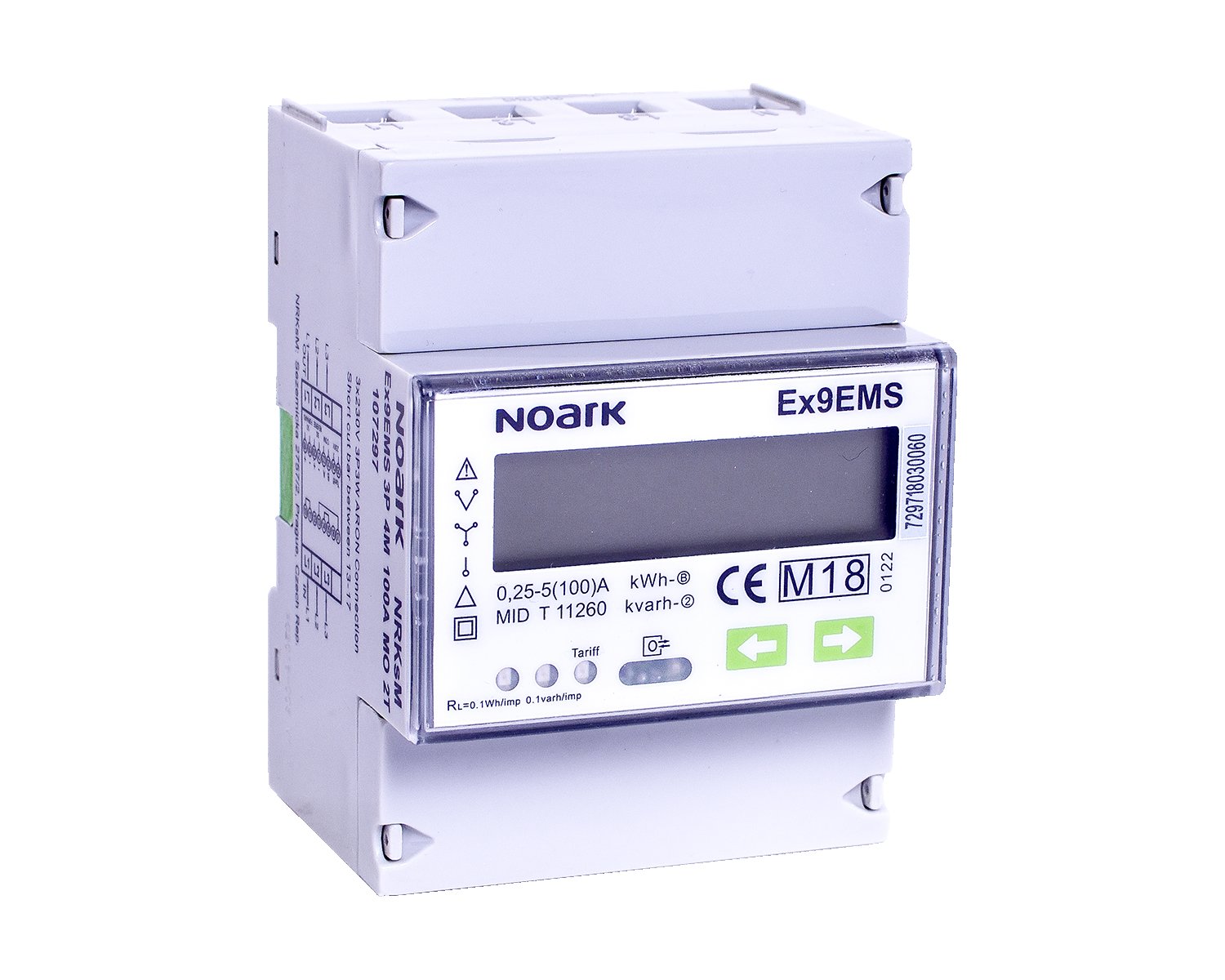

Ex9EMS 3P 4M 100A MO 2T Inteligentny licznik energii 3-fazowy, 4-modułowy, 100A, komunikacja ModBus, dwutaryfowy, wyświetlacz LCD, MID
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 107297 |
GTIN(EAN) | 8592765072979 |
Price unit | piece |
Catalog price | 1 166,54 zł (948,41 zł + 23% VAT) |
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
ETIM class: | Kilowatt-hour meter |
Type of meter: | Electronic |
Nominal current (In): | 100 A |
Max. current (Imax): | 100 A |
Frequency: | 45 - 60 Hz |
Accuracy class: | B |
Pole type: | Three conductor |
Model: | Direct measurement |
Energy type: | Effective power |
Suitable for: | Purchase/supply |
Tariff type: | Two-tariff |
Tariff control: | External |
Measurement type load profile: | no |
Escapement mechanism: | no |
Calibrated: | yes |
Approval: | Measuring Instruments Directive |
Pulse output: | Electrical |
Pulse type: | S0 |
Type of indication: | Digital |
Mounting method: | DRA (DIN-rail adapter) |
Width in number of modular spacings: | 4 |
Type of interface: | Modbus |
EEC40 signature: | no |
With lock code: | yes |
Number of positions total (counter): | 3 |
Degree of protection (IP): | IP50 |
Power consumption: | 30 W |
Pulse rate: | 0.01 - 10000 Imp/kWh (kvarh) |
Width: | 70 mm |
Depth: | 63 mm |
Height: | 92.4 mm |
