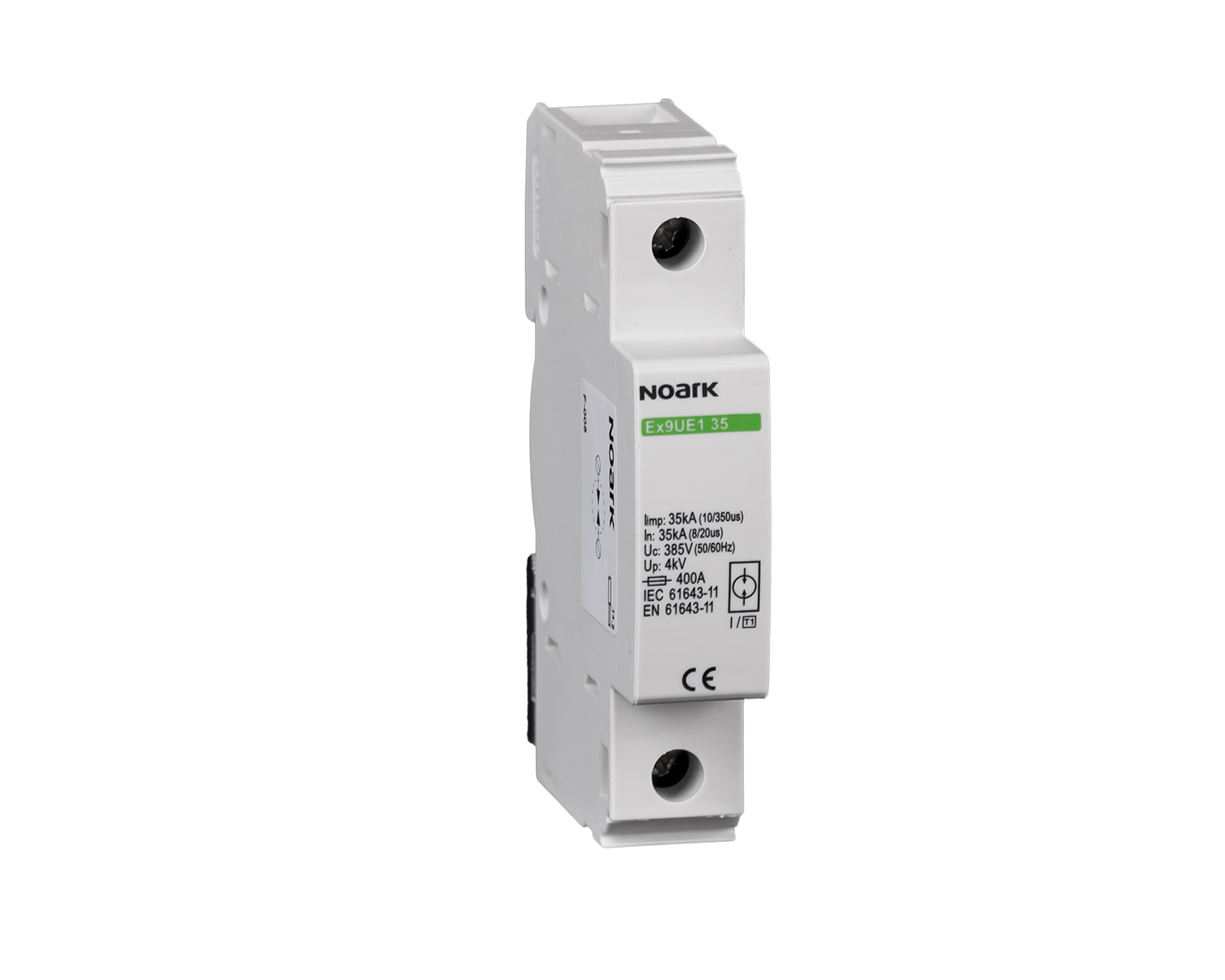

Ex9UE1 35 1P 350 Ogr. przep., typ I, 385 V AC, 35 kA, 1-bieg.
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 107115 |
GTIN(EAN) | 8592765071163 |
Price unit | piece |
Catalog price | 2 118,11 zł (1 722,04 zł + 23% VAT) |
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 170 g |
ETIM class: | Lightning current arrester for power supply systems |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN: | yes |
System configuration TN-C: | yes |
System configuration TN-C-S: | yes |
System configuration TN-S: | no |
System configuration TT: | no |
System configuration other: | no |
Lightning impulse current (10/350 µs): | 35 kA |
Nominal discharge surge current (8/20): | 35 kA |
Max. continuous voltage AC: | 385 V |
Nominal voltage AC: | 385 V |
Voltage protection level: | 1.5 kV |
Voltage protection level L-N: | 4 kV |
Follow current extinguishing capability: | 1.5 kA |
Specific energy (W/R): | 306 kJ/Ω |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 1 modular spacing |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 35 mm² |
With remote signalling contact: | no |
Exhausting: | no |
Signalling at the device: | None |
Category type 1: | yes |
Integrated backup fuse: | no |
Suitable for outdoor use: | no |
