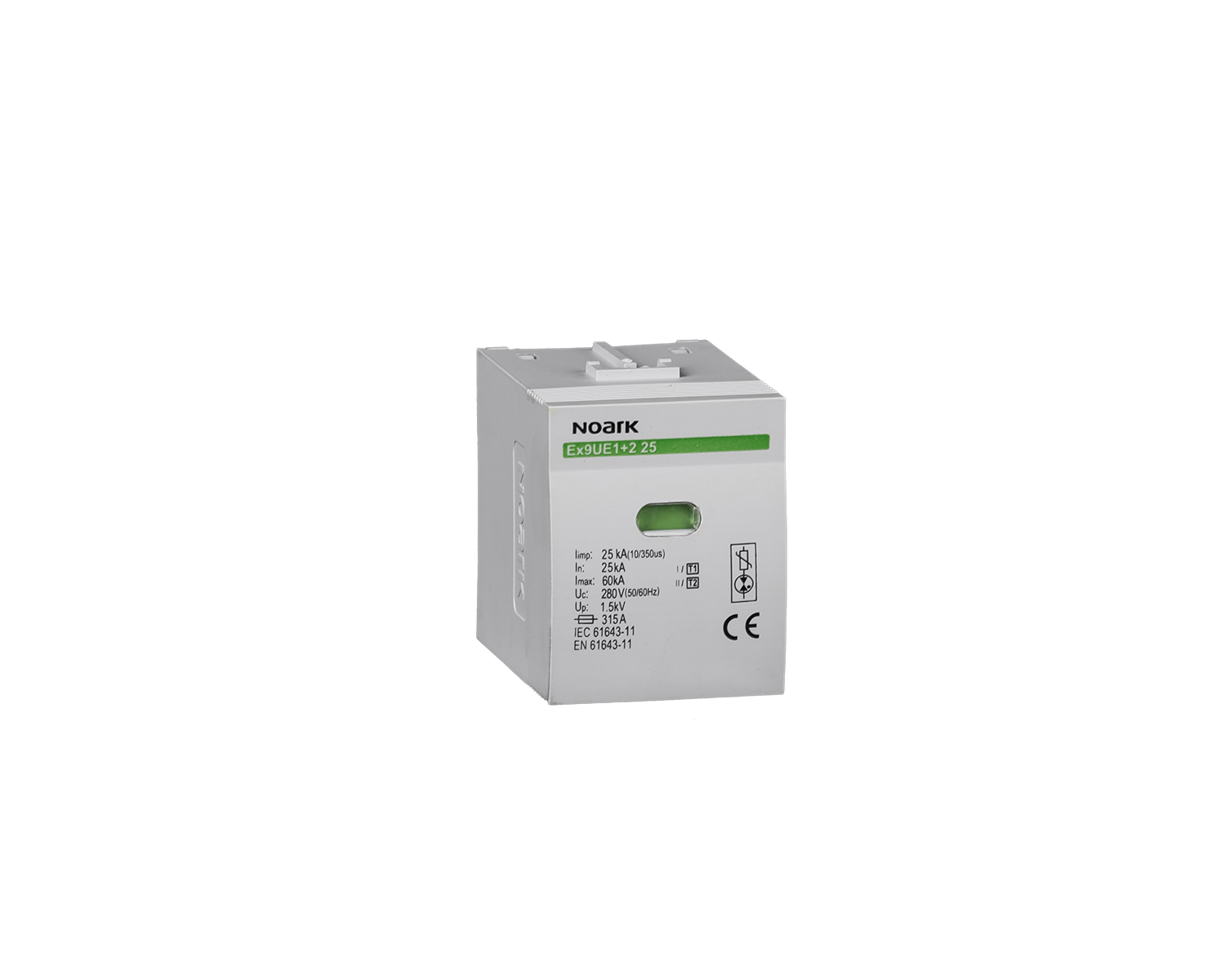

Ex9UE1+2 25 1P 280 M Wkładka do Ex9UE1+2, 280 V AC, 25 kA, 1-bieg.
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 105495 |
| GTIN(EAN) | 8592765054968 |
| Price unit | piece |
| Catalog price | 1 129,55 zł (918,33 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Combined arrester for power supply systems |
| System configuration DC: | no |
| System configuration IT: | yes |
| System configuration TN: | yes |
| System configuration TN-C: | yes |
| System configuration TN-C-S: | yes |
| System configuration TN-S: | yes |
| System configuration TT: | yes |
| System configuration other: | no |
| Number of poles: | 1 |
| Lightning impulse current (10/350 µs): | 25 kA |
| Max. continuous voltage AC: | 280 V |
| Nominal voltage AC: | 280 V |
| Voltage protection level L-N: | 1.5 kV |
| Voltage protection level N-PE: | 1.5 kV |
| Specific energy (W/R): | 156 kJ/Ω |
| Max. conductor cross section solid (solid, stranded): | 50 mm² |
| Max. conductor cross section flexible (fine-strand): | 50 mm² |
| Mounting method: | On basic element |
| Construction size: | 2 modular spacing |
| Remote signalling: | no |
| Signalling at the device: | Optical |
| Test class: | Type 1 + 2 |
| Integrated backup fuse: | no |
| Energy-coordinated protection effect with regard to the terminal equipment: | no |
| Degree of protection (IP): | IP20 |
